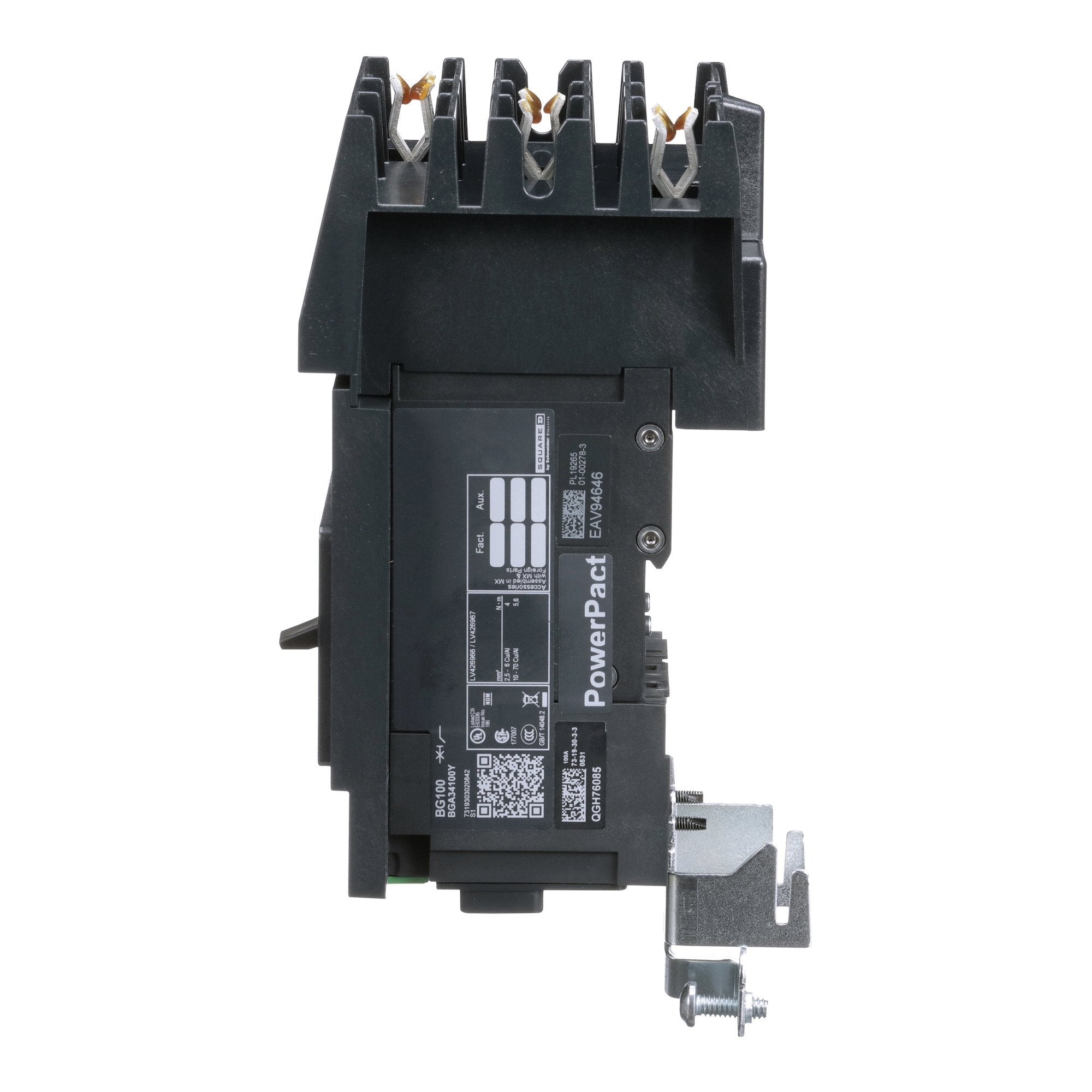

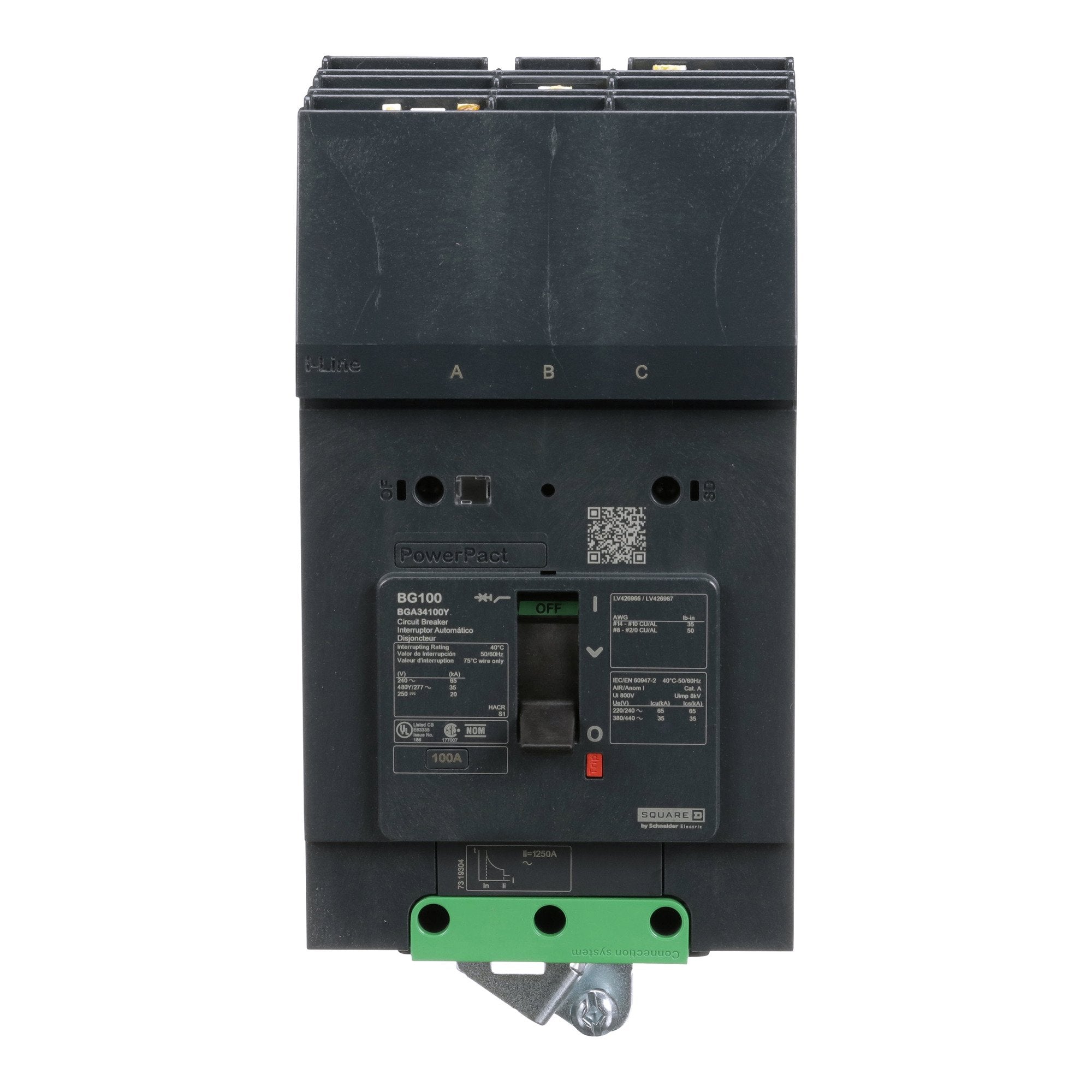

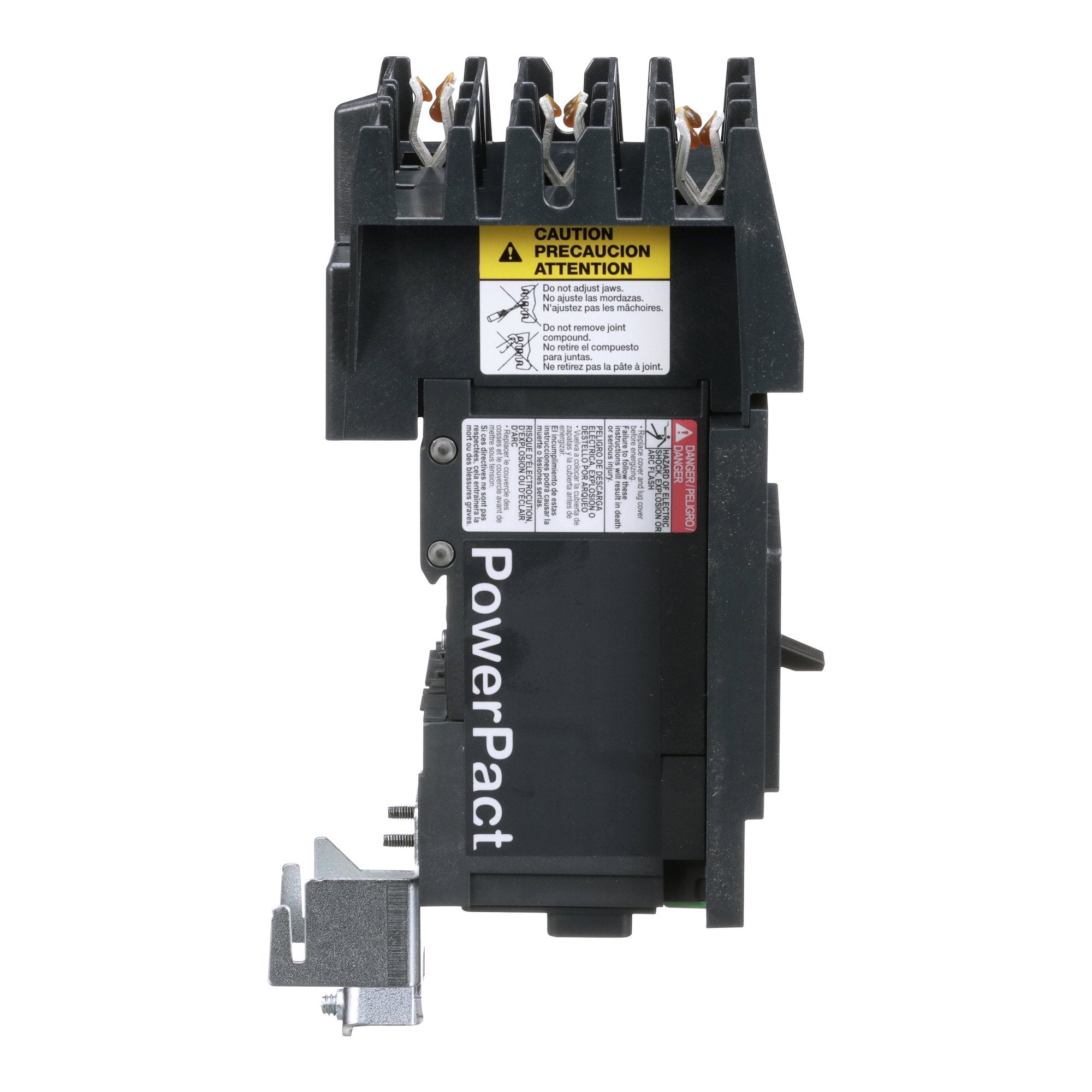

Square D BGA34100Y Circuit breaker, Powe 100A 3 Pole 480Y/277VAC 35kA

Product Description

Square D BGA34100Y is a circuit breaker that provides thermal-mechanical protection in a compact design. This PowerPacT B-Frame circuit breaker features thermal magnetic protection and a breaking capacity of thirty-five kA at four hundred eighty volts Y/two hundred seventy-seven volts AC. It is equipped with dual-break rotating contacts that help minimize peak current during a short circuit. The breaker includes a push-to-trip button for manual tripping and is available in various pole configurations, allowing for flexibility in different applications.

• Breaking capacity of 35kA at 480Y/277VAC
• Thermal magnetic circuit protection
• Compliance with UL, CSA, NOM, and IEC standards

Product Highlights

This PowerPacT B, 100 Amp, 3 pole circuit breaker ensures reliable performance in power distribution systems.

Product Information

Standard Information

• Catalog Number: BGA34100Y
• Brand: Square D

Technical Specifications

• Amperage: 100 Amp
• Voltage: 525 Volt
• Number of Poles: 3 Pole
• Height: 4.49 inches
• Width: 3.19 inches
• Depth: 3.50 inches
• Weight: 2.90 lb
• Country of Origin: Mexico
