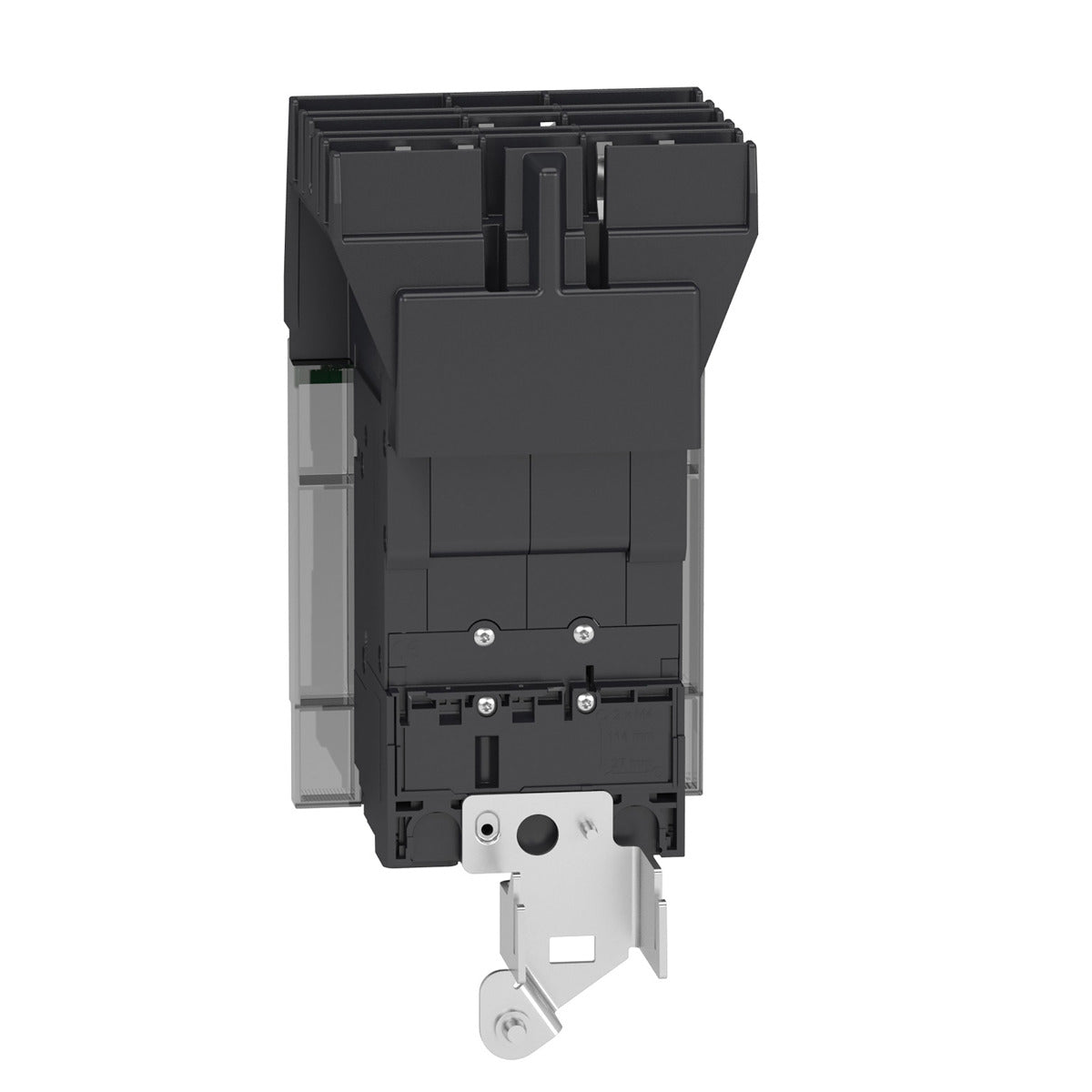

Square D BGA34015Y Circuit breaker PowerPacT B 15A 3 pole 480Y/277VAC 35kA I-Line

Product Description

The Square D BGA34015Y circuit breaker features a compact design that provides thermal and mechanical protection. This device is ideal for various applications requiring circuit protection. It has a breaking capacity of thirty-five kiloamperes at four hundred eighty volts, three-phase, and two hundred seventy-seven volts. Key features include:

• Durable dual-break rotating contacts for reduced peak current during faults.
• Integral push-to-trip button for manual operation of the circuit breaker.
• I-Line mount construction that facilitates efficient connections.

Product Highlights

This 15 ampere, three-pole circuit breaker complies with UL, CSA, and IEC standards, making it suitable for many electrical installations.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: BGA34015Y
• Voltage: 525 volts
• Amperage: 15 amps
• Breaking Capacity: 35 kA
• Number of Poles: 3
• Height: 4.49 inches
• Width: 3.19 inches
• Depth: 3.50 inches
• Weight: 2.90 pounds
• Country of Origin: Mexico
• Compliance Standards: UL, CSA, NOM, IEC
• Storage Temperature: -50 to 85 degrees C
