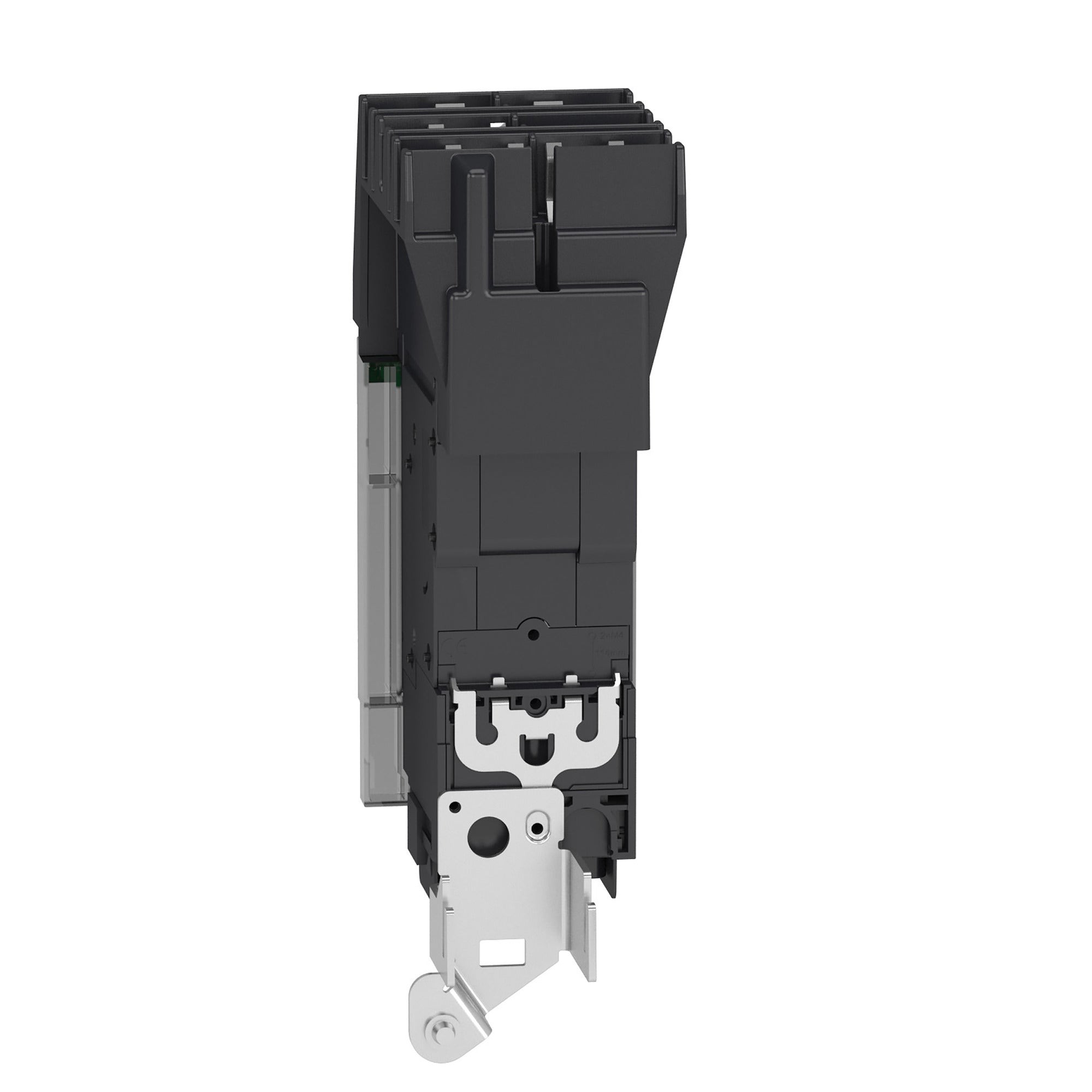

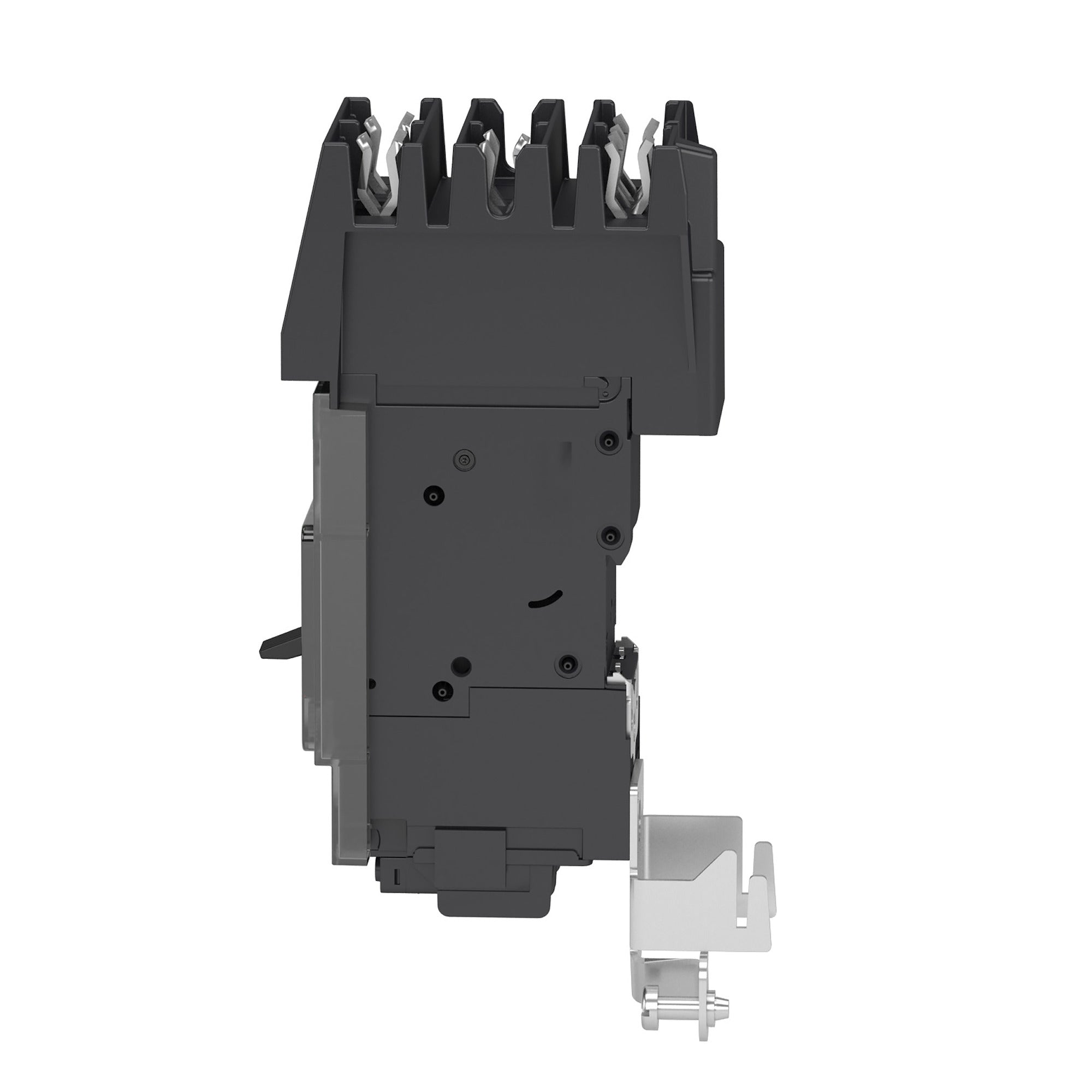

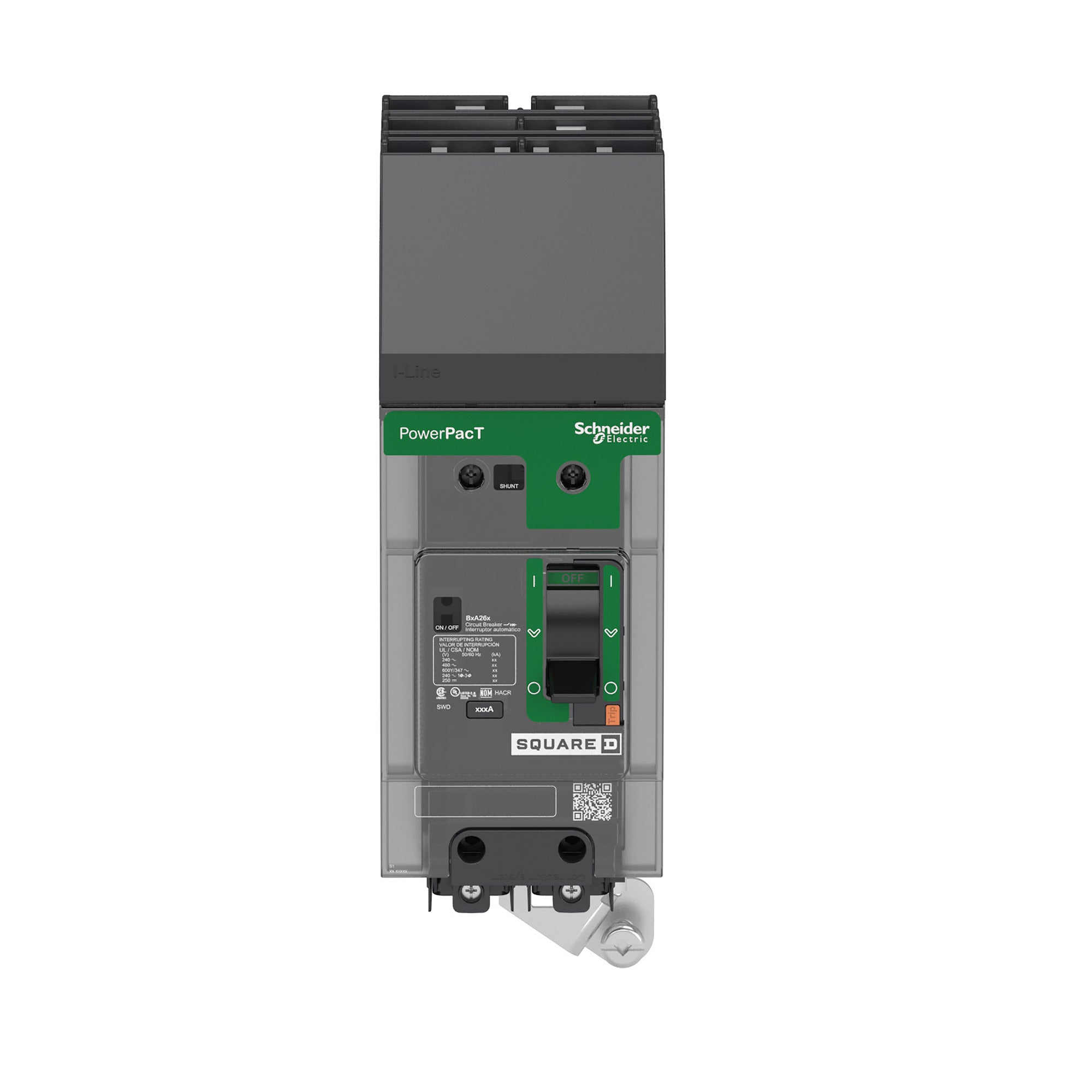

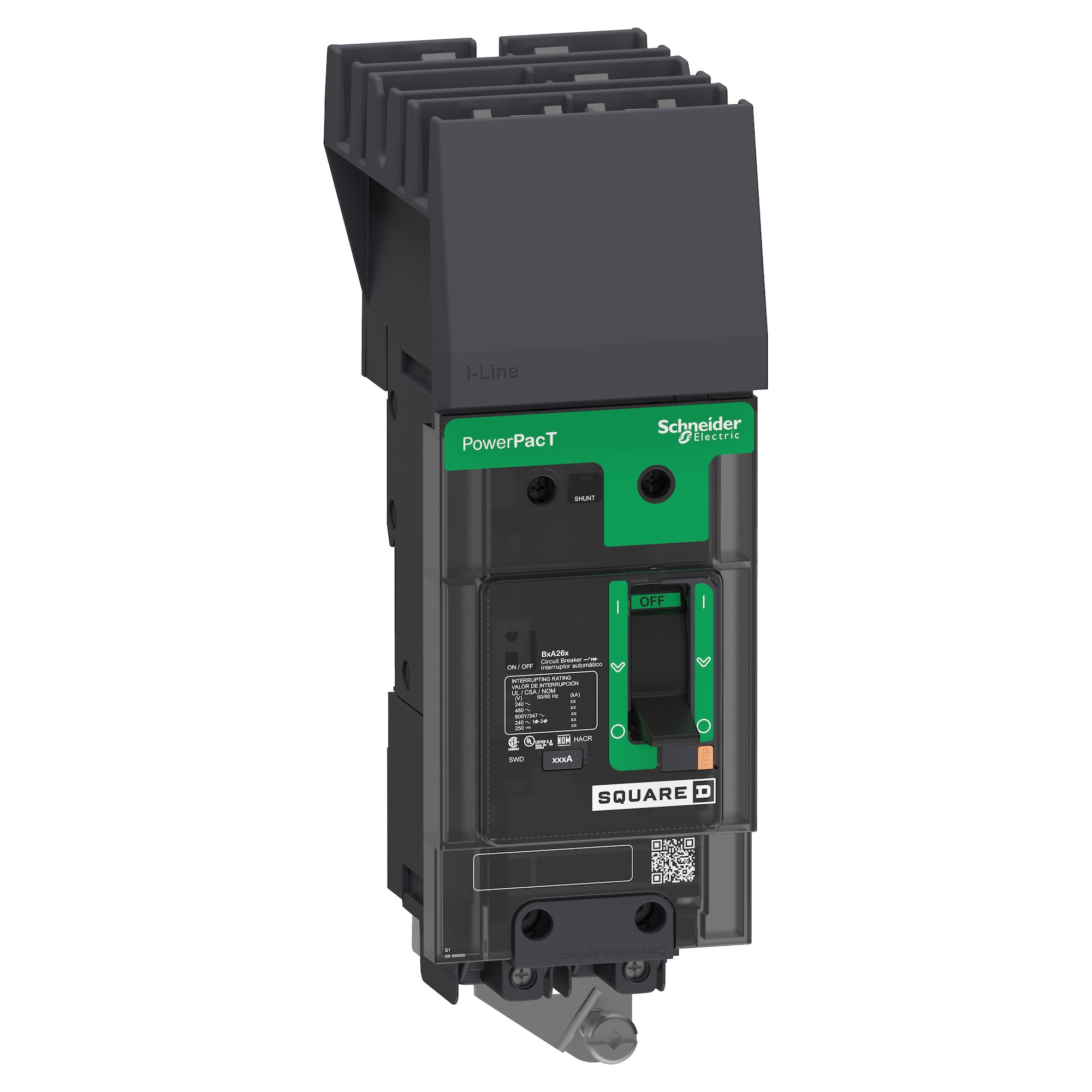

Square D BGA260402 Circuit Breaker PowerPacT B 40A 2 Pole 600Y/347VAC 18kA I-Line Thermal Magnetic 80% AC

Product Description

Square D offers the BGA260402 circuit breaker as part of its PowerPacT B-Frame line. This circuit breaker is designed for thermal and magnetic protection in electrical systems. It provides a breaking capacity of 18kA at 600Y/347VAC. The dual-break rotating contacts reduce peak current during short circuit faults, ensuring safety and reliability.

• Thermal magnetic circuit protection
• Continuous current rating of 80%
• Suitable for I-Line and unit mount construction

Product Highlights

The PowerPacT B series is known for its compact design and extensive accessory options. It comes with an integral push-to-trip button for manual tripping and can be used in various configurations.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: BGA260402
• Country of Origin: Mexico
• Continuous Current Rating: 80%
• Breaking Capacity: 18kA
• Voltage Rating: 600Y/347VAC
• Pole Count: 2
• Standards Compliance: UL, CSA, NOM, IEC
• CE Marked: Yes
