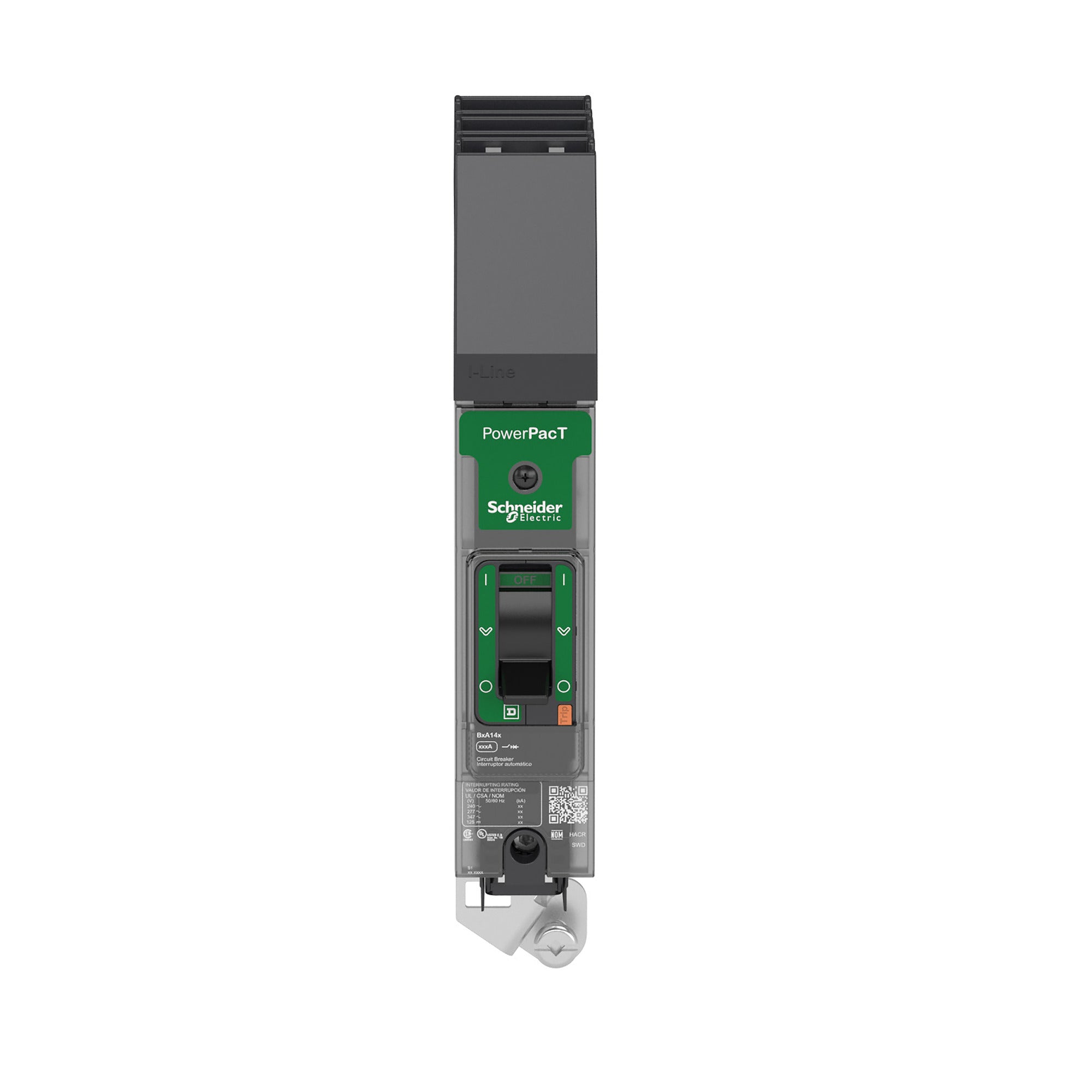

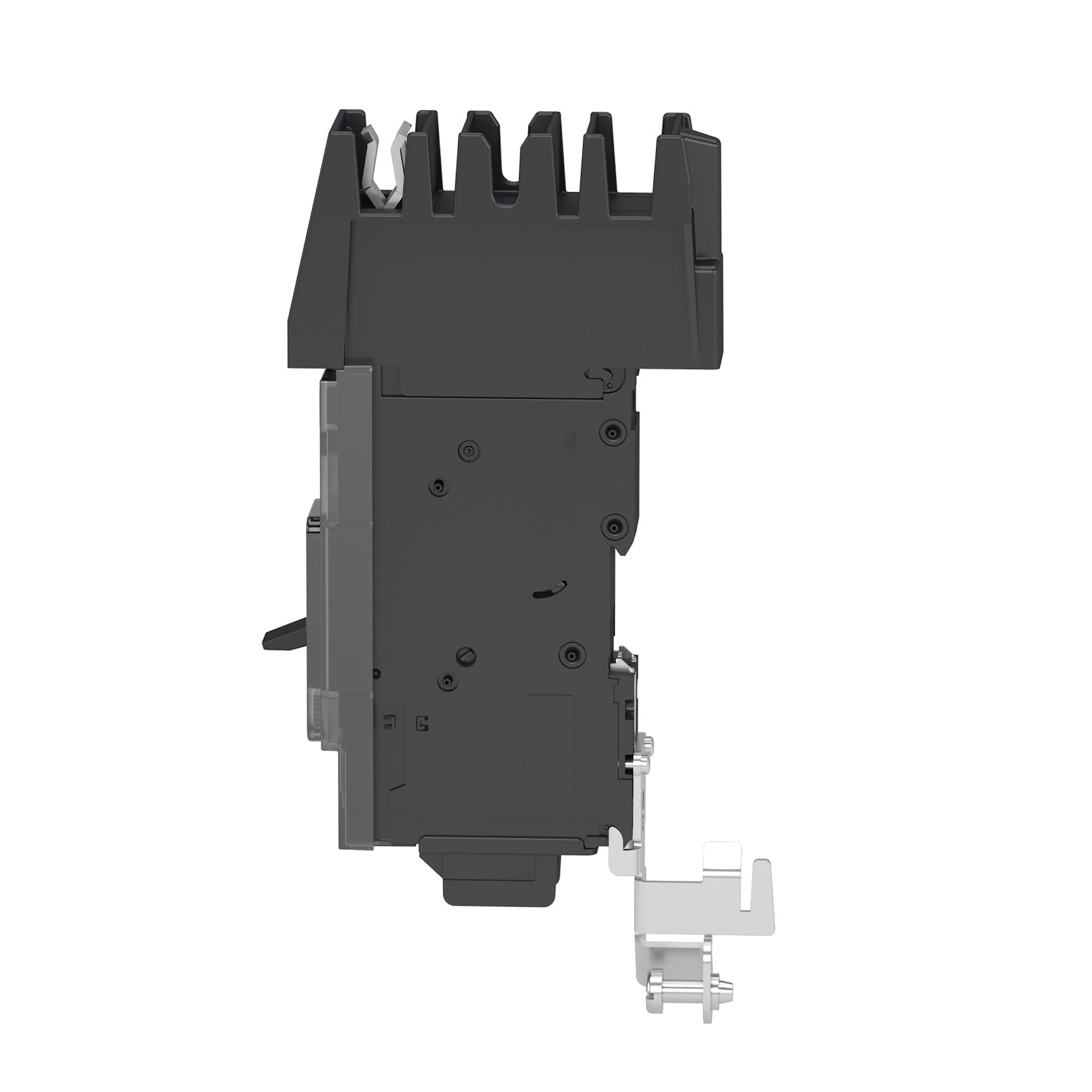

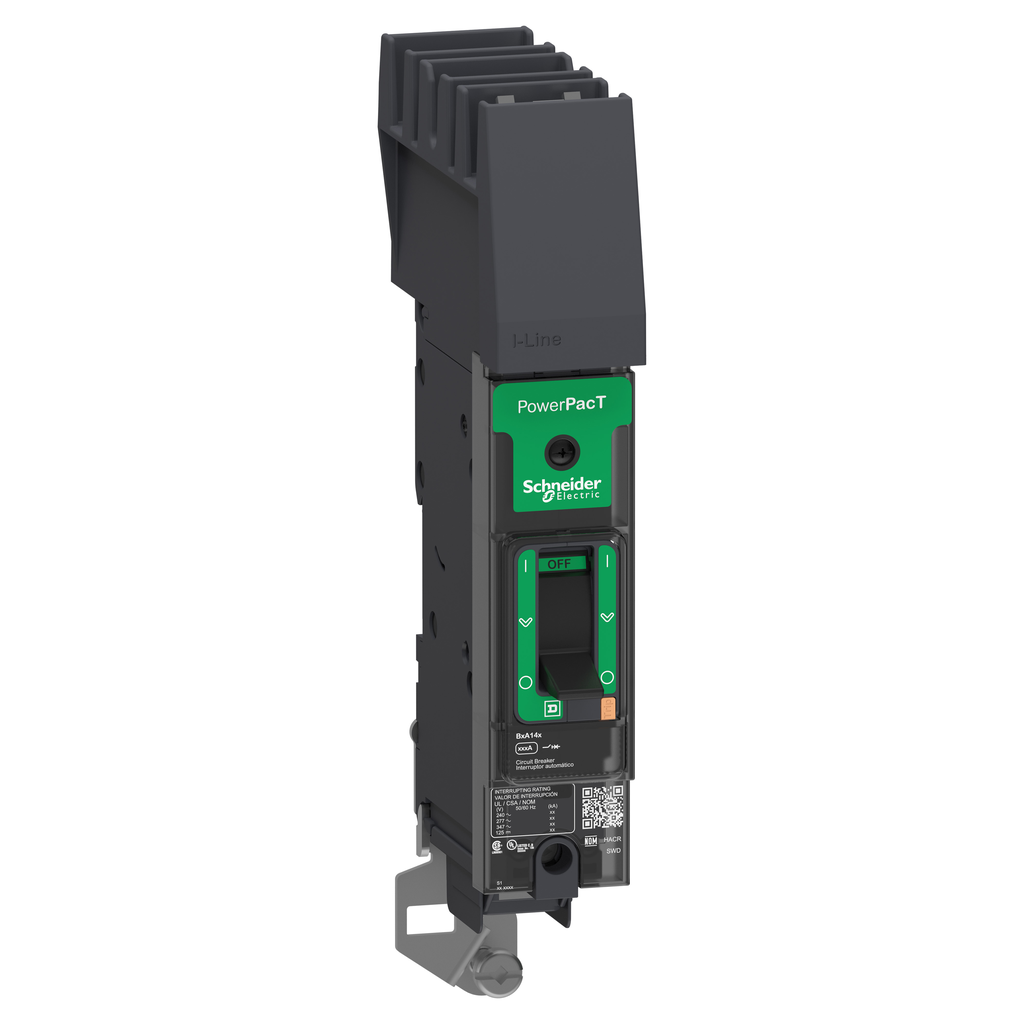

Square D BGA160301 Circuit Breaker, PowerPacT B, 30A, 1 pole, 600Y/347VAC, 18kA

Product Description

The Square D BGA160301 is a PowerPacT B-Frame circuit breaker designed to provide thermal-mechanical protection in compact configurations. It offers a breaking capacity of 18kA at 600Y/347VAC. This circuit breaker features dual-break rotating contacts that help minimize the peak current during short circuit events. The design includes an integral push-to-trip button to facilitate manual tripping.

• Compact design for thermal-mechanical circuit protection
• 18kA breaking capacity at 600Y/347VAC
• Dual-break rotating contacts

Product Highlights

The PowerPacT B-Frame is suitable for a range of applications with both I-Line and unit mount options available. It features I-Line terminations for straightforward installation and is compliant with UL, CSA, and IEC standards.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: BGA160301
• Voltage: 240 Volt
• Amperage: 30 Amp
• Number of Poles: 1 Pole
• Weight: 1.41 lb
• Dimensions: 4.33 inches (Height) x 3.54 inches (Width) x 3.50 inches (Depth)
• Mounting Type: I-Line
• Certifications: UL, CSA, NOM, IEC
