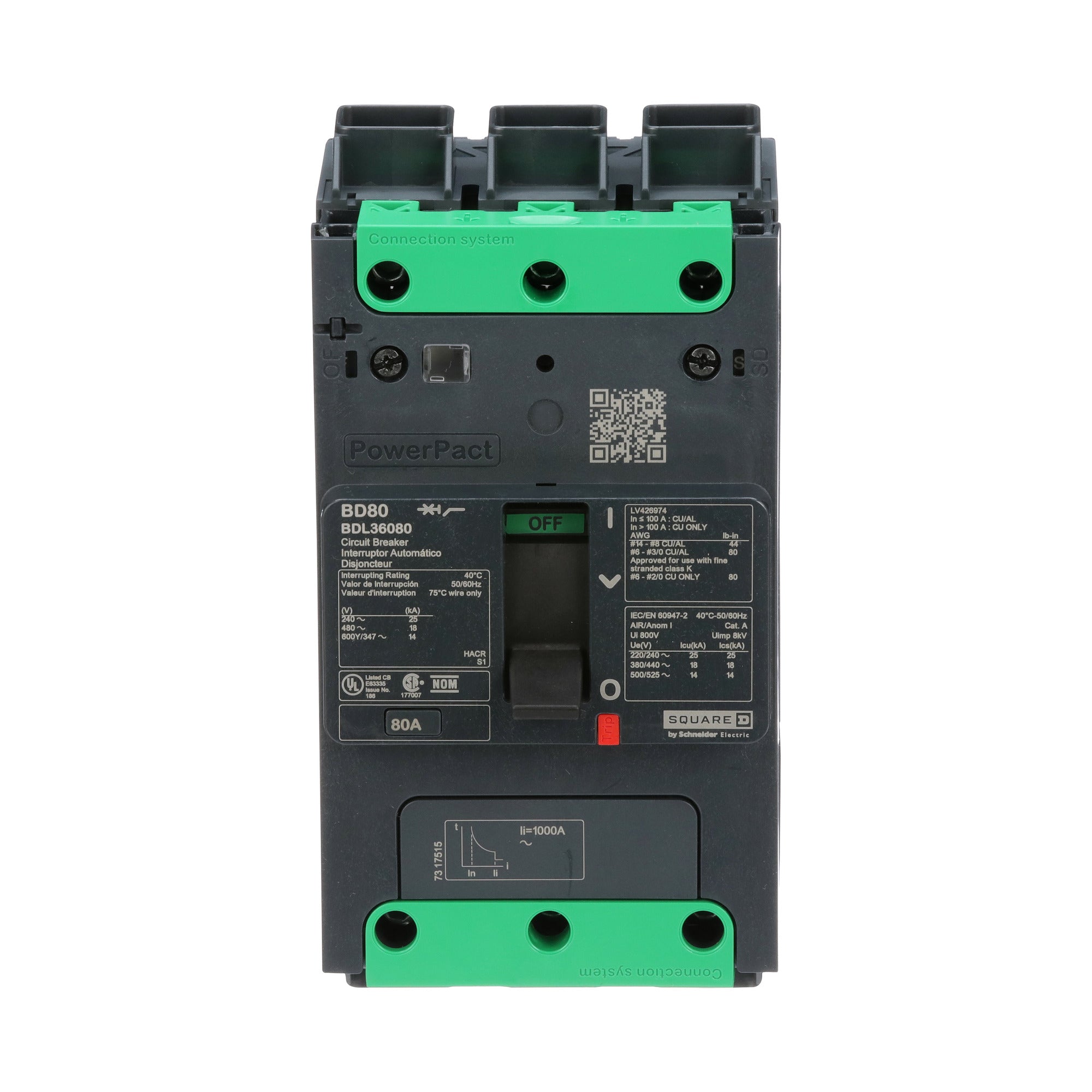

Square D BDL36080 Circuit Breaker, PowerPacT B, 80A, 3 Pole, 600Y/347VAC, 14kA

Product Description

The Square D BDL36080 circuit breaker is part of the PowerPacT B-Frame series, which provides reliable thermal-mechanical circuit protection. This breaker is designed for use in power distribution applications, offering thermal magnetic protection with a breaking capacity of 14kA at 600Y/347VAC. It features dual-break rotating contacts that help reduce peak short-circuit currents. The integral push-to-trip button allows for manual tripping of the device.

• 80A continuous current rating
• Available in 1 to 4-pole configurations
• Meets UL, CSA, NOM, and IEC standards

Product Highlights

This circuit breaker supports installation flexibility with its unit mount construction options, which include traditional back pan mounting and integrated DIN rail options. It features EverLink lugs that reduce cable loosening over time.

Product Information

Standard Information

• Brand: Square D
• MPN: BDL36080

Technical Specifications

• Catalog Number: BDL36080
• Voltage: 525 Volt
• Amperage: 80 Amp
• Number of Poles: 3 Pole
• Weight: 2.37 lb
• Dimensions: 3.15 inches (Height), 3.19 inches (Width), 3.15 inches (Depth)
• Country of Origin: Mexico
