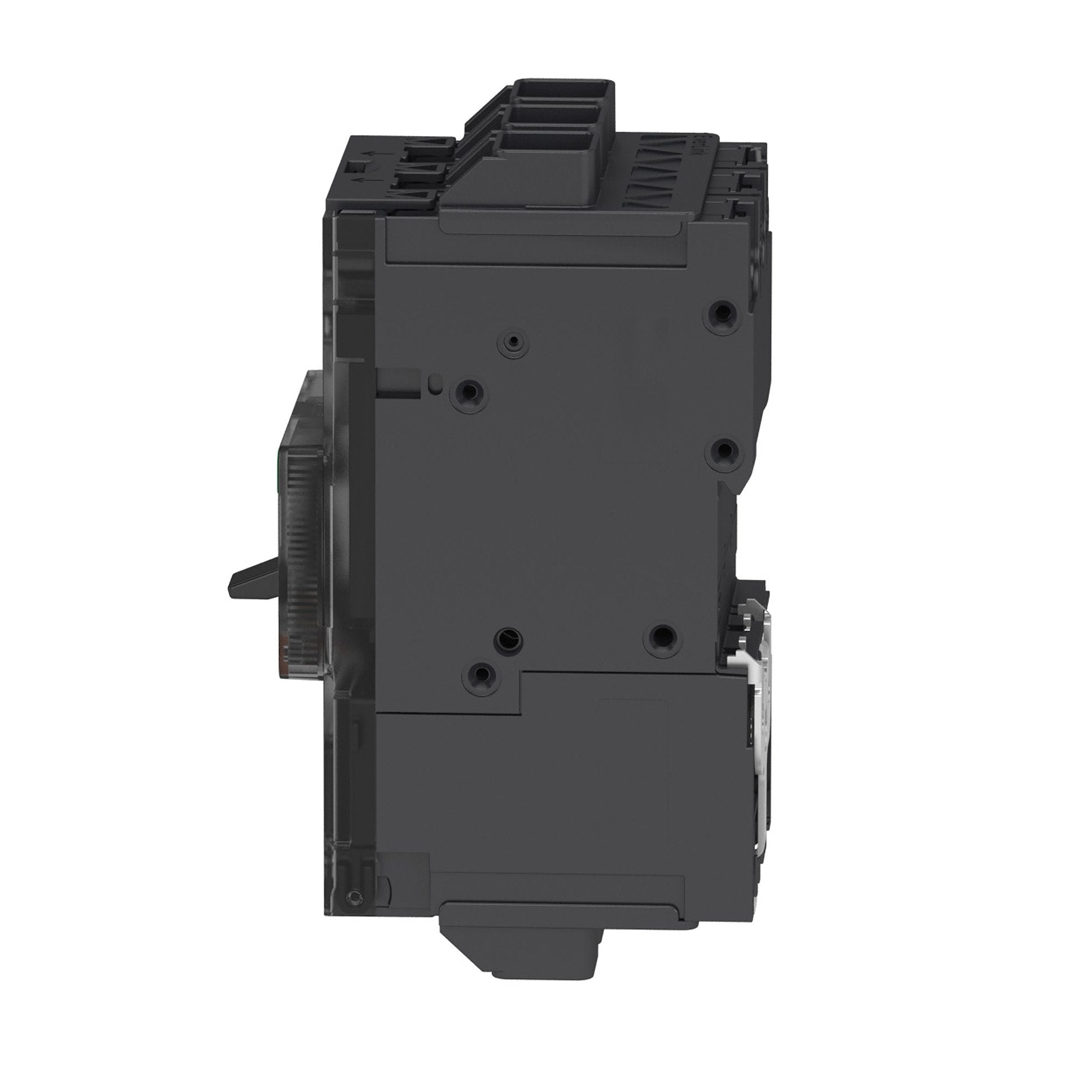

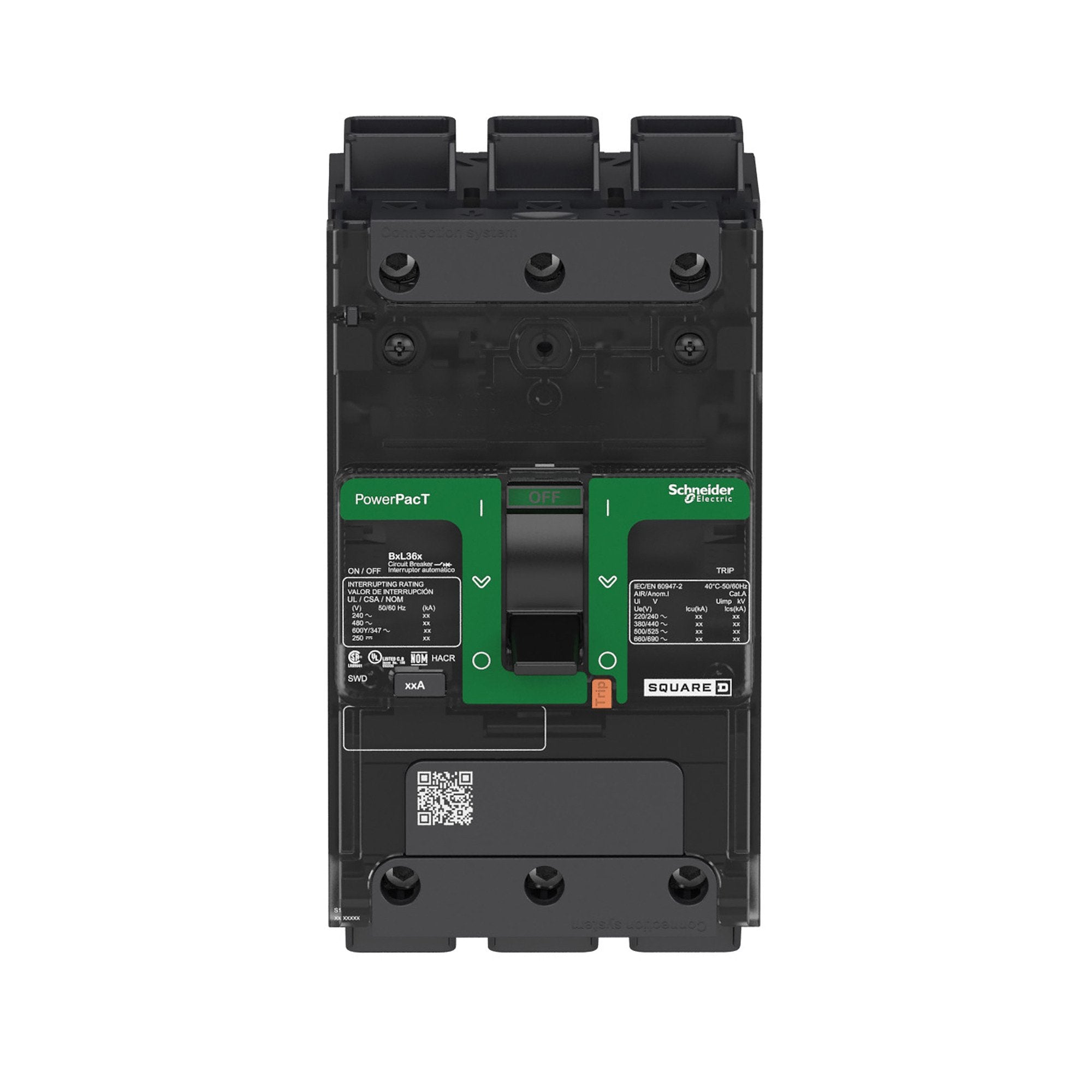

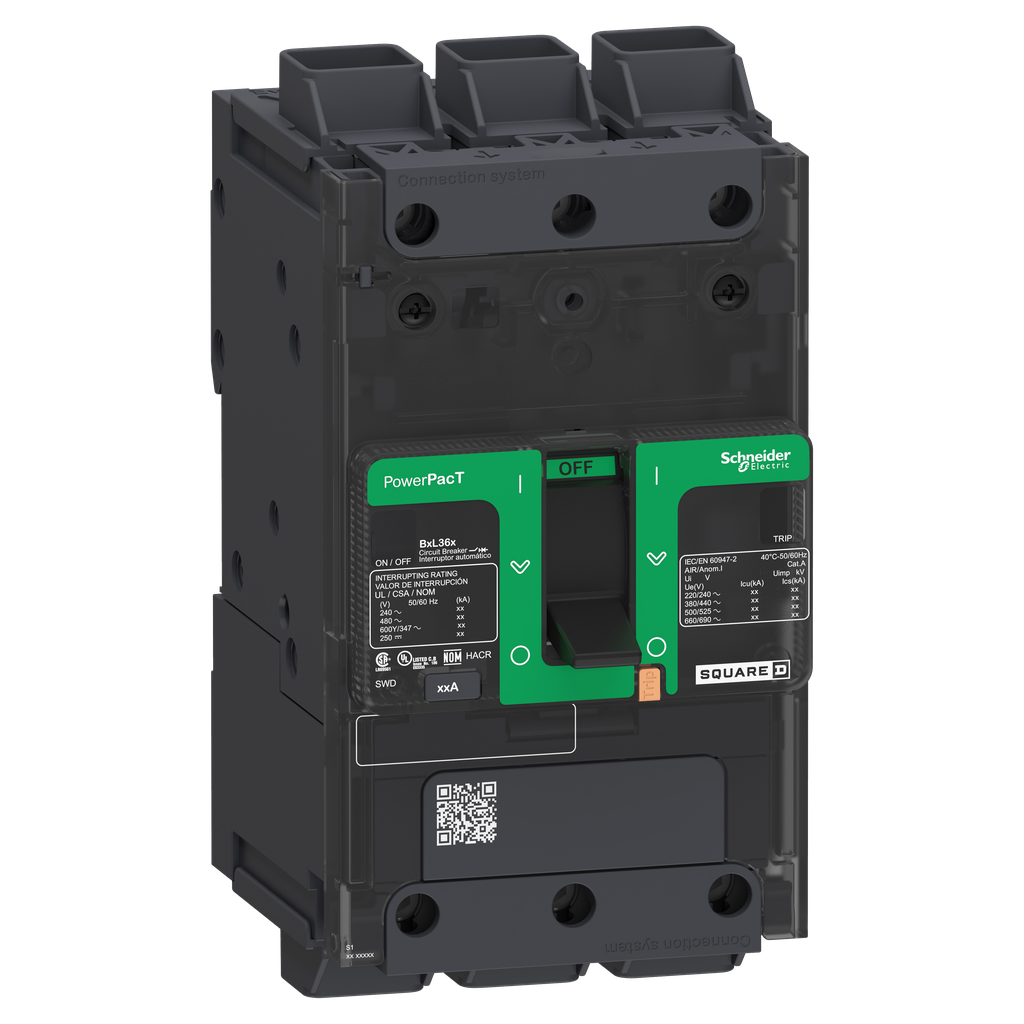

Square D BDL36030 Circuit Breaker PowerPacT B 30A 3 Pole 600Y/347VAC 14kA

Product Description

The Square D BDL36030 is a PowerPacT B-Frame circuit breaker designed for thermal-mechanical protection in a compact format. This circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600Y/347VAC. It features dual-break rotating contacts, which help to minimize peak current during short circuits. Additionally, the integral push-to-trip button allows for manual tripping of the circuit breaker.

• Provides thermal magnetic circuit protection with 14kA breaking capacity
• Features dual-break rotating contacts for reducing short circuit peak current
• Includes integrated DIN rail mounting for flexible installation options

Product Highlights

This circuit breaker is versatile for different installation needs, available in both 1 to 4-pole unit and 1 to 3-pole I-Line constructions. It has EverLink lugs to prevent loosening of cables over time, enhancing reliability.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: BDL36030
• Voltage: 525 Volt
• Amperage: 30 Amp
• Number of Poles: 3 Pole
• Weight: 2.37 lb
• Depth: 80 mm
• Width: 81 mm
• Height: 137 mm
