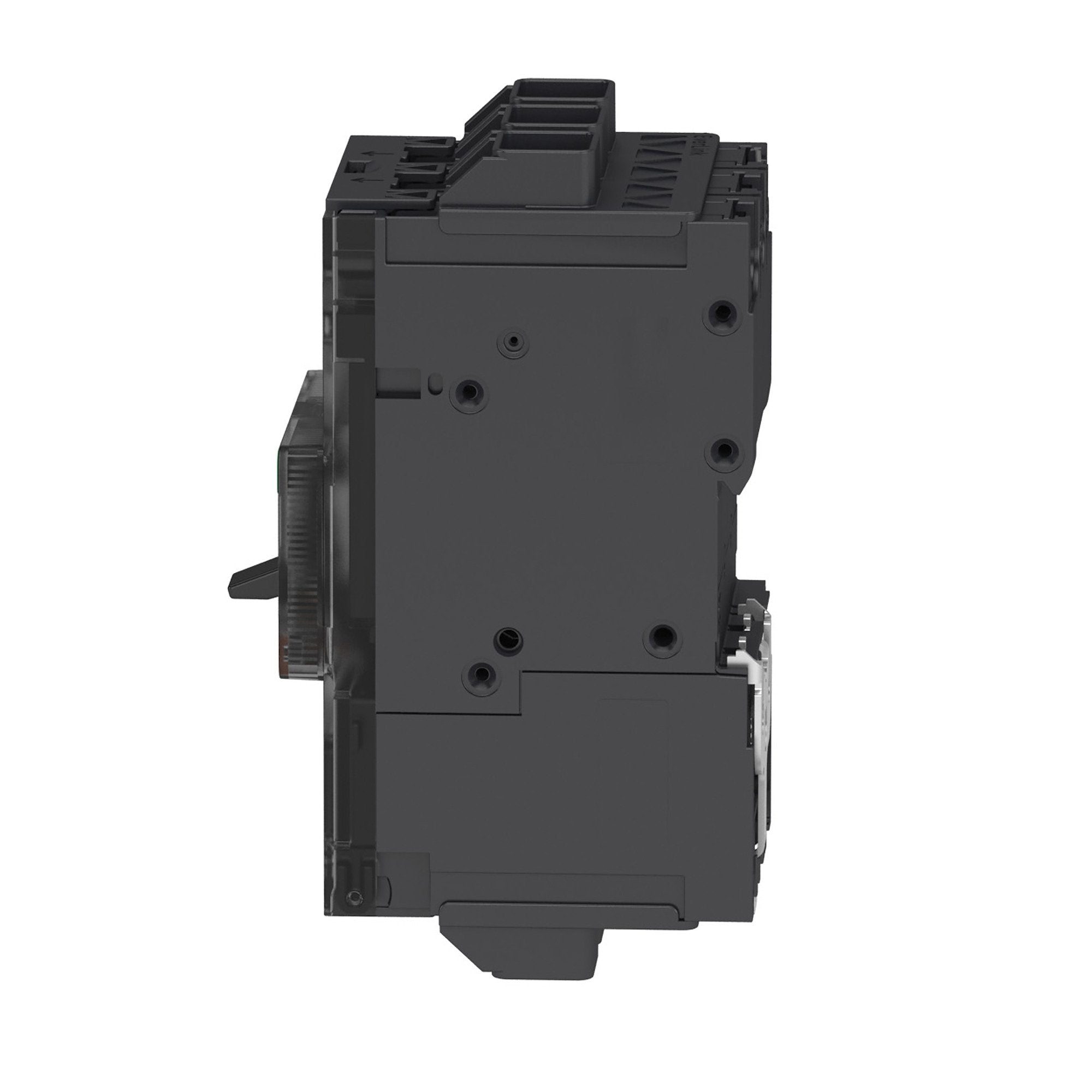

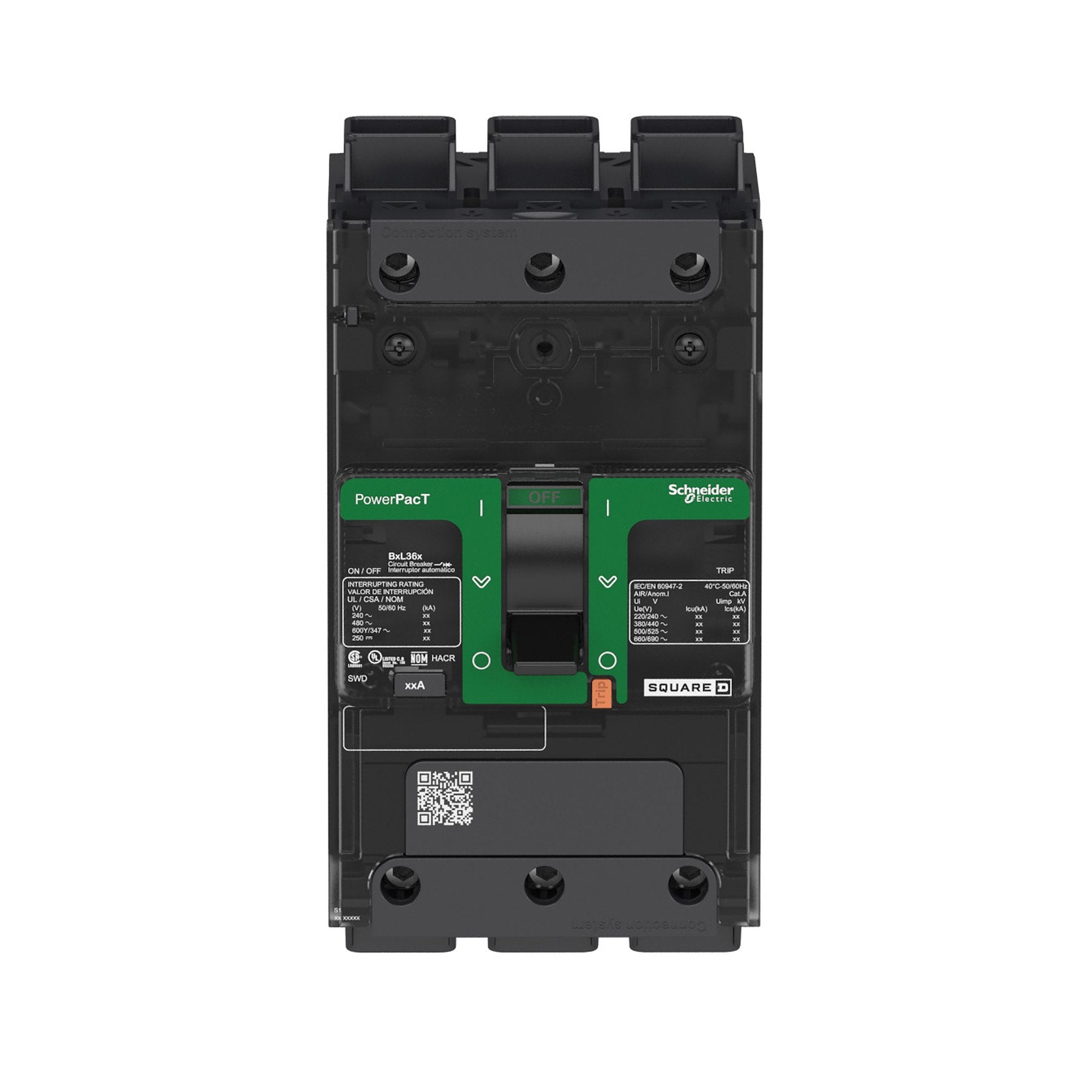

Square D BDL36020 Circuit Breaker PowerPacT B 20A 3 Pole 600Y347VAC 14kA

Product Description

The Square D BDL36020 Circuit Breaker offers reliable thermal and mechanical circuit protection. It is designed for use in various applications and is compatible with many system configurations. This circuit breaker ensures safety while maintaining performance within electrical systems.

• Thermal magnetic circuit protection with a breaking capacity of 14kA at 600Y/347VAC
• Compliance with UL, CSA, and IEC standards
• Compatible with EverLink lugs to maintain secure connections

Product Highlights

This circuit breaker is part of the PowerPacT B-Frame series, which combines a compact design with robust circuit protection features, including dual-break rotating contacts that limit peak current during short circuits.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: BDL36020
• Voltage: 525 Volt
• Amperage: 20 Amp
• Line Rated Current: 20-20 A
• Number of Poles: 3 Pole
• Depth: 3.15 inches
• Width: 3.19 inches
• Height: 5.39 inches
• Weight: 2.37 lb
• Country of Origin: United States
• Certifications: UL, CSA, NOM
