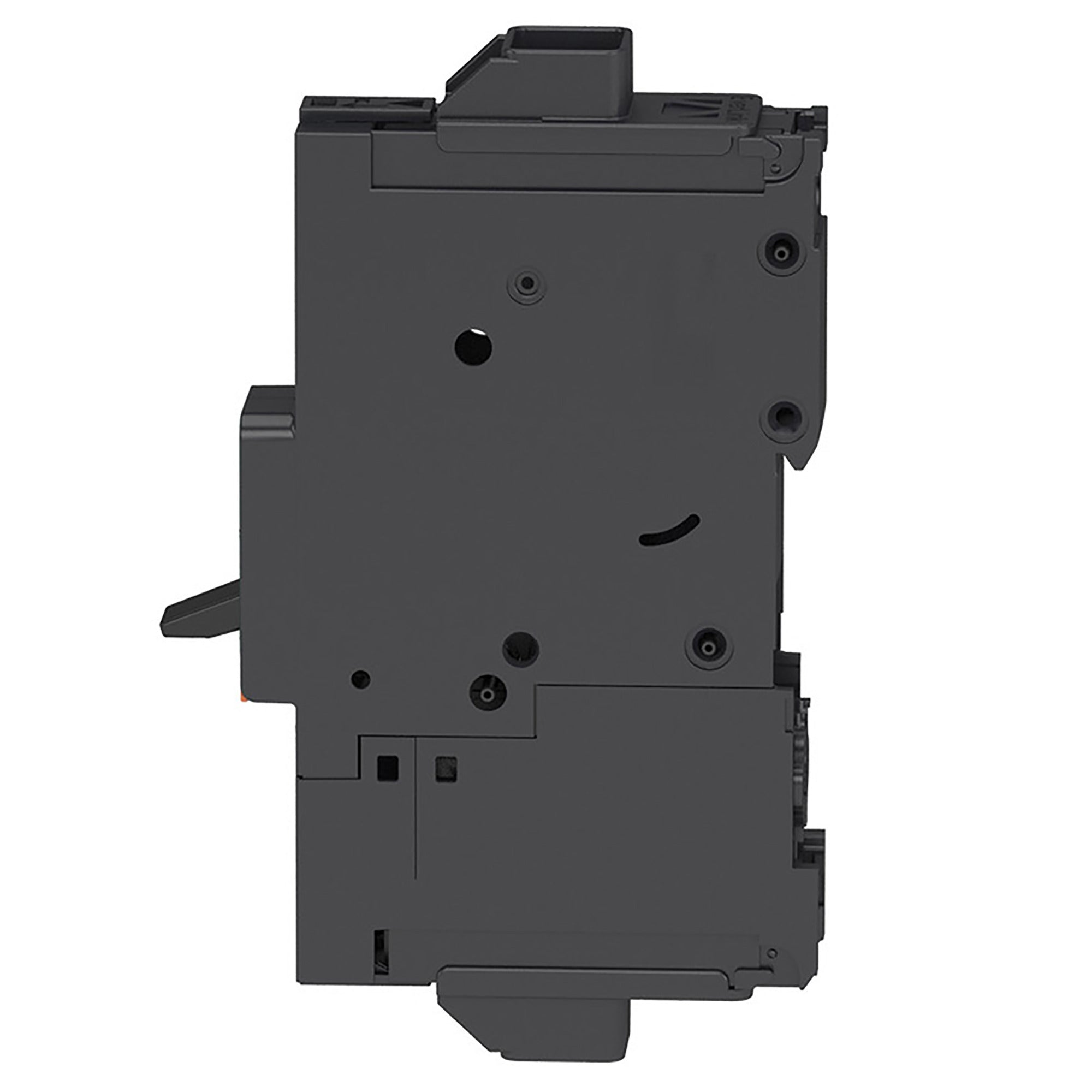

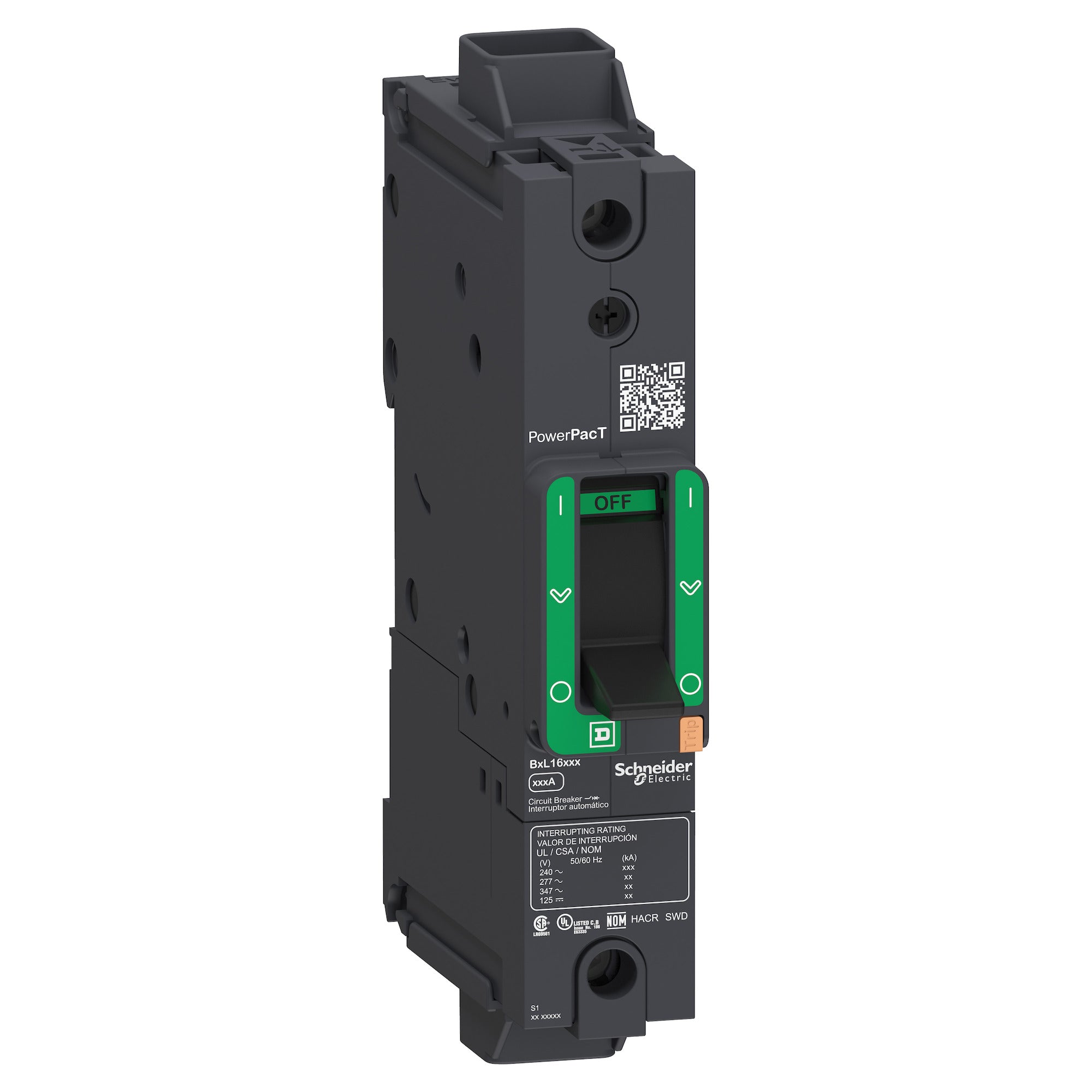

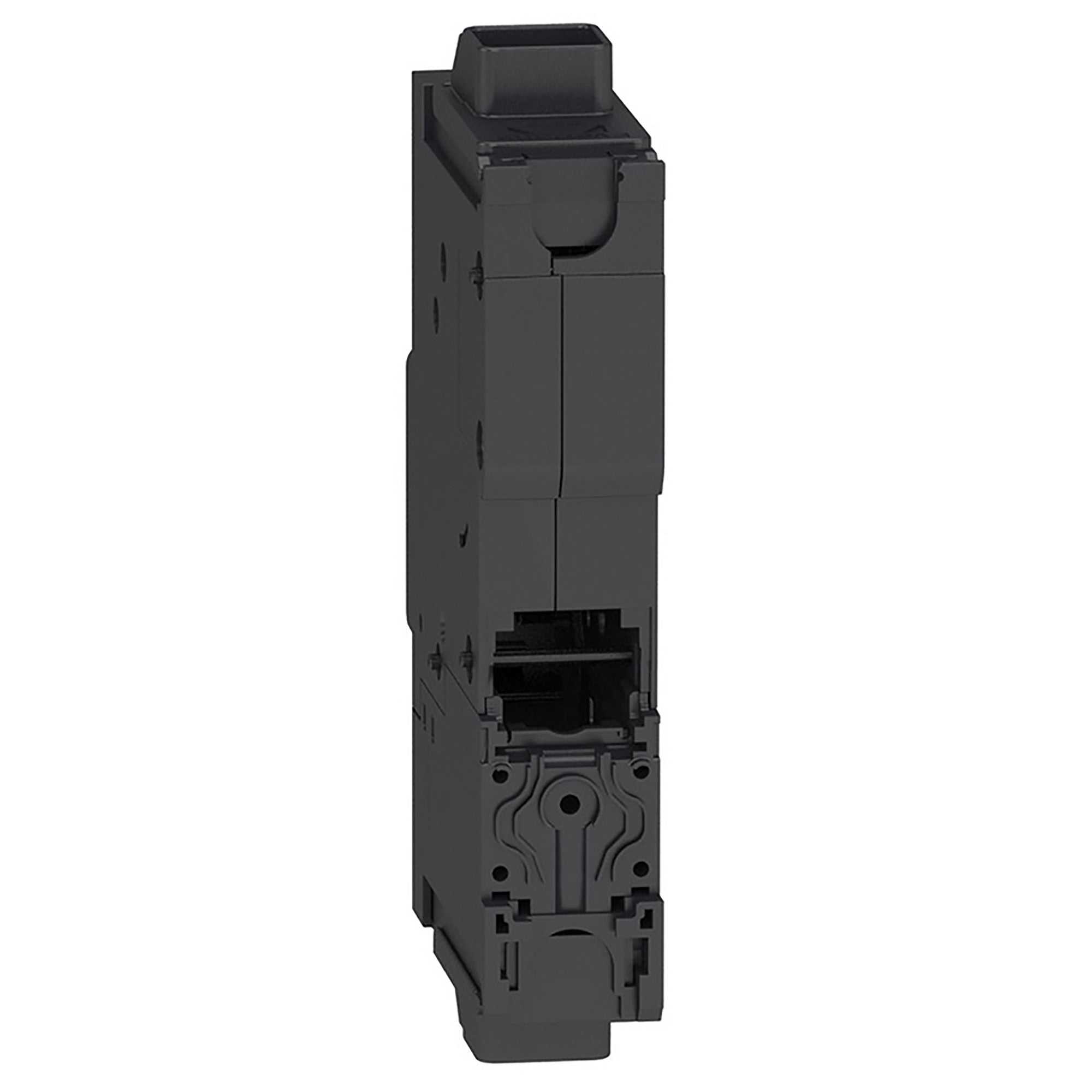

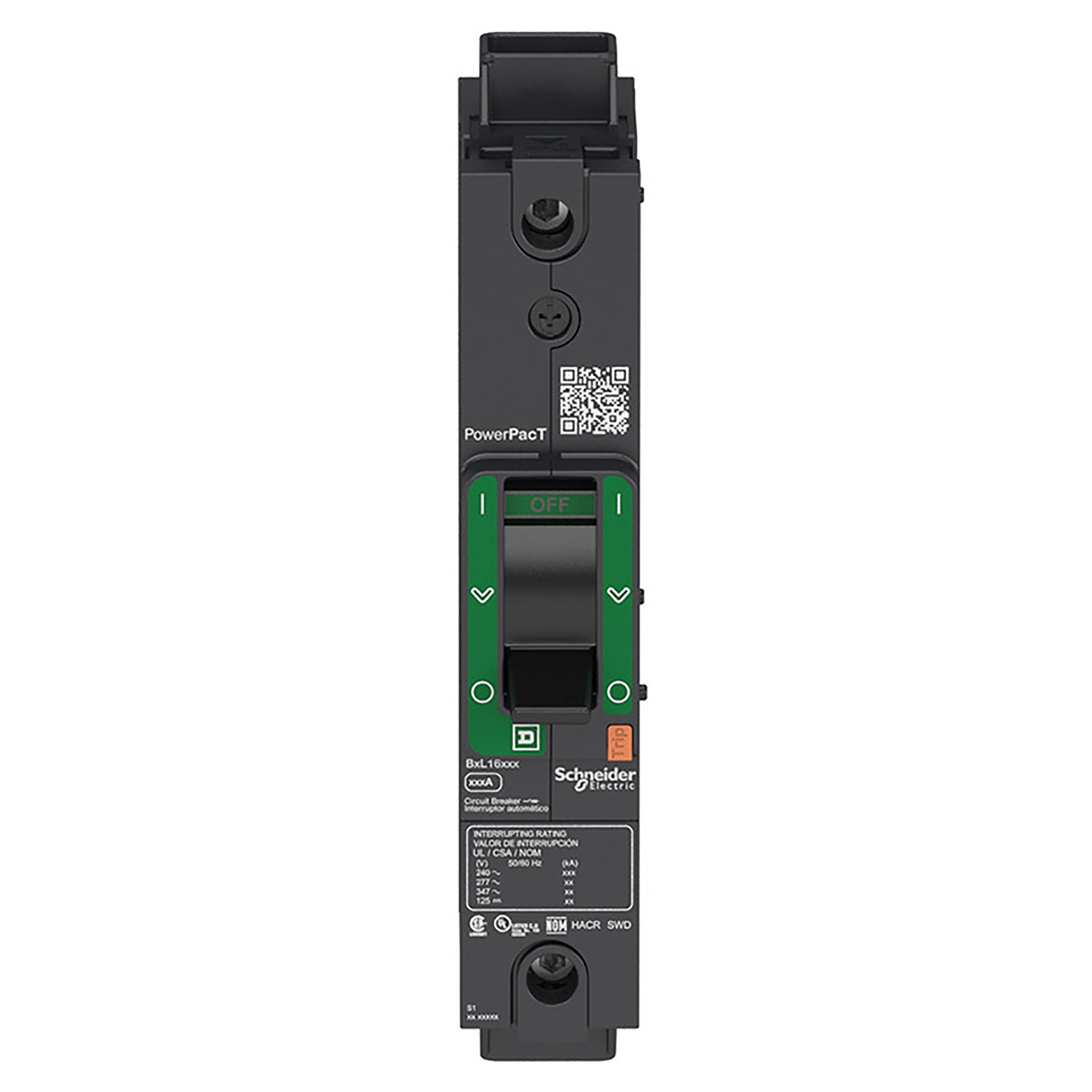

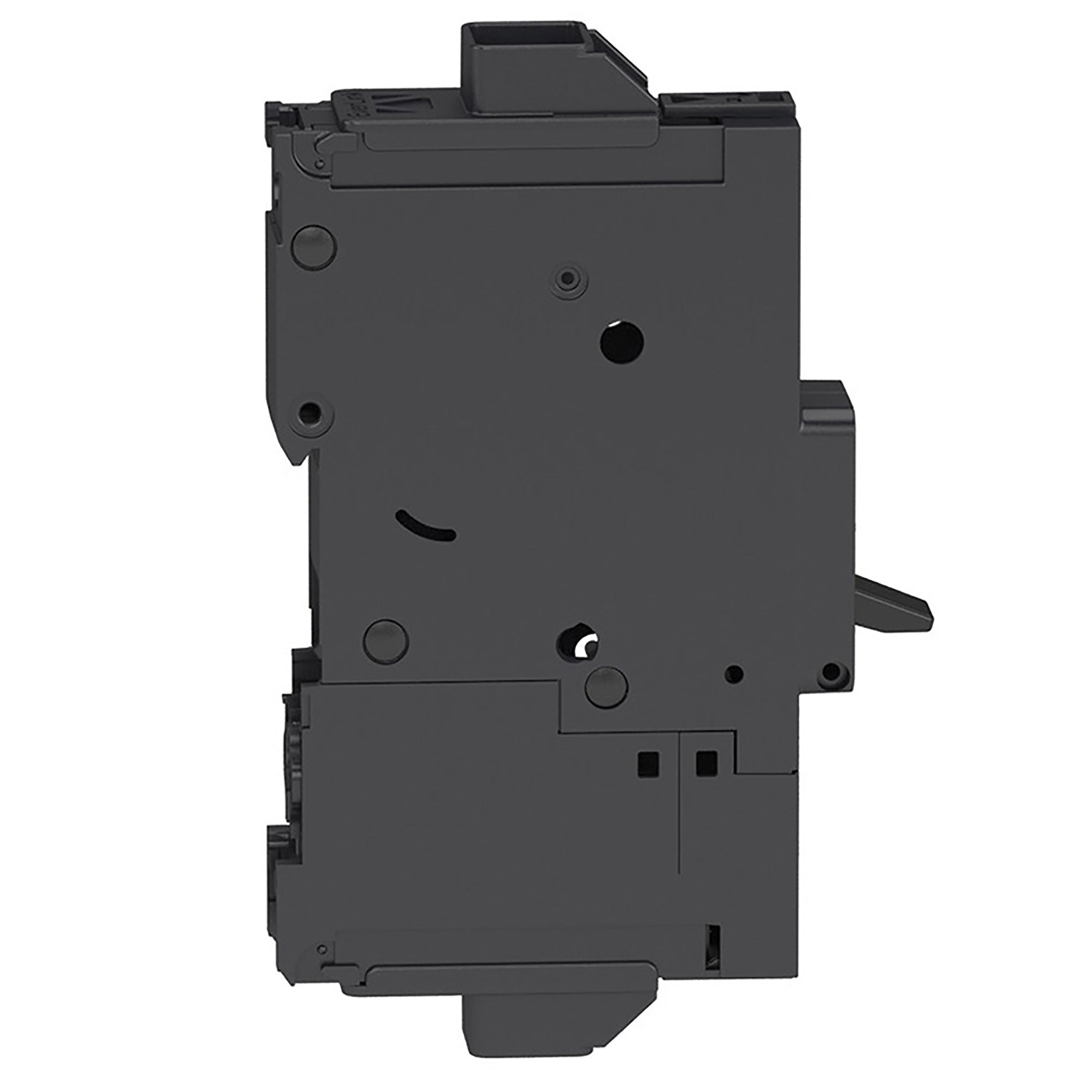

Square D BDL16020 Circuit Breaker PowerPacT B 20A 1 Pole 600Y/347VAC 14kA

Product Description

The Square D BDL16020 Circuit Breaker is a PowerPacT B device that ensures reliable thermal and mechanical protection. This product features a capacity of fourteen thousand amperes at six hundred volts Y or three hundred forty-seven volts AC, suitable for various electrical systems.

• Thermal magnetic protection with a capacity of 14kA
• Compact design with options for installation flexibility
• Integral push-to-trip button for manual tripping

Product Highlights

This circuit breaker is designed for both safety and convenience. Its compact size and multiple mounting options allow for easy integration into existing electrical infrastructure.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: BDL16020
• Country of Origin: United States
• Made in USA: Yes
• Breaking Capacity: 14kA at 600Y/347VAC
• Continuous Current Rating: 80%
• Mounting Type: Unit mount with options for DIN rail
• Compliance Standards: UL, CSA, NOM, IEC
• GTIN: 03606481148469
