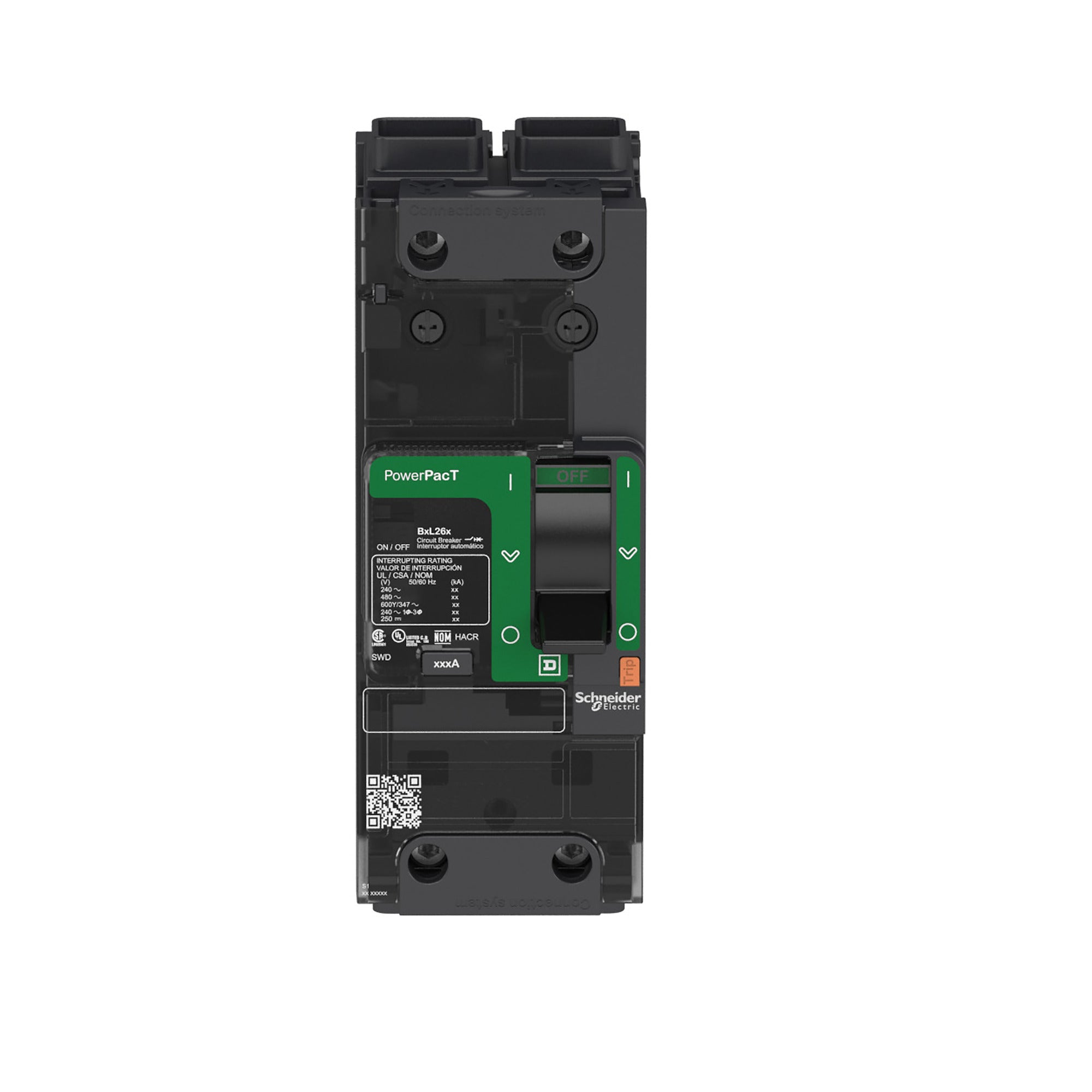

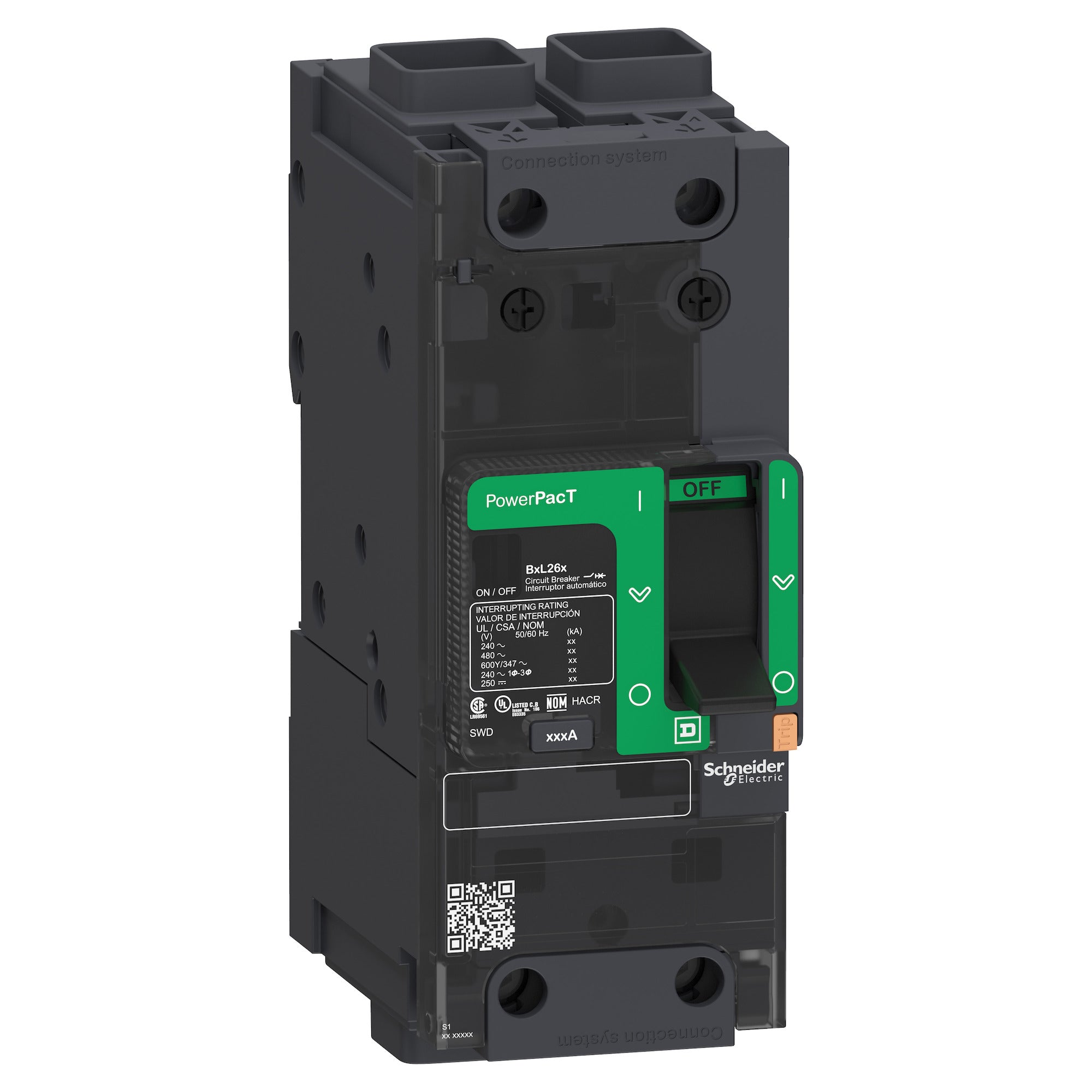

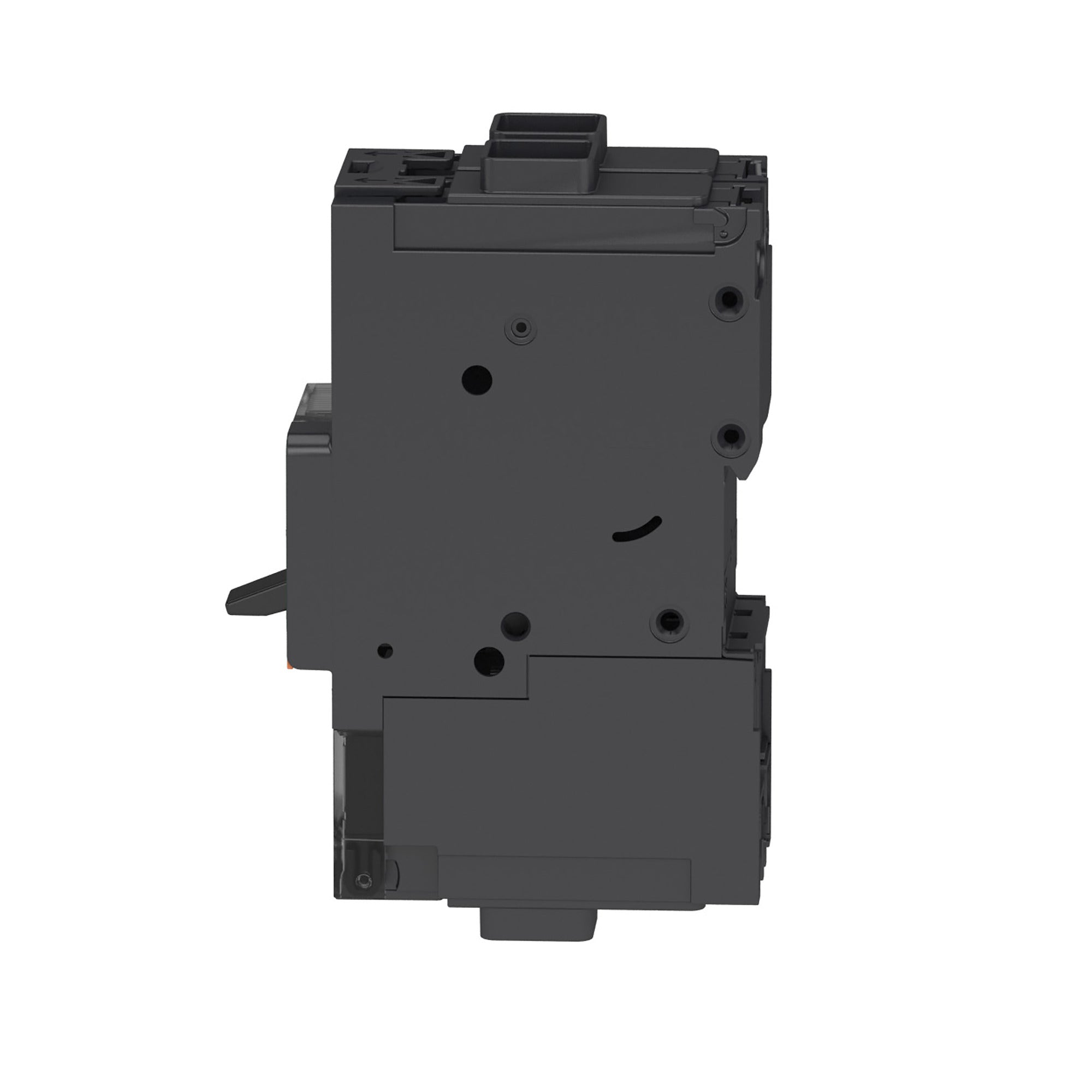

Square D BDF26015 PowerPacT B-Frame Circuit Breaker 15A 2-Pole 600Y/347VAC 14kA Terminal Nut Thermal Magnetic

Product Description

The Square D PowerPacT B-Frame Circuit Breaker provides reliable circuit protection in a compact size for diverse applications. Engineered by Schneider Electric, the BDF26015 model ensures robust thermal magnetic protection with a 14kA breaking capacity at 600Y/347VAC, making it ideal for demanding settings.

• Employs dual-break rotating contacts for minimized peak current during short circuits.
• Includes a manual push-to-trip button for enhanced safety and control.
• Compatible with various mounting systems including traditional back pan and DIN rail setups.

Product Highlights

This 15A, 2-pole circuit breaker is crafted for stability and compliance with multiple international standards like UL, CSA, NOM, IEC, and features CE marking.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric
• Country of Origin: United States
• Compliance: UL, CSA, NOM, IEC, CE

Technical Specifications

• Amps: 15A
• Poles: 2
• Voltage: 600Y/347VAC
• Interrupt Rating: 14kA at 600Y/347VAC
• Terminal Connection: Nut on both ends
• Mounting Style: Din Rail, Screws Plate
• Wire Size: Min 14 AWG, Max 3/0 AWG
• Standards: UL, CSA, NOM, IEC, CE
