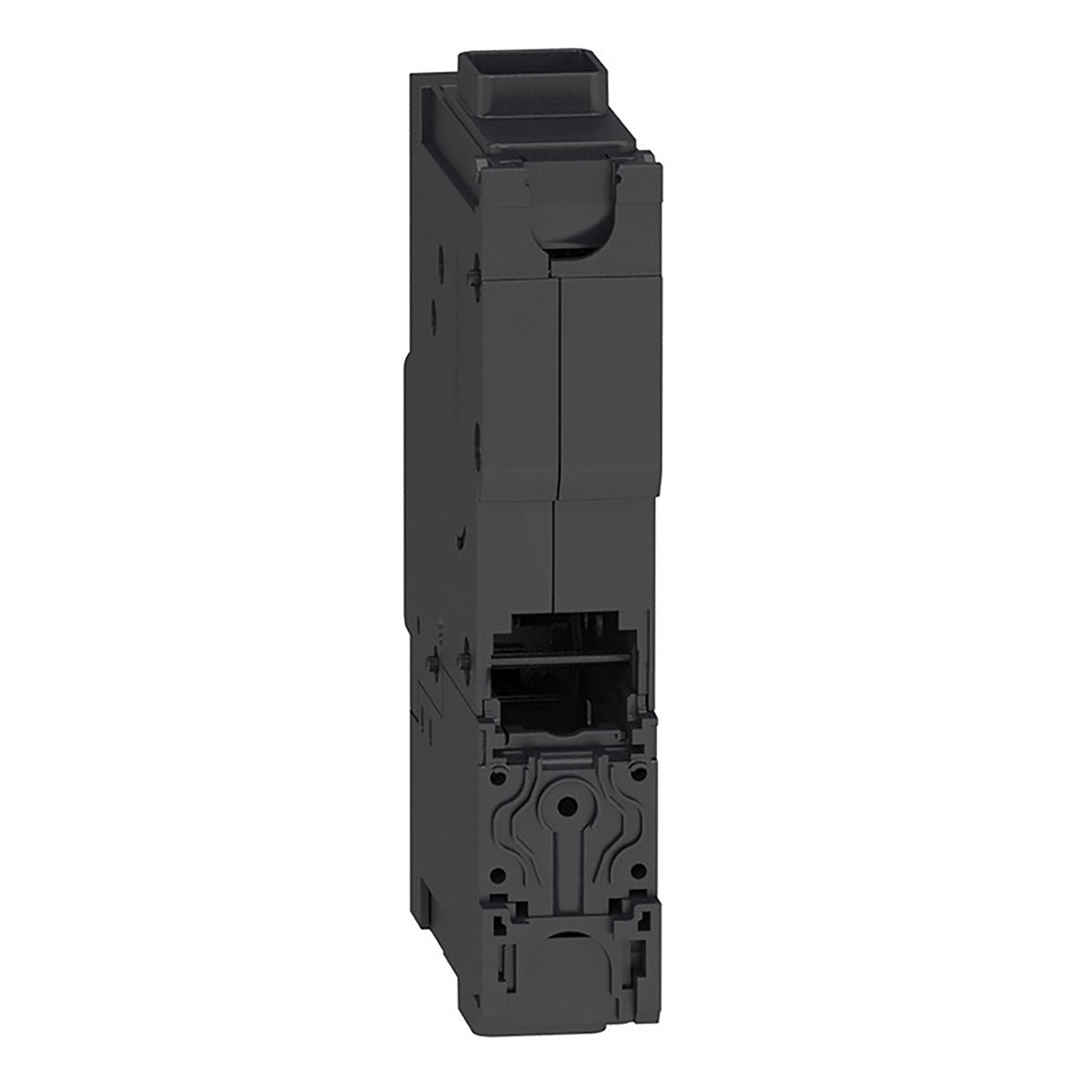

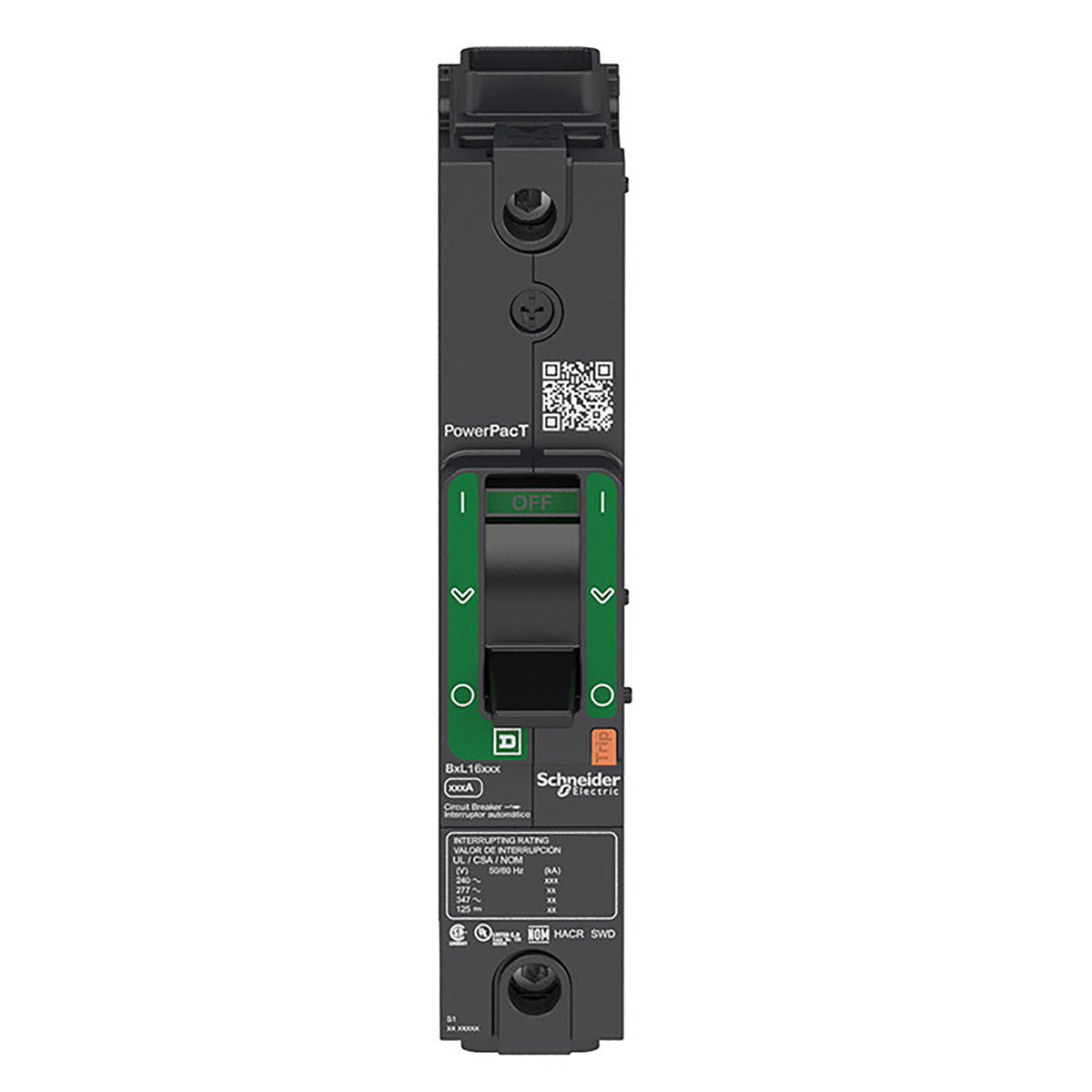

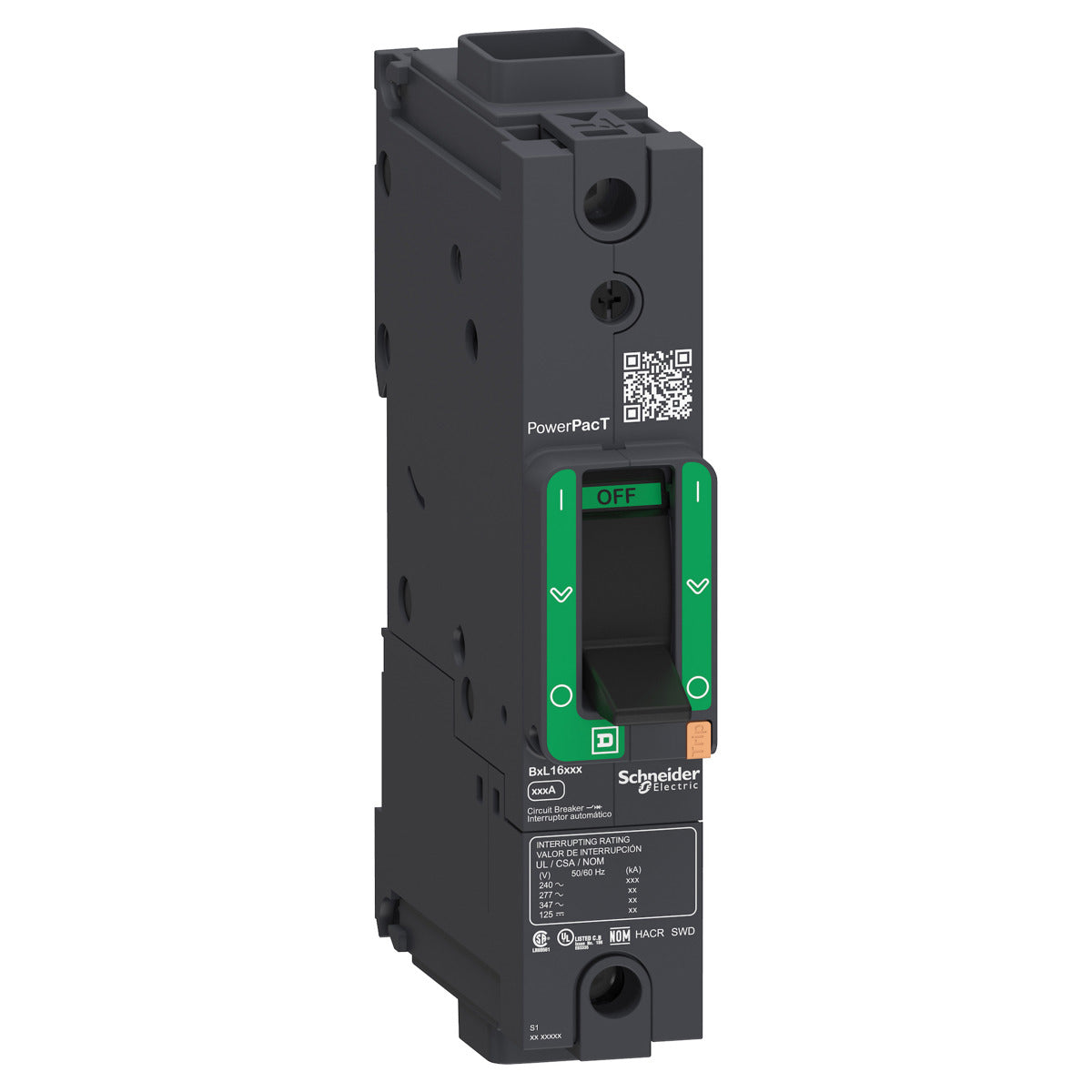

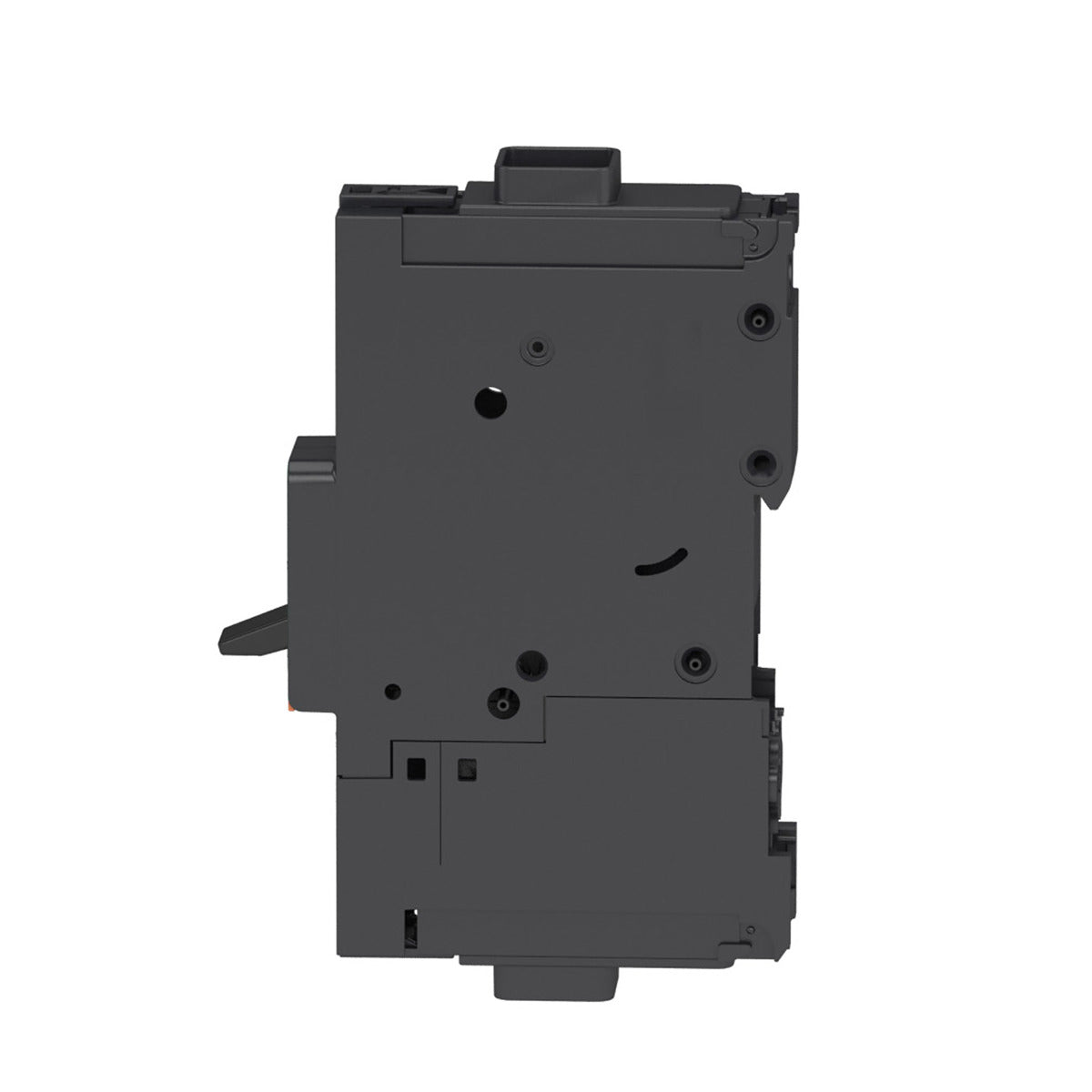

Square D BDF16020 Circuit Breaker PowerPacT B 20A 1 Pole 600Y/347VAC 14kA

Product Description

The Square D BDF16020 is a circuit breaker designed for effective thermal and mechanical protection. It is tailored for high performance in various electrical systems. This one-pole circuit breaker operates at a current of twenty amps and a voltage of six hundred volts between phase and neutral. It is compliant with electrical standards for safety and efficiency.

• Thermal magnetic protection with a breaking capacity of fourteen kiloamps.
• Continuous current rating of eighty percent.
• Compatible with multiple mounting types including traditional back pan and DIN rail.

Product Highlights

This breaker integrates a robust design with versatile installation options to meet diverse application needs.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: BDF16020
• Current Rating: 20A
• Voltage Rating: 600Y/347VAC
• Breaking Capacity: 14kA
• Pole Configuration: 1 Pole
• Construction: Unit mount
• Country of Origin: Mexico
• RoHS Compliance: Yes
