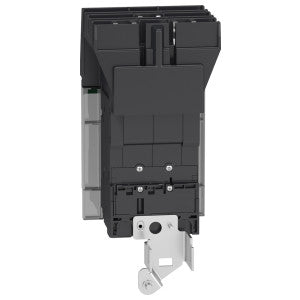

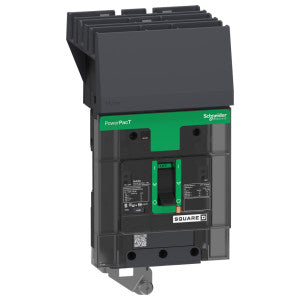

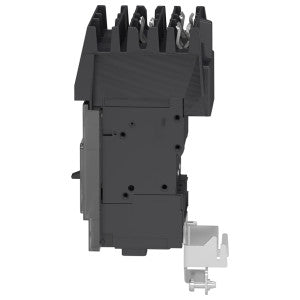

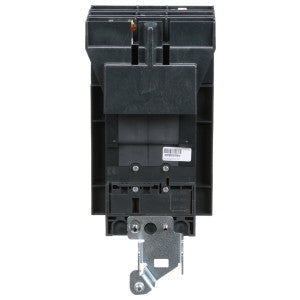

Square D BDA34015Y PowerPact B Circuit Breaker 15A 3P 480Y/277V AC 18kA at 480/277 UL I-Line

Product Description

The Square D BDA34015Y is a PowerPact B circuit breaker designed for thermal-mechanical protection in electrical systems. This model offers reliable circuit protection with a breaking capacity of 18kA at 480Y/277V AC. Equipped with dual-break rotating contacts, it effectively reduces peak current in short circuit conditions. The unit allows for manual tripping via an integrated push-to-trip button and features both I-Line and unit mount options for installation flexibility.

• Breaking capacity of 18kA at 480Y/277V AC
• Includes a push-to-trip button for manual operation
• Available in I-Line and unit mount configurations

Product Highlights

Ideal for industrial and commercial applications, this circuit breaker is compatible with UL, CSA, and IEC standards.

Product Information

Standard Information

• Brand: Square D (Schneider Electric)
• Manufacturer: Square D (Schneider Electric)

Technical Specifications

• Current Rating: 15-15A
• No. of Poles: 3
• Rated Voltage: 525V AC 50/60 Hz UL 489
• Torque: 3.6-4.4 N.m 2.5-6 mm² (AWG 14...AWG 10)
• Depth: 89 mm
• Height: 114 mm
• Width: 81 in.
• Country of Origin: MX - Mexico
• ECCN: EAR99
• AWG Range: AWG 14...AWG 2/0 aluminium/copper
• UNSPSC: 39121616
