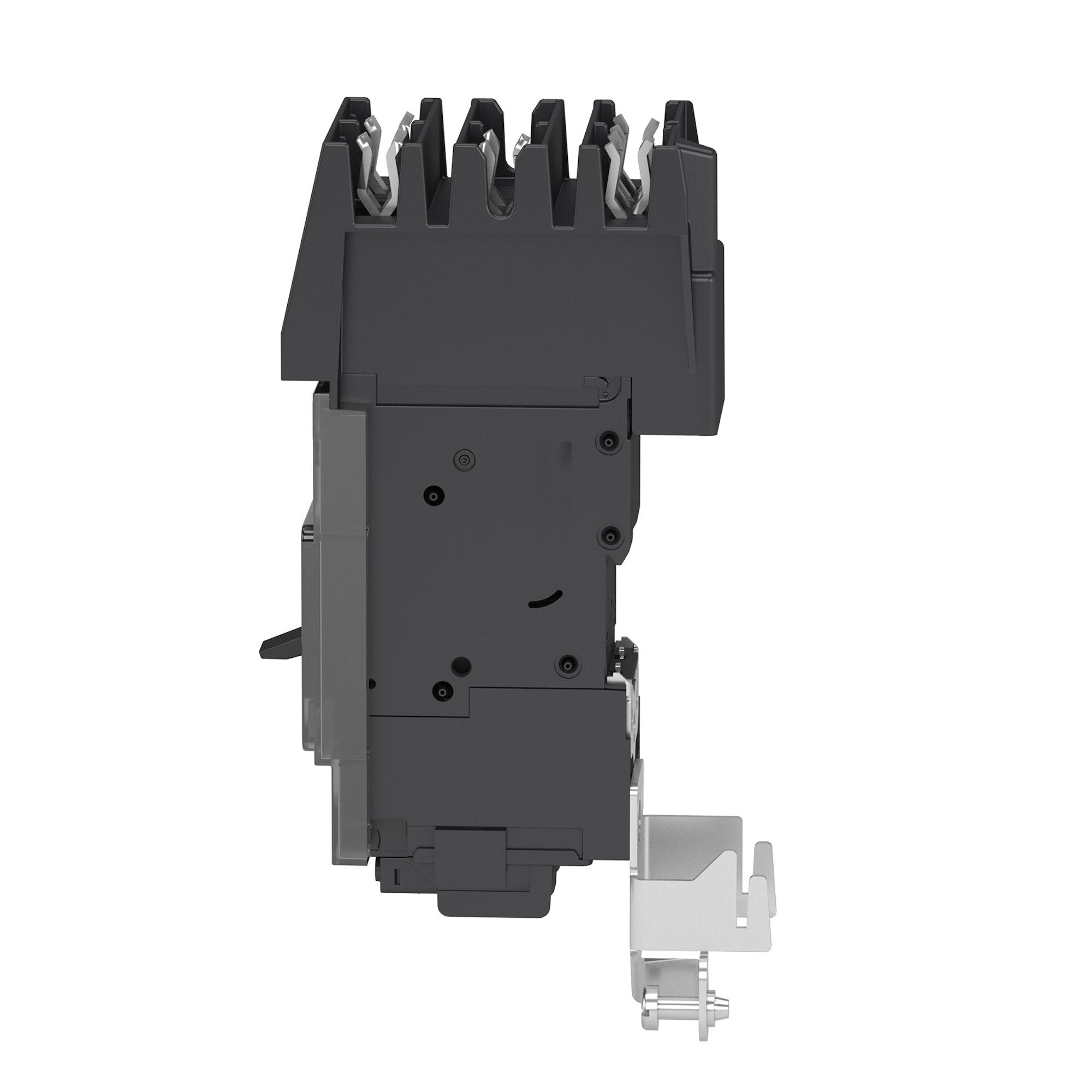

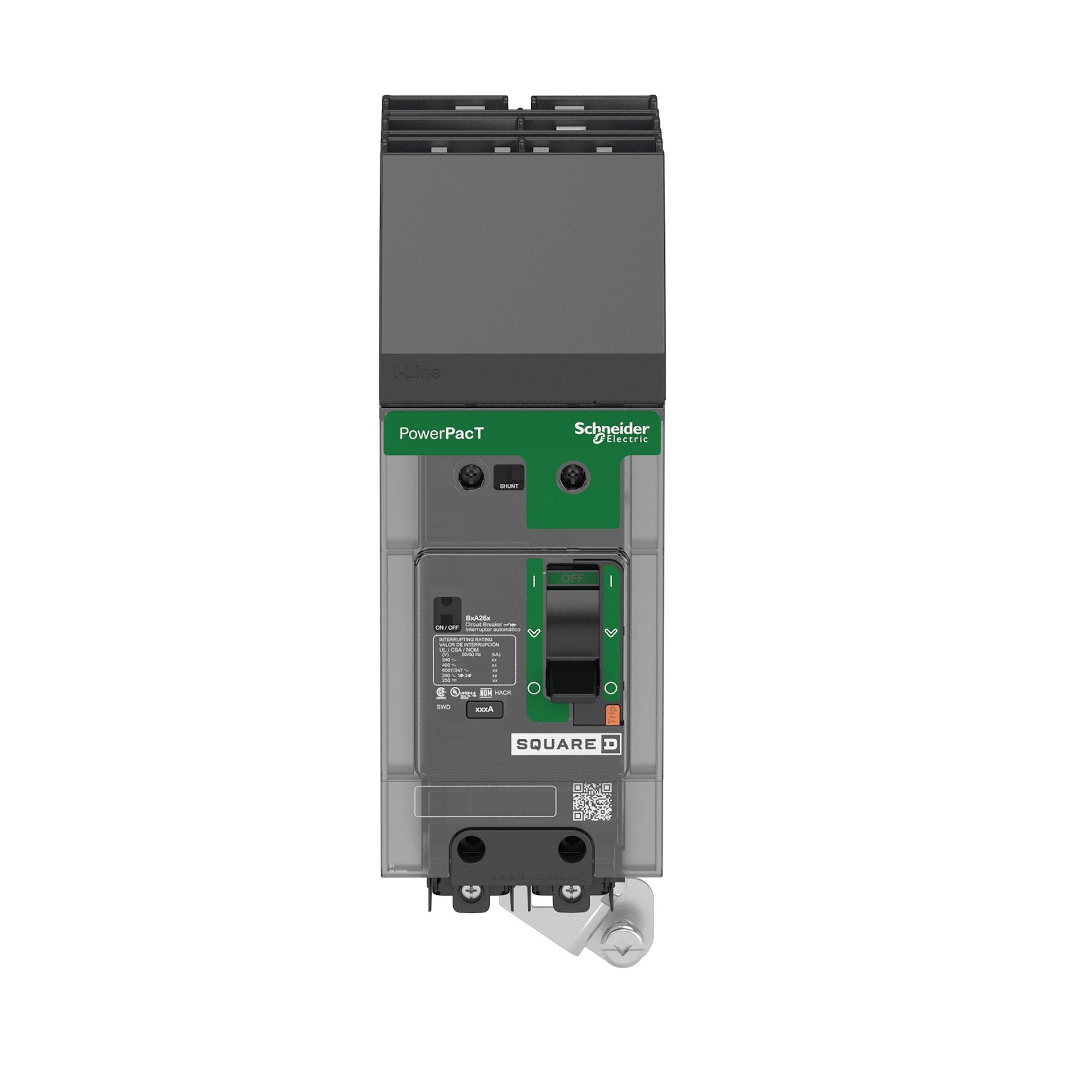

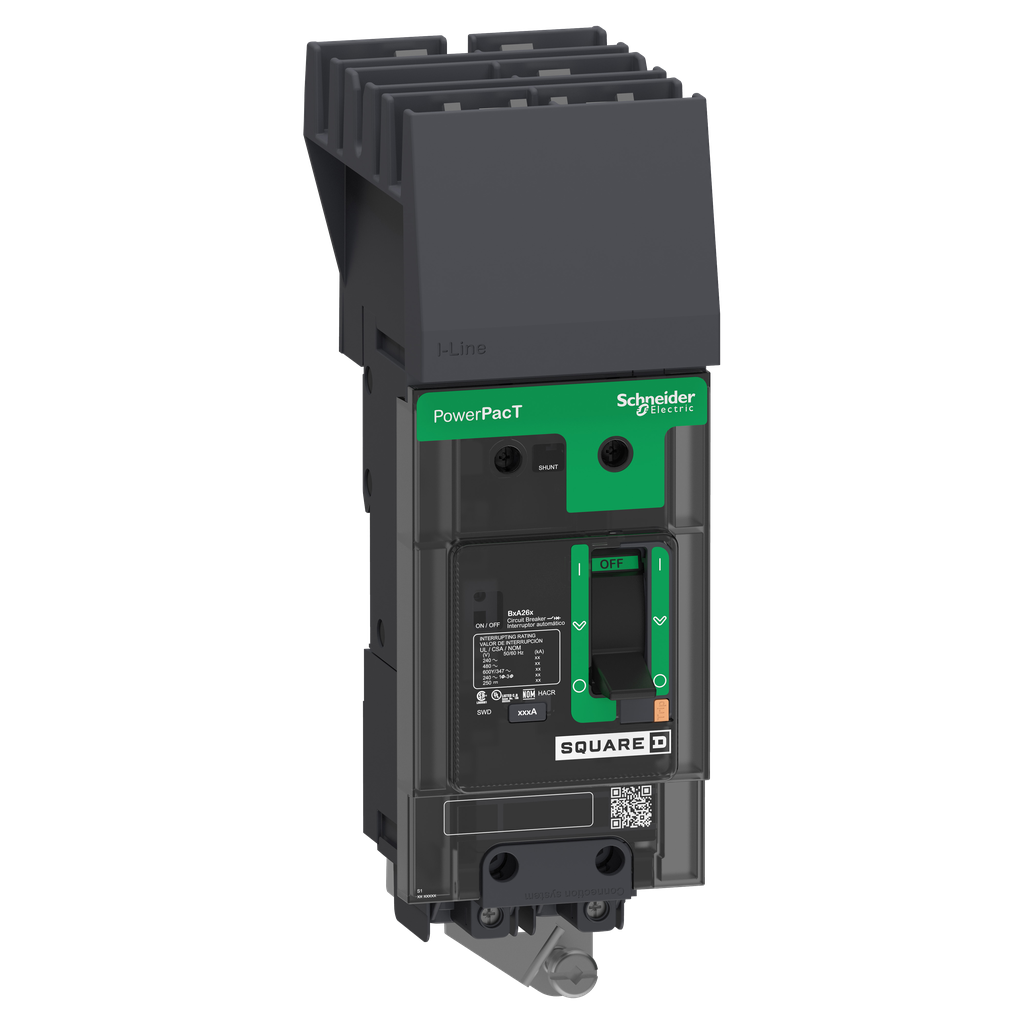

Square D BDA260152 Circuit Breaker, PowerPacT B, 15A, 2 Pole, 600Y/347VAC, 14kA

Product Description

The Square D BDA260152 is a PowerPacT B-Frame circuit breaker designed for thermal-mechanical protection in various applications. This unit offers a thermal magnetic circuit protection with a breaking capacity of fourteen kiloamperes at six hundred volts Y-rated or three hundred forty-seven volts alternating current. It features dual-break rotating contacts that minimize peak current during short circuit events. An integral push-to-trip button allows for manual tripping of the circuit breaker.

Available in both one to four pole unit mount and one to three pole I-Line constructions, the I-Line type includes a shrouded plug on the jaw for safety. This model includes I-Line terminations on the line side and mechanical lugs on the load side, making it versatile for various installations. With a continuous current rating of eighty percent under AC phase connections, the BDA260152 is compliant with several industry standards including UL, CSA, and IEC.

• Thermal magnetic protection with breaking capacity of 14kA at 600Y/347VAC
• Two-pole configuration with a continuous current rating of 80%
• Manual trip feature for safe operation

Product Highlights

Ideal for power distribution needs, the Square D BDA260152 circuit breaker is capable of handling demanding industrial and commercial applications.

Product Information

Standard Information

• Catalog Number: BDA260152
• Brand: Square D

Technical Specifications

• Voltage: 525 Volt
• Amperage: 15 Amp
• Country of Origin: Mexico
• Weight: 2.10 lb
• Depth: 89 mm
• Width: 54 mm
• Height: 137 mm
• Compliance Standards: UL, CSA, NOM, IEC
• Certifications: CCC, CSA, EAC, IEC, NOM, UL
