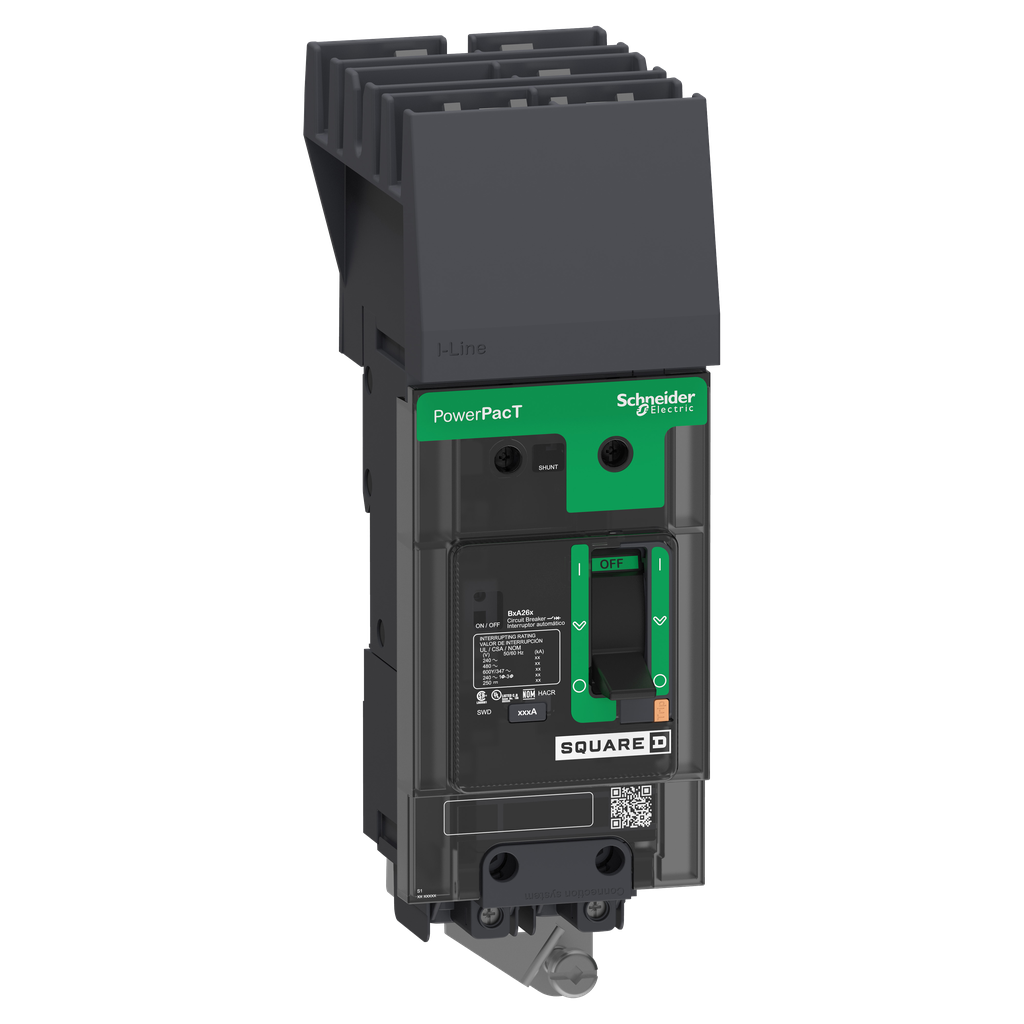

Square D BDA260151 Circuit Breaker PowerPacT B 15A 2 Pole 600Y/347VAC 14kA

Product Description

The Square D BDA260151 circuit breaker offers thermal-mechanical protection in a compact design. It features a breaking capacity of fourteen kiloamperes at six hundred volts and provides thermal magnetic circuit protection. This circuit breaker is equipped with dual-break rotating contacts, reducing peak current during short circuit faults. A push-to-trip button is integrated into the cover for manual operation.

• Circuit breaker provides thermal magnetic protection.
• Features dual-break rotating contacts to reduce peak current.
• Push-to-trip button allows for manual reset.

Product Highlights

The PowerPacT B-Frame circuit breaker is designed for low voltage power distribution and meets stringent safety standards. It is suitable for various applications in both commercial and industrial settings.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: BDA260151
• Voltage: 525 Volt
• Amperage: 15 Amp
• Number of Poles: 2 Pole
• Breaking Capacity: 14 kA at 600Y/347VAC
• Weight: 2.10 lb
• Dimensions: 54 mm Width x 137 mm Height x 89 mm Depth
• Mounting Type: I-Line
• Certifications: UL, CSA, NOM, IEC
