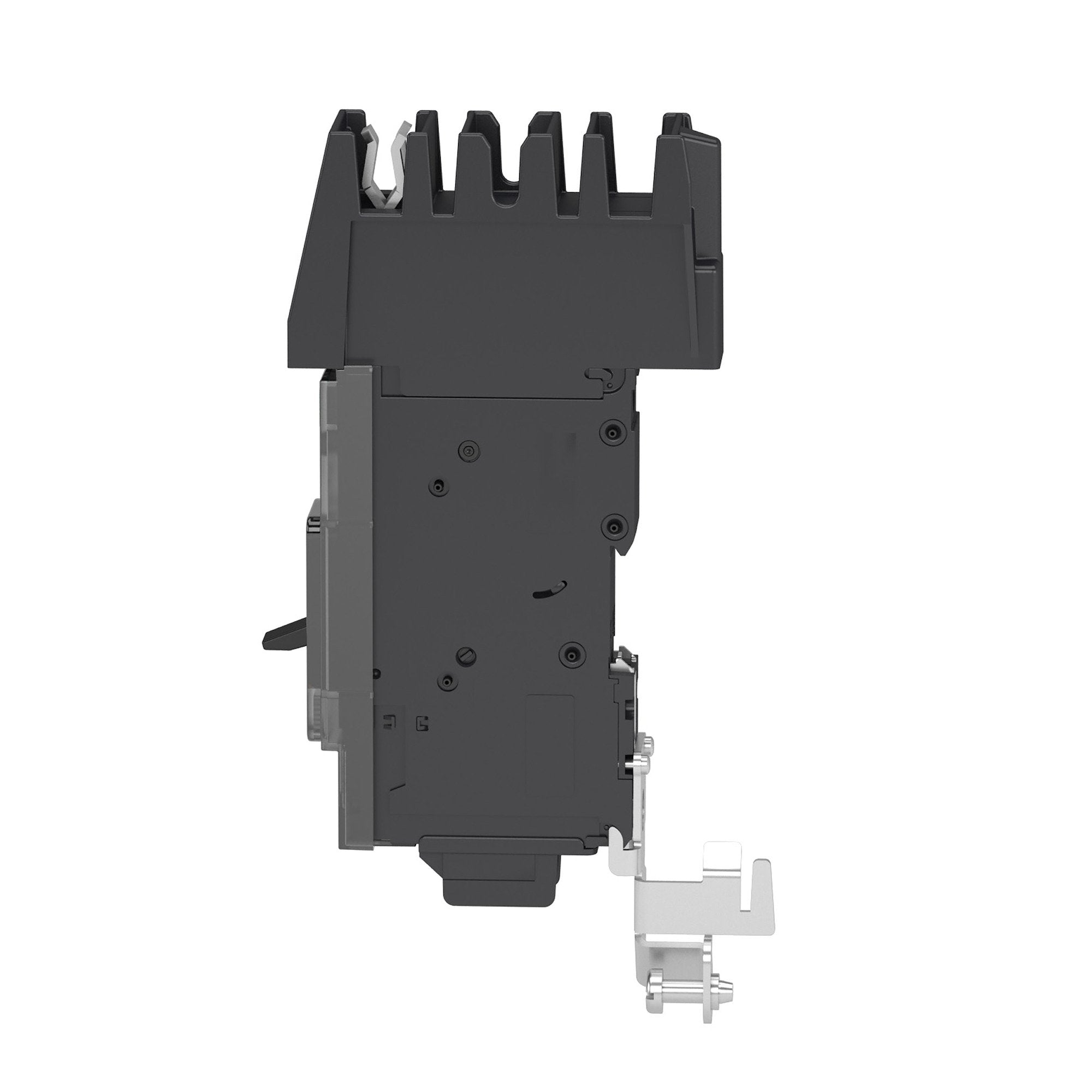

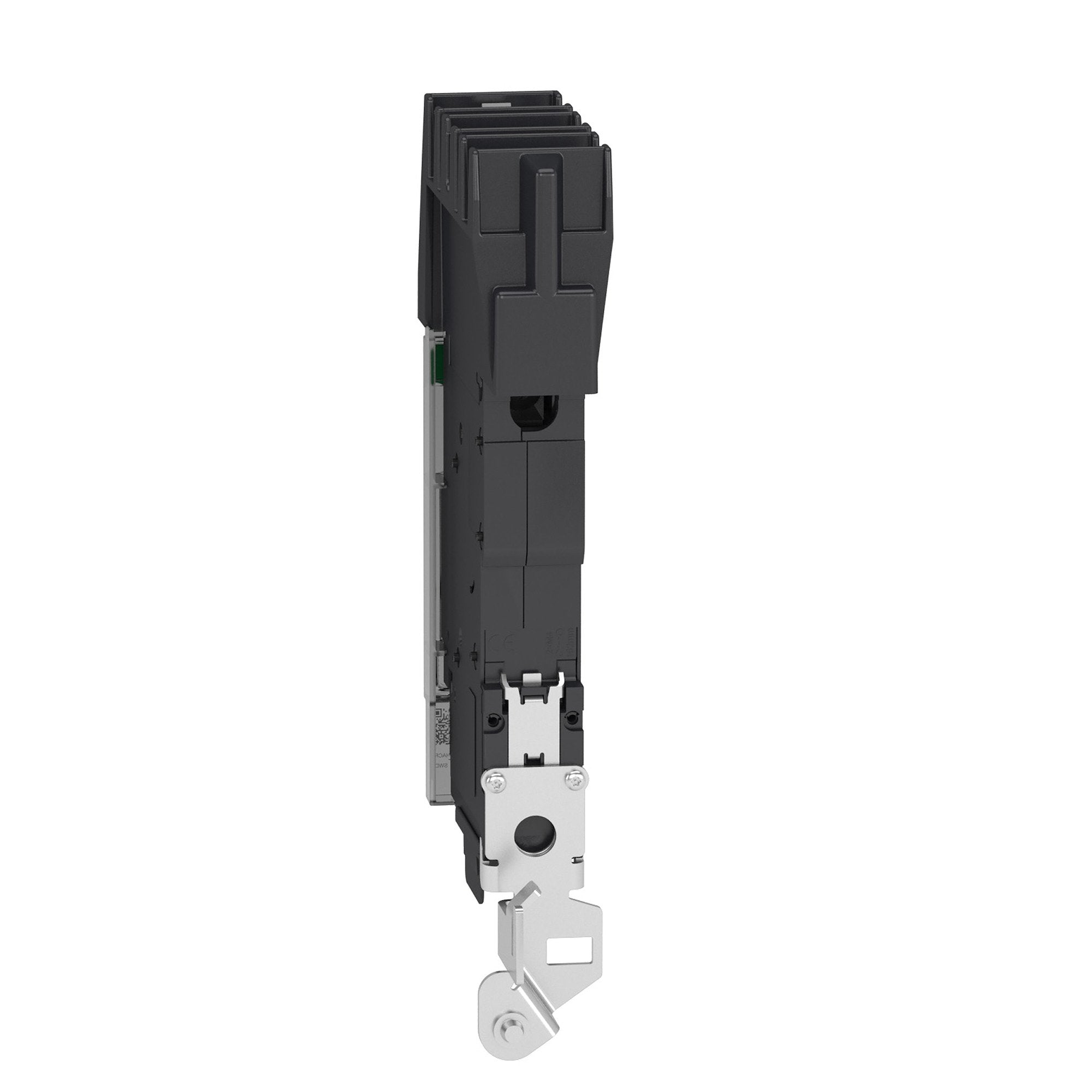

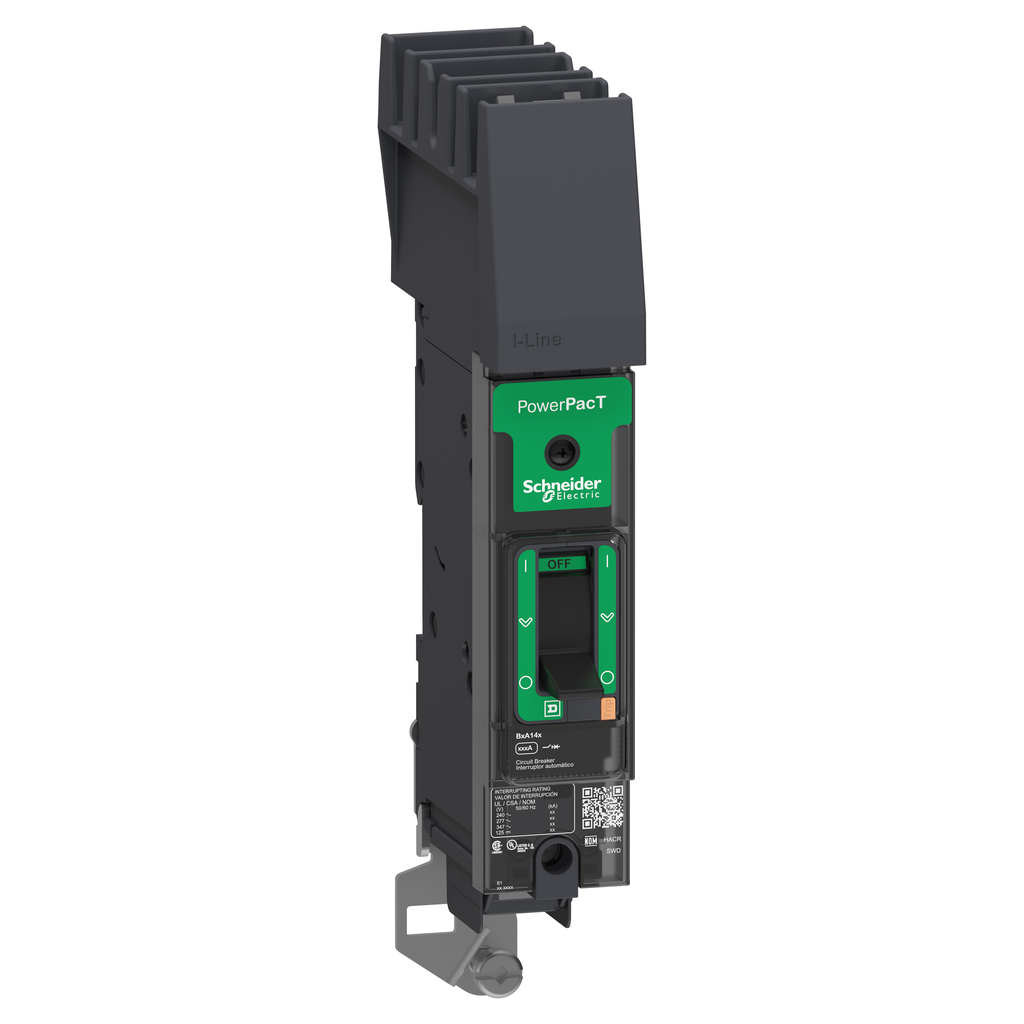

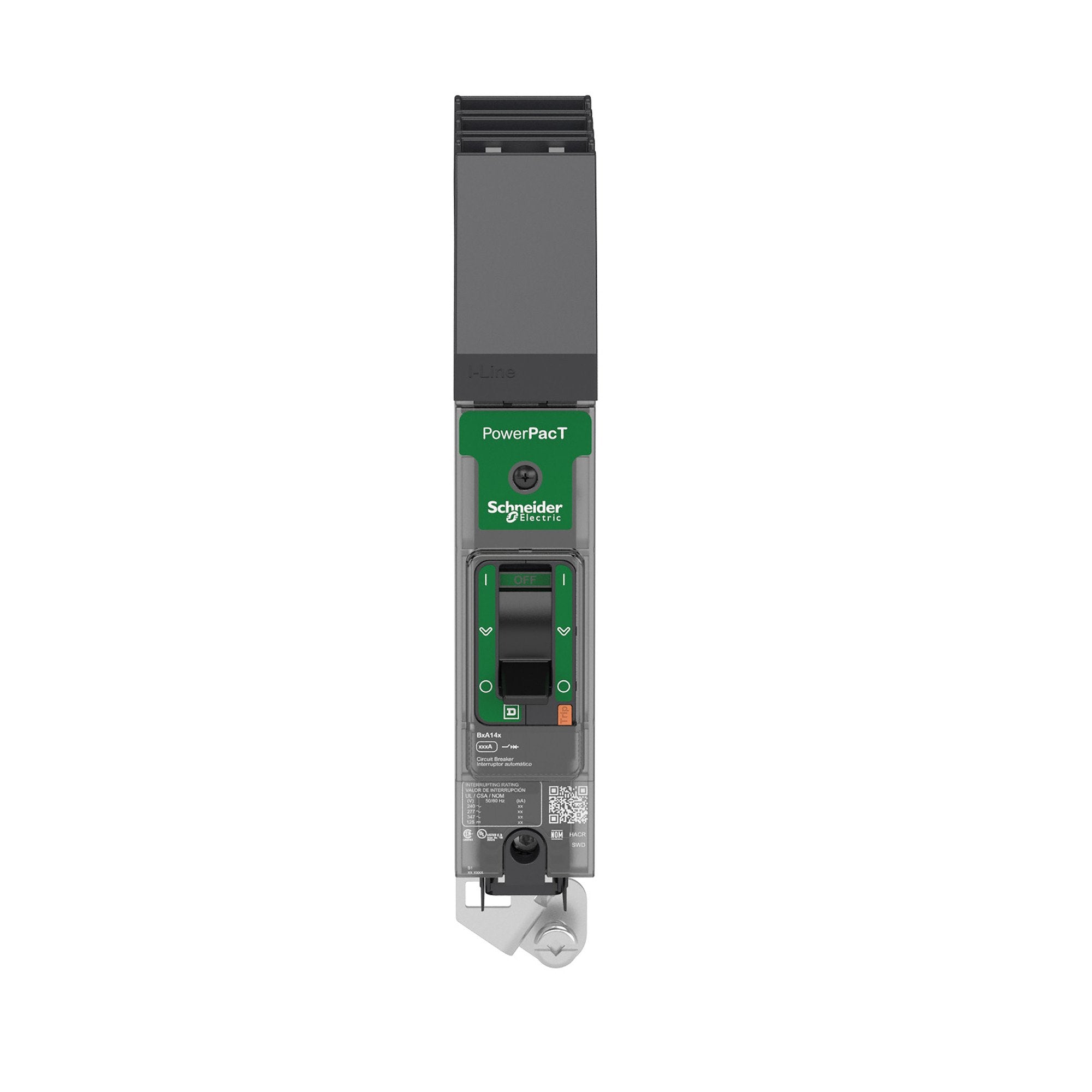

Square D BDA140301 Circuit Breaker 30A 1 Pole 480Y/277VAC 18kA

Product Description

The Square D BDA140301 circuit breaker offers reliable thermal-mechanical protection for electrical systems. This circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 480Y/277VAC. It features dual-break rotating contacts to minimize peak current during short circuit conditions. A push-to-trip button is included for manual tripping, enhancing safety and operational control.

• Thermal magnetic protection with breaking capacity of 18kA
• Compatible with I-Line terminations for ease of installation
• Complies with UL, CSA, NOM, IEC standards

Product Highlights

The PowerPacT B-Frame series provides efficient circuit breaking capabilities in a compact form. It supports various mounting options.

Product Information

Standard Information

• Brand: Square D
• MPN: BDA140301

Technical Specifications

• Voltage: 240 Volt
• Amperage: 30 Amp
• Number of Poles: 1 Pole
• Continuous Current Rating: 80%
• Country of Origin: Mexico
• Weight: 1.41 lb
• Depth: 3.5 inches
• Width: 1.06 inches
• Height: 5.39 inches
