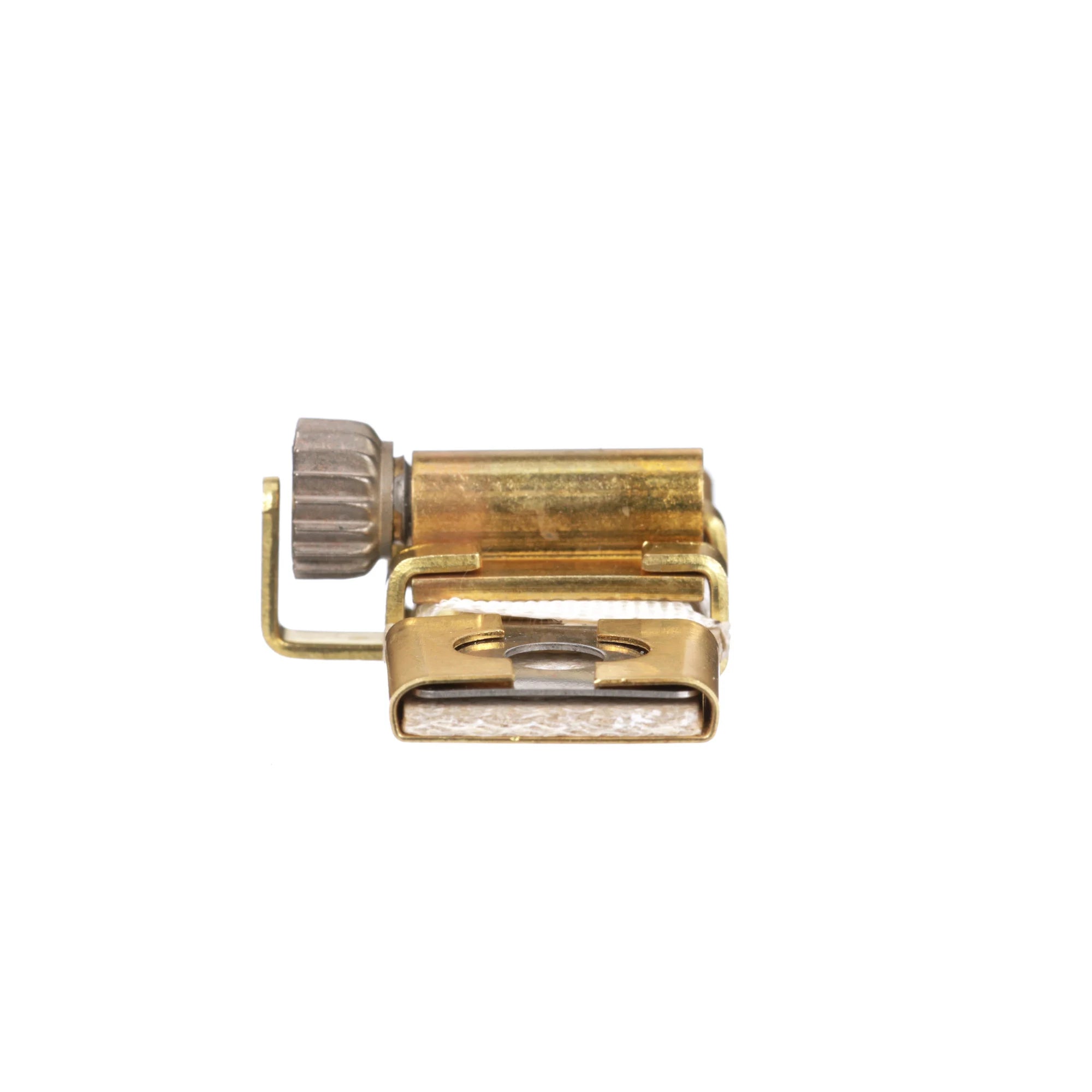

Square D B70.0 Thermal Unit

Product Description

Square D B70.0 is a thermal unit designed to protect motors and associated components from overheating due to prolonged motor over-currents. This unit operates effectively during high current conditions and prevents damage to motor circuits. It responds quickly to overload situations, tripping within twenty seconds to prevent further issues.

• Provides overload protection for most motors
• Cannot be reset until cooled
• One-piece thermal unit construction

Product Highlights

This thermal unit is built for reliability and durability in motor control applications, especially where melting alloy thermal overload relays are used. It is suitable for Class 20 applications, ensuring that motors are safeguarded against excessive heating.

Product Information

Standard Information

• Catalog Number: B70.0
• Manufacturer: Schneider Electric

Technical Specifications

• Brand: Square D
• Trip Type: Standard Trip - Class 20
• Reset Type: Manual
• Warranty Length: 18 months
• Country of Origin: Mexico
• UPC: 785901587651
• GTIN: 00785901587651
