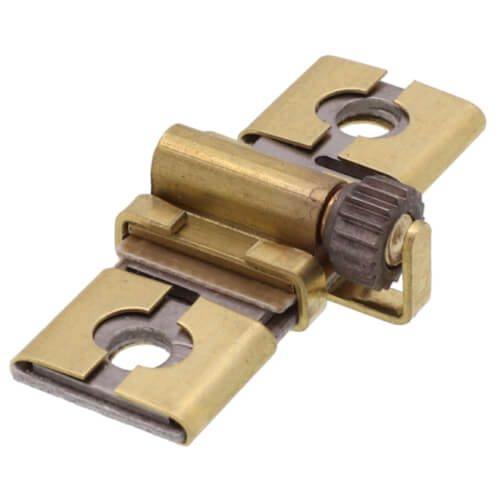

Square D B6.90 Thermal Unit 4.48-5.68 Amps for Motor Starters 00, 0, 1, 1P, 2

Product Description

The Square D B6.90 Thermal Unit, manufactured by Schneider Electric, is designed to protect motors, controllers, and branch-circuit conductors against excessive heating caused by prolonged over-currents, including locked rotor currents. This unit operates based on a Class 20 trip mechanism, offering reliable performance by tripping in 20 seconds or less when overload conditions arise.

• Protects against overheating due to prolonged over-currents
• Features a one-piece construction
• Responds to overloads in 20 seconds or less

Product Highlights

Square D B6.90 Thermal Unit safeguards your equipment by interrupting the motor circuit upon overload, preventing damage and enhancing safety. It is engineered for use in various industrial applications.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric
• Model: B6.90
• Country of Origin: Mexico

Technical Specifications

• Full Load Amps: 4.48 to 5.68
• Sensing Method: Melting Alloy
• Thermal Overload Type: Melting Alloy
• Motor Tripping Class: 20
• For Use With: Square D NEMA Motor Starters 00, 0, 1, 1P, 2
• Trip Type: Standard Trip
• Reset Type: Manual
• Certifications: CE
• Warranty: 18 months
• UPC: 785901587439
• GTIN: 00785901587439
