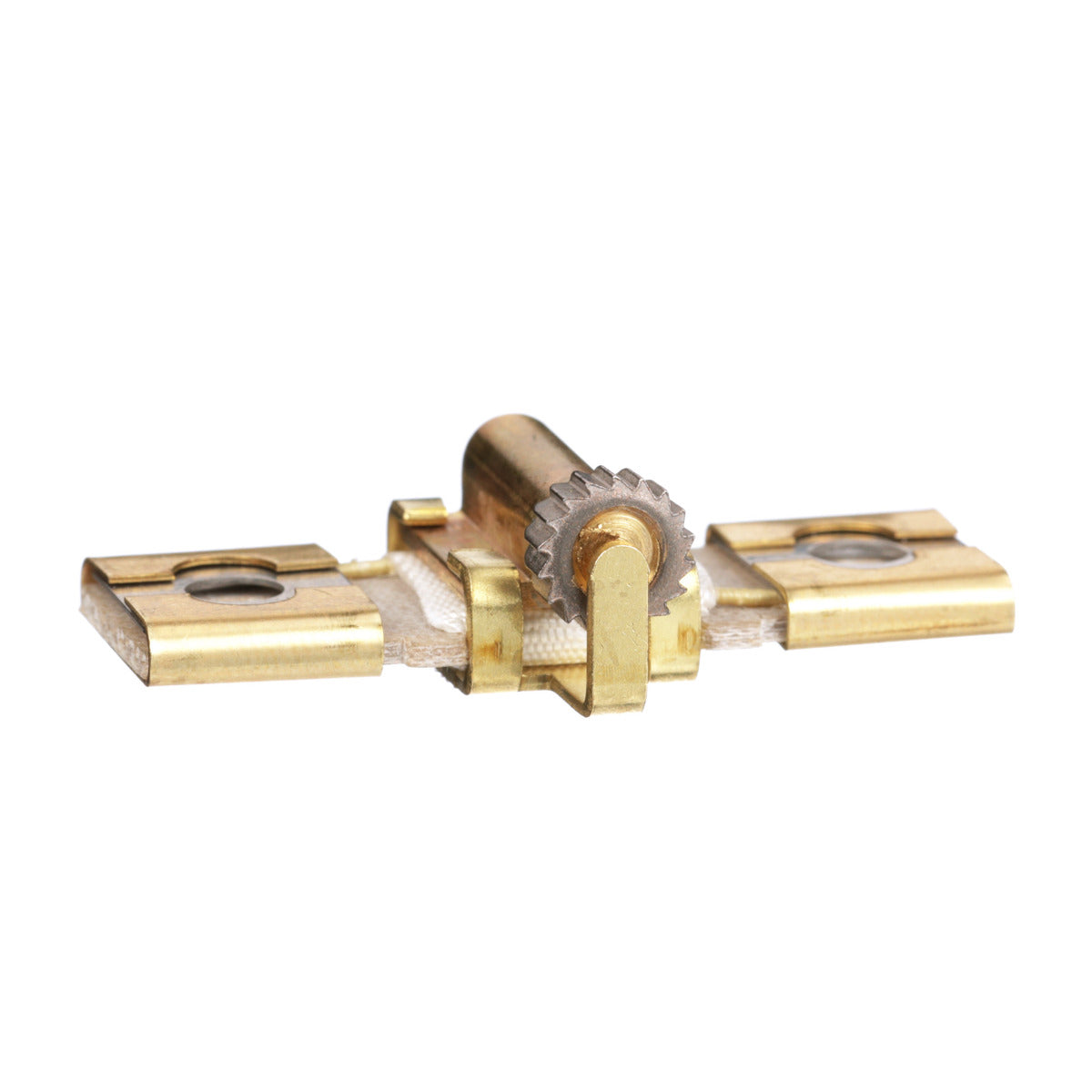

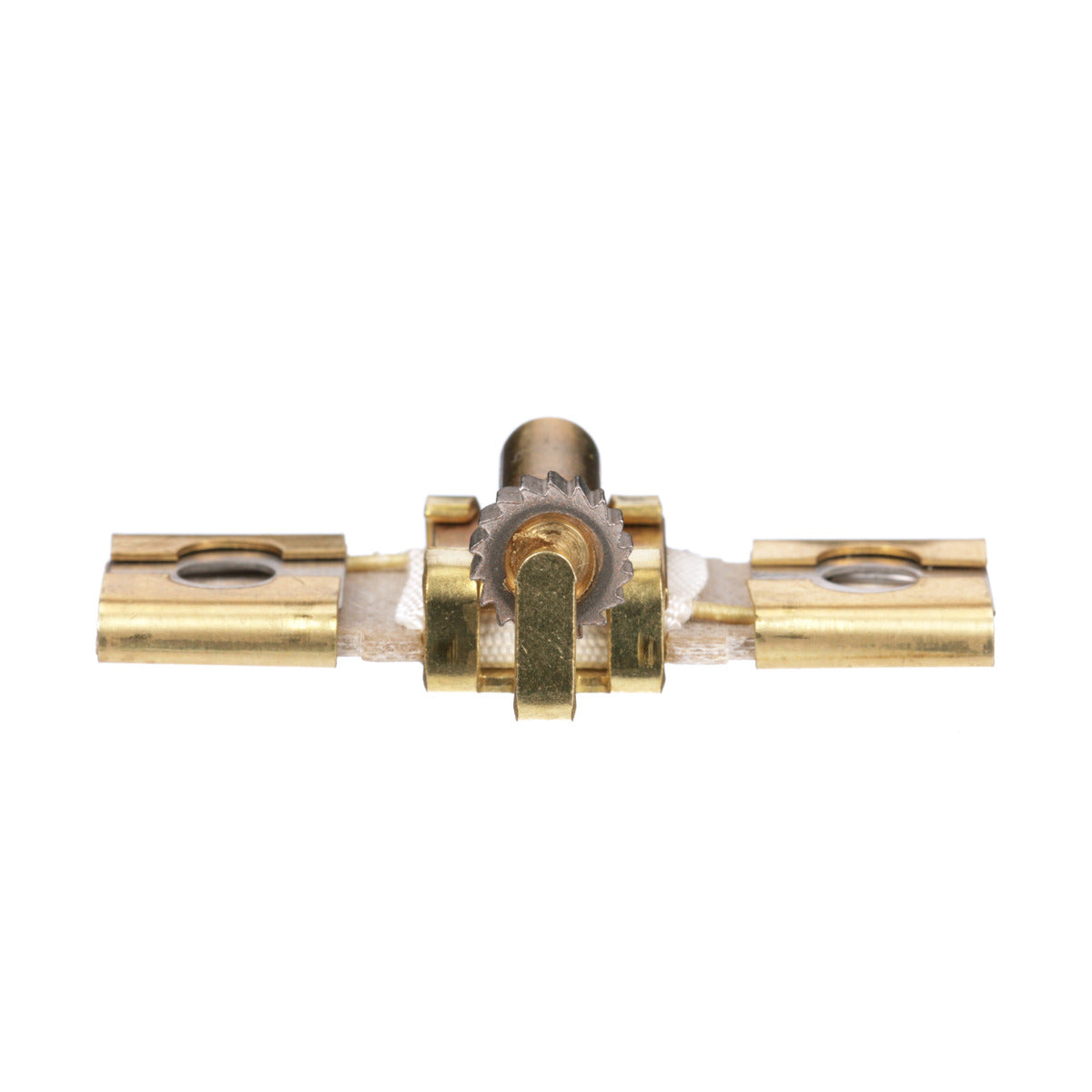

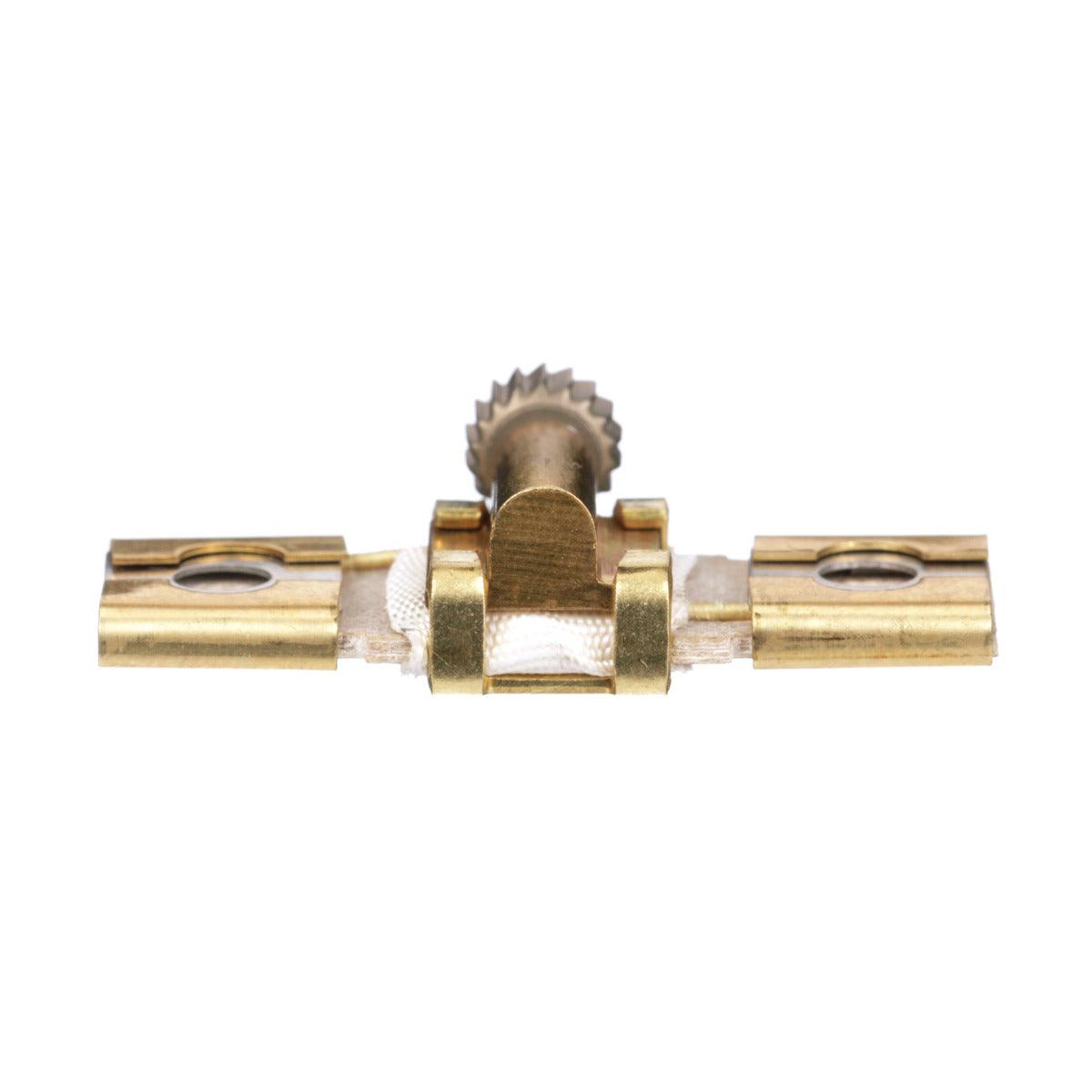

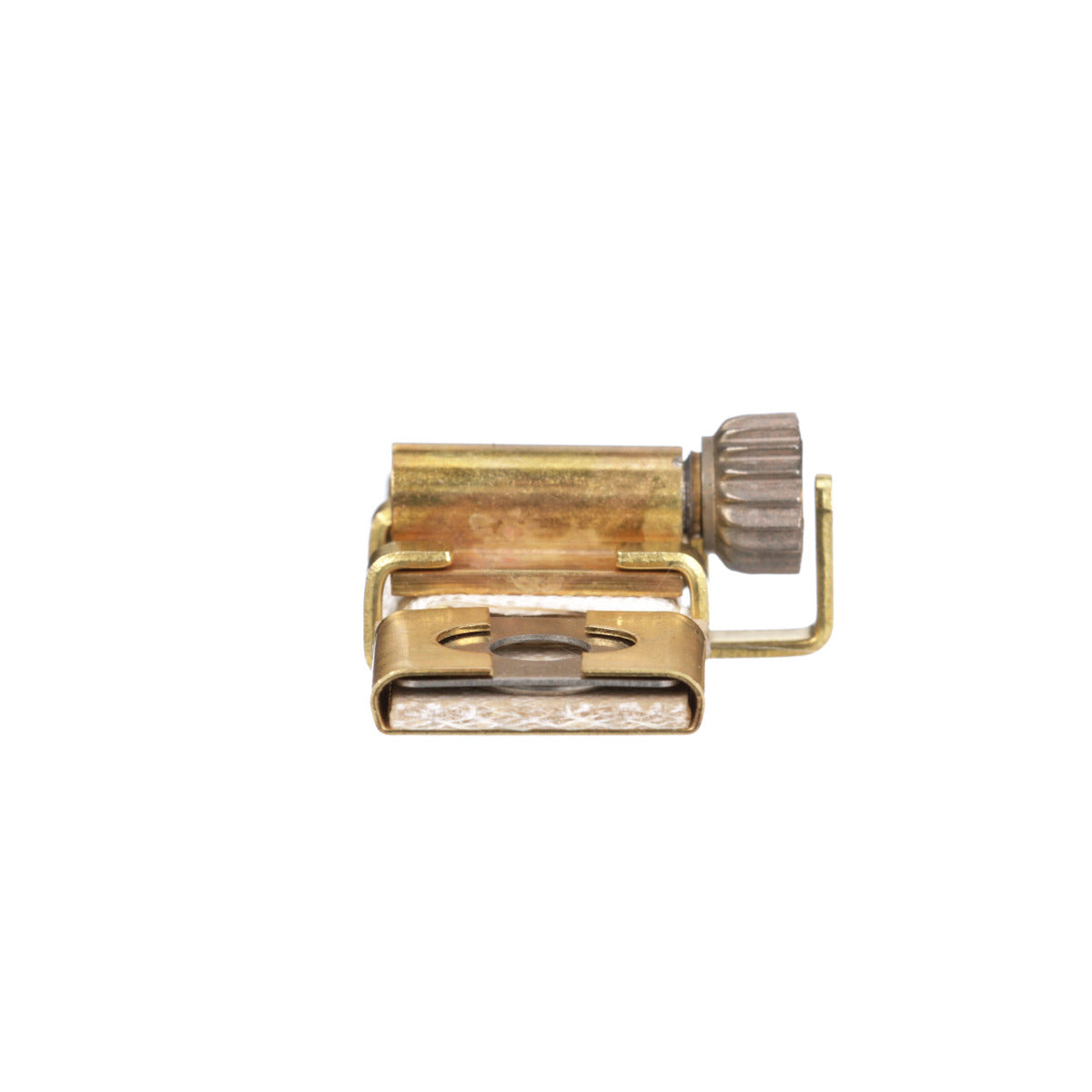

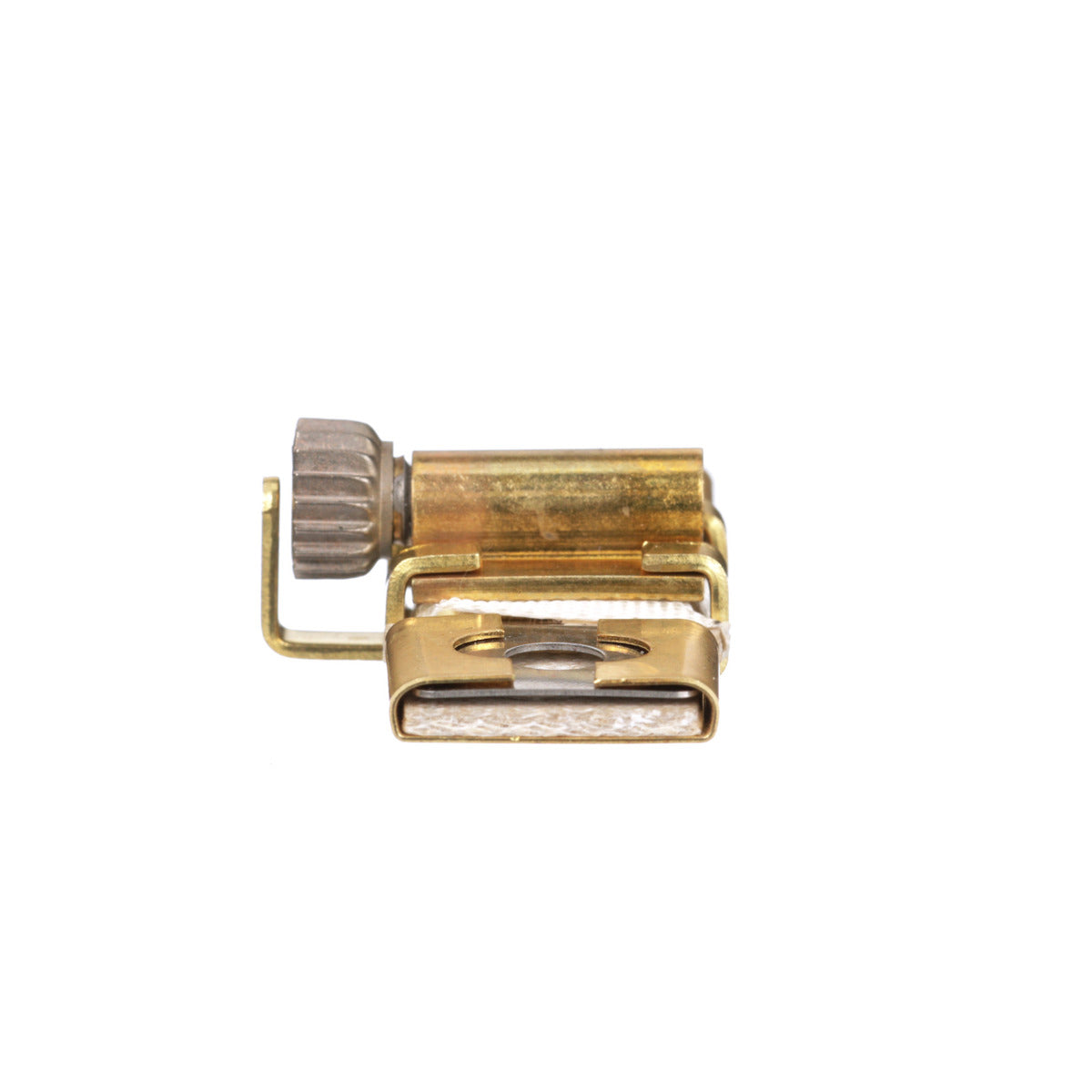

Square D B6.25 Thermal Unit Heater Element Schneider Electric Class 20

Product Description

Engineered for precise temperature control, the Square D B6.25 Thermal Unit by Schneider Electric offers reliable overload protection for motors and circuits. It safeguards against excessive heating due to prolonged motor over-currents and locked rotor conditions, ensuring safety and efficiency in industrial settings.

• Class 20 response time with standard trip mechanism.
• Pressure wire connectors support a range of solid or stranded wires.
• Designed according to NEMA standards for optimal performance.

Product Highlights

This melting alloy thermal unit features a one-piece construction that maintains its calibration after repeated tripping, preventing resets until the system has adequately cooled. UL listed and CSA certified, it supports up to 30 amps and 600 VAC or VDC, making it suitable for a variety of industrial applications.

Product Information

Standard Information

• Brand: Square D
• Model: B6.25
• Type: Melting Alloy Thermal Unit

Technical Specifications

• Full Load Amps: 3.98 to 4.89
• Country of Origin: Mexico
• Certifications: UL Component Recognized, CSA Certified
• Rated: Up to 30 Amps, 600 VAC/VDC
• Thermal Overload Type: Melting Alloy
