SQUARE D B4.85 Thermal Unit 3.64 to 4.19A

SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
SKU: B4.85
Availability: In Stock

Ships same day if ordered by 12 pm
$49.39
$49.39
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

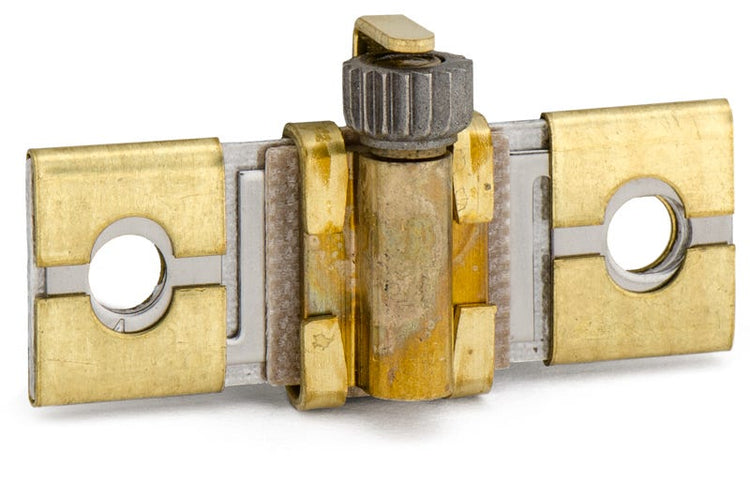

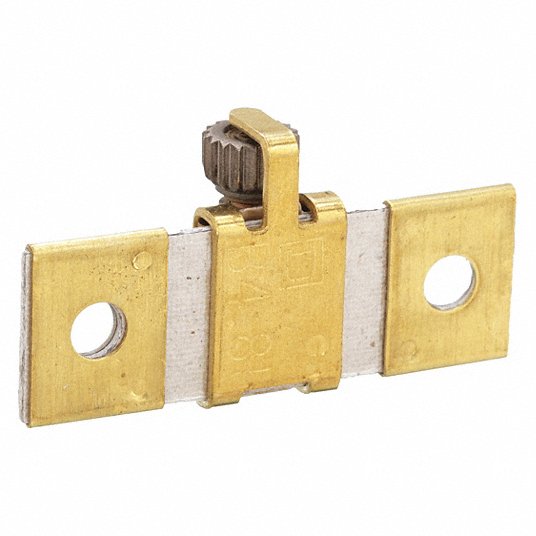

The SQUARE D B4.85 thermal unit is designed to replace faulty or outdated thermal units in overload relays. This key component ensures safety by breaking electrical connections when certain temperatures are exceeded, helping to prevent damage to connected devices. The unit utilizes a melting alloy solder material.

  • Replaces damaged thermal units in overload relays
  • Protects loads from overheating
  • Disengages circuit if current surpasses a set limit

Product Highlights

The B4.85 is essential for maintaining operational safety and efficiency in various electrical applications.

Product Information

Standard Information

  • Brand: SQUARE D
  • MPN: B4.85
Technical Specifications
Full Load Current
2.96 to 3.17 A, 3 to 3.42 A, 3.1 to 3.32 A, 3.14 to 3.59 A, 3.16 to 3.55 A, 3.17 to 3.4 A, 3.25 to 3.48 A, 3.26 to 3.5 A, 3.3 to 3.75 A, 3.38 to 3.94 A, 3.54 to 3.8 A, 3.64 to 4.19 A, 3.76 to 4.05 A, 3.76 to 4.27 A
Trip Class
20
NEMA Size
0; 00; 1; 1P; 2; 6
Compatible Frame Size
B; S
Overload Protection Type
Melting Alloy
Compatible with Grainger Part Numbers
1H41; 1H411; 1H412; 1H413; 1H414; 1H415; 1H416; 1H417; 2BW14; 2BW2; 2BW21; 2BW22; 2BW23; 2BW25; 2BW31; 2BW35; 2BW7; 2PYD9; 2PYE6; 48P834
Compatible with Manufacturer Model Numbers
2510MBA1; 2510MBA2; 2510MBG1; 2510MBG2; 2510MBO1; 2510MBO2; 2510MBW1; 2510MBW11; 2510MBW12; 2510MBW2; 2510MCA1; 2510MCA2; 2510MCA3; 2510MCG1; 2510MCG2; 2510MCG3; 2510MCO3; 2510MCW1; 2510MCW11; 2510MCW13; 9065SEO8
Series
B
Motor FLA
3.64 to 4.19 Amp (1 Thermal Unit), 3.25 to 3.48 Amp (3 Thermal Unit)
Mounting
Plug-In
Standard Package
6
Trip Type
Class 20, Standard
Used On
Overload Relay
