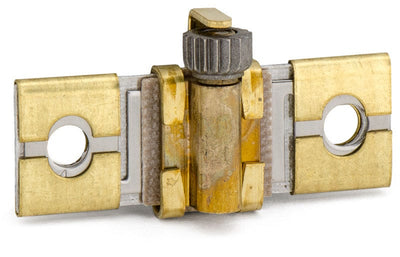

Square D B36.0 Thermal Unit

Product Description

The Square D B36.0 Thermal Unit is engineered to safeguard motors, controllers, and branch-circuit conductors from overheating due to prolonged over-currents. Designed by Schneider Electric, MPN B36.0, it operates efficiently by responding to overload current conditions and tripping within 20 seconds or less. This unit is encased in a single piece construction and includes a heater winding that melts a specialized solder to open the motor contacts during overloads.

• Provides motor overload protection
• One-piece construction
• Calibrated for a range of motor full load currents

Product Highlights

This thermal unit offers critical protection for motors and controllers by quickly responding to dangerous over-current conditions.

Product Information

Standard Information

• Brand: Square D
• MPN: B36.0
• Manufacturer: Schneider Electric
• Country of Origin: Mexico

Technical Specifications

• Full Load Amps: 19.70 to 29.1
• Sensing Method: Melting Alloy
• Motor Tripping Class: 20
• Reset Type: Manual
• Certifications: UL listed, CSA certified
• Warranty Length: 18 months
• AIC Rating: 200,000 Amp
• Product UPC: 785901587583
