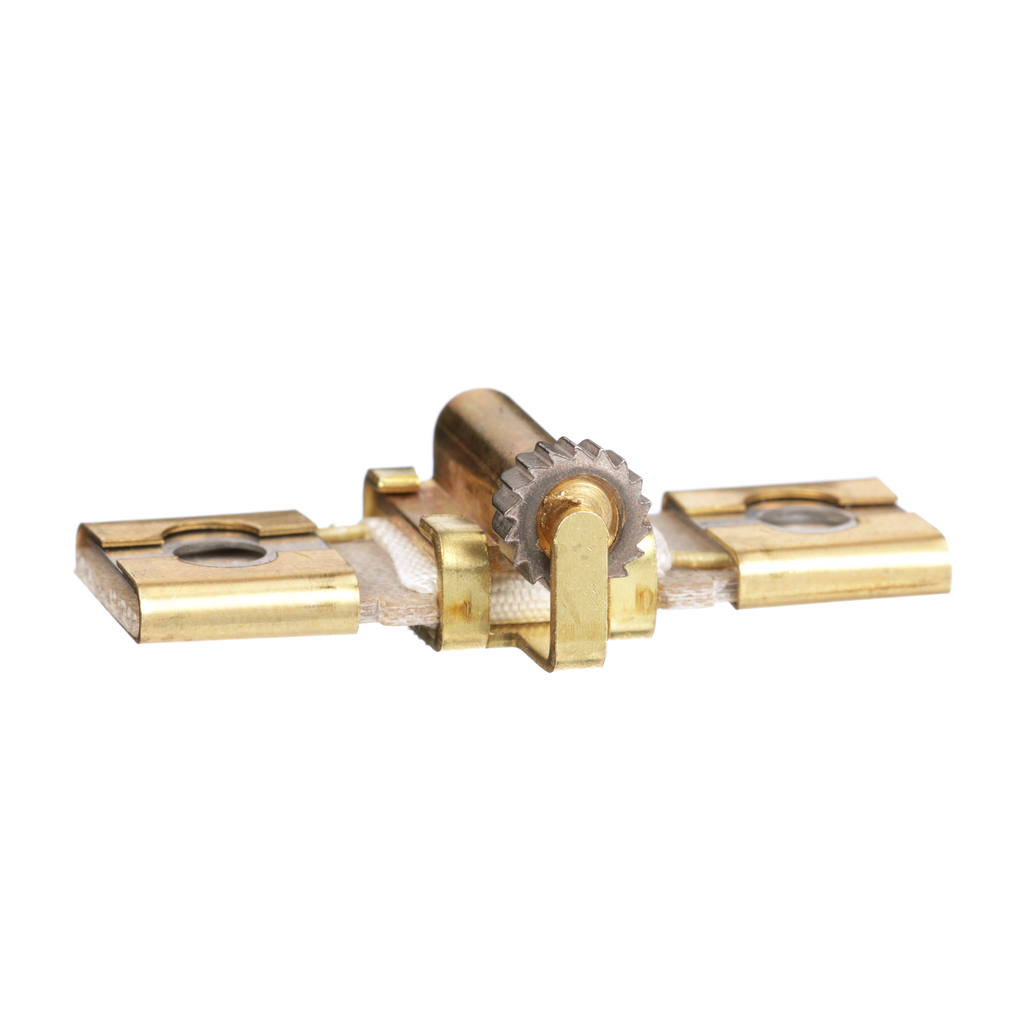

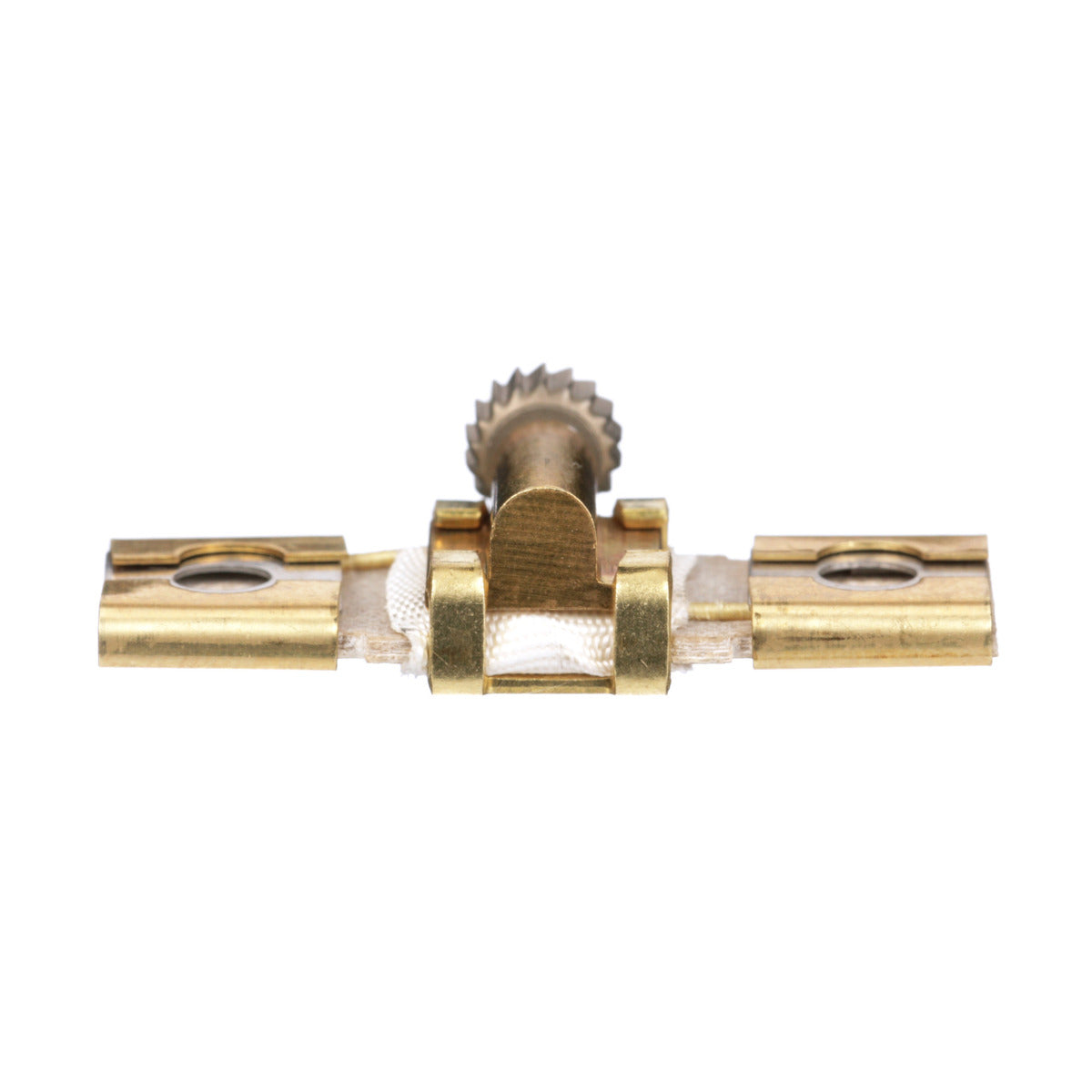

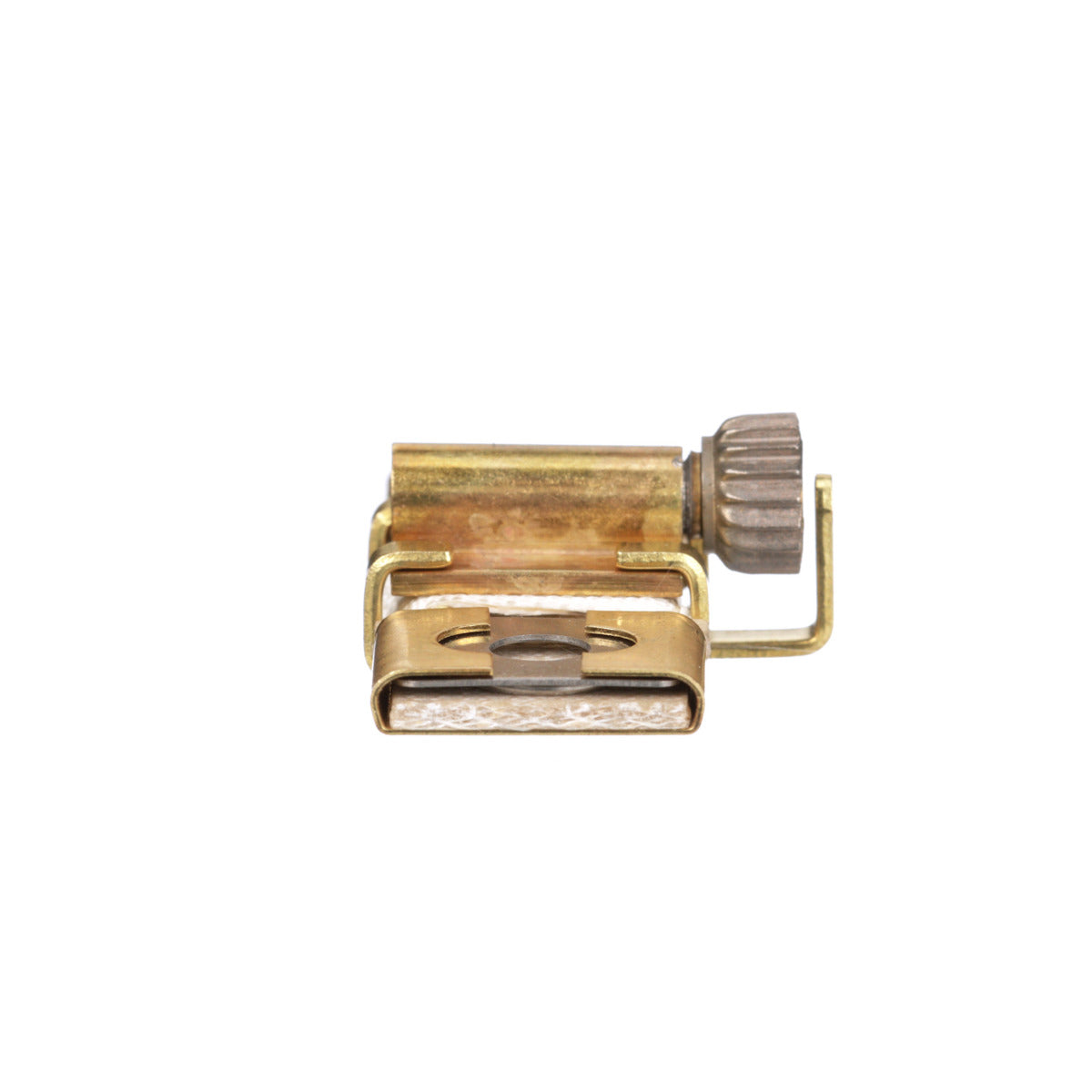

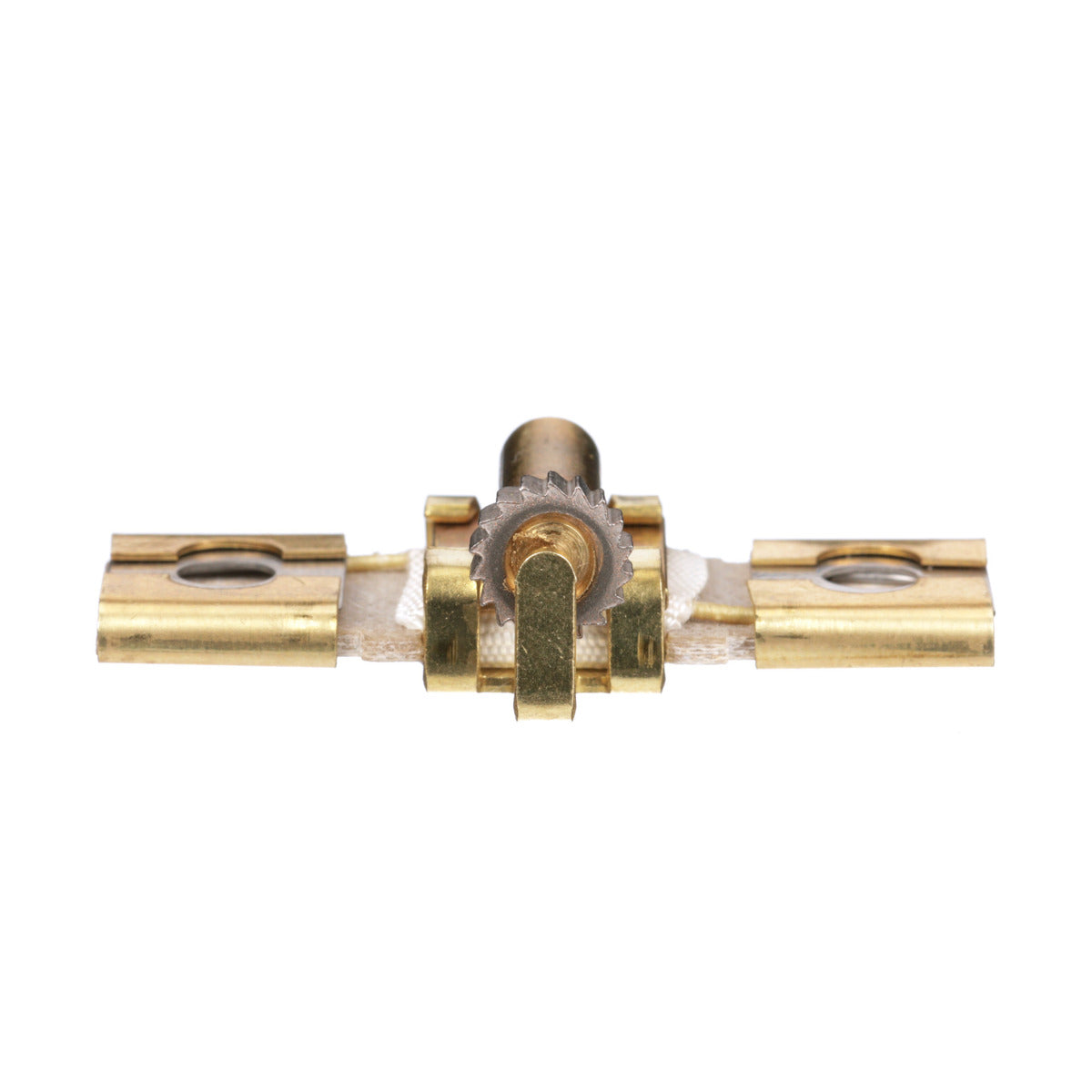

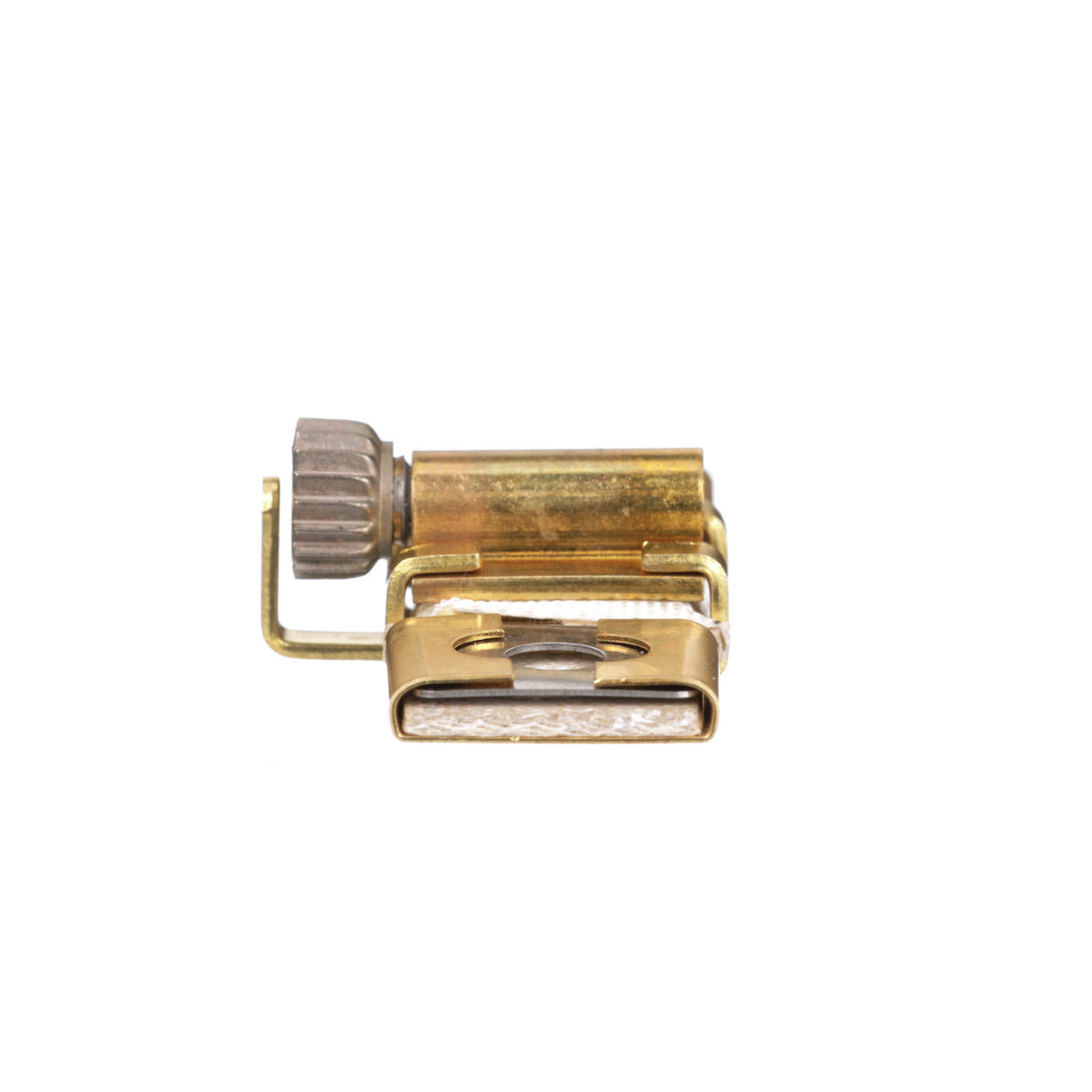

Square D B25.0 Thermal Unit 14.1 to 19.2A for Motor Starters 00, 0, 1, 1P, 2

Product Description

The Square D B25.0 Thermal Unit by Schneider Electric offers critical protection for motors, controllers, and branch-circuit conductors. Designed to handle excessive heating caused by prolonged motor over-currents, including locked rotor currents, this thermal unit is essential for preventing damage in industrial applications.

• Protection against overloads and short circuits
• One-piece construction for ease of use
• Manual reset with settable calibration options

Product Highlights

Ensures motor safety and reliability by preventing overheating and potential damage. Compact design simplifies installation. Customizable to specific circuit requirements for optimal protection.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric
• Country of Origin: Mexico

Technical Specifications

• MPN: B25.0
• Full Load Amps: 14.1 to 19.2
• Trip Type: Class 20
• Sensing Method: Melting Alloy
• Reset Type: Manual
• AIC Rating: 10,000 Amp
• Warranty: 18 months
• Certifications: UL Listed, CSA Certified
