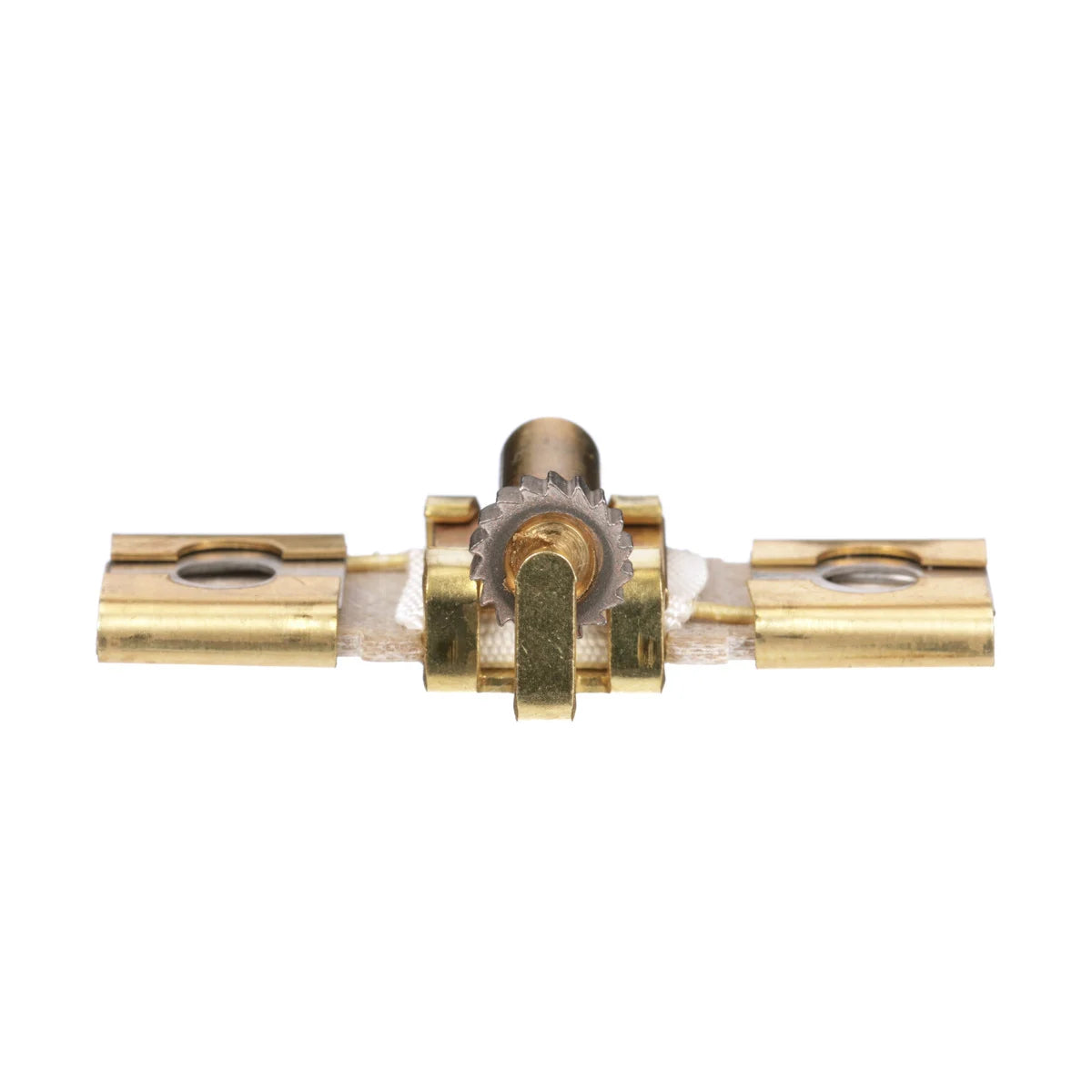

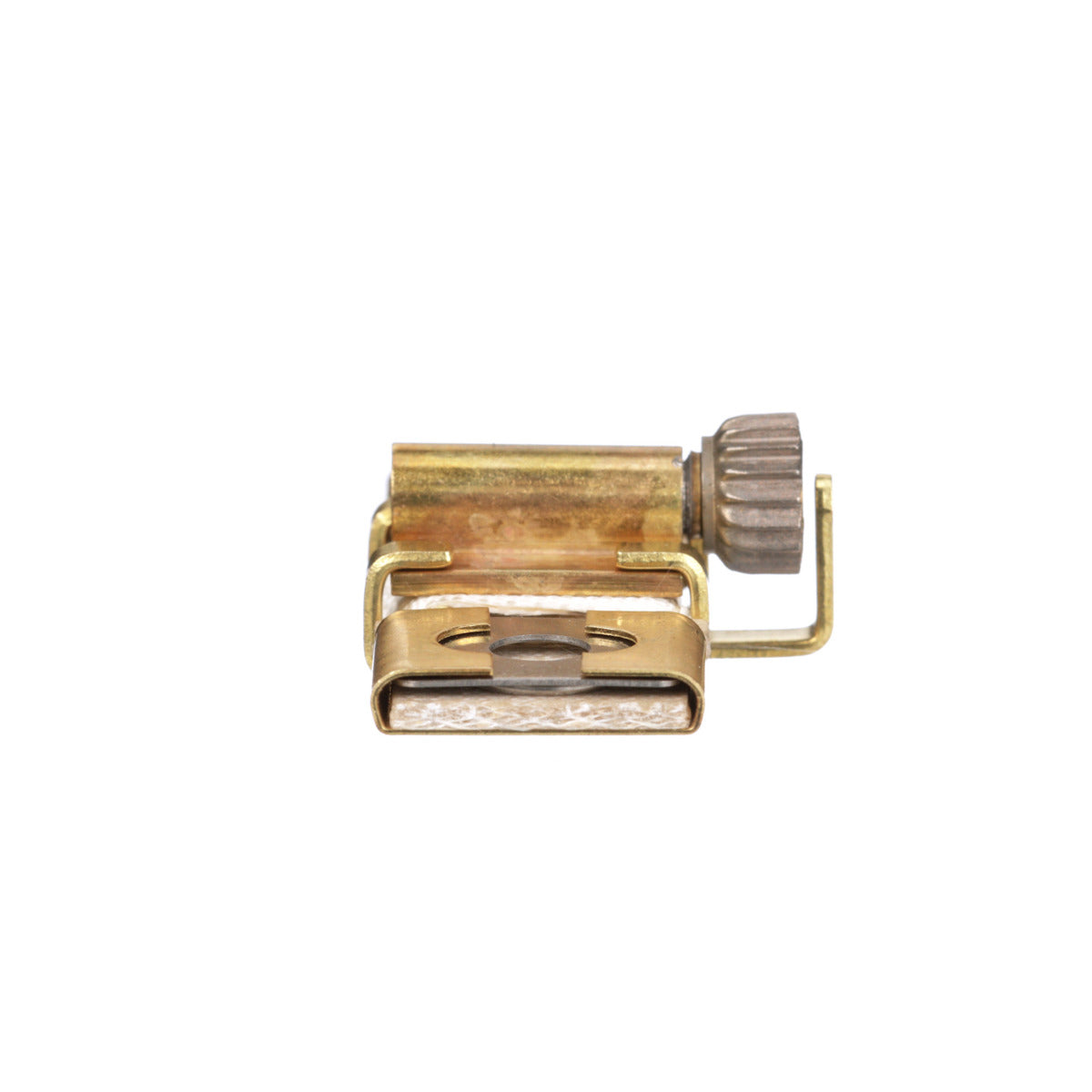

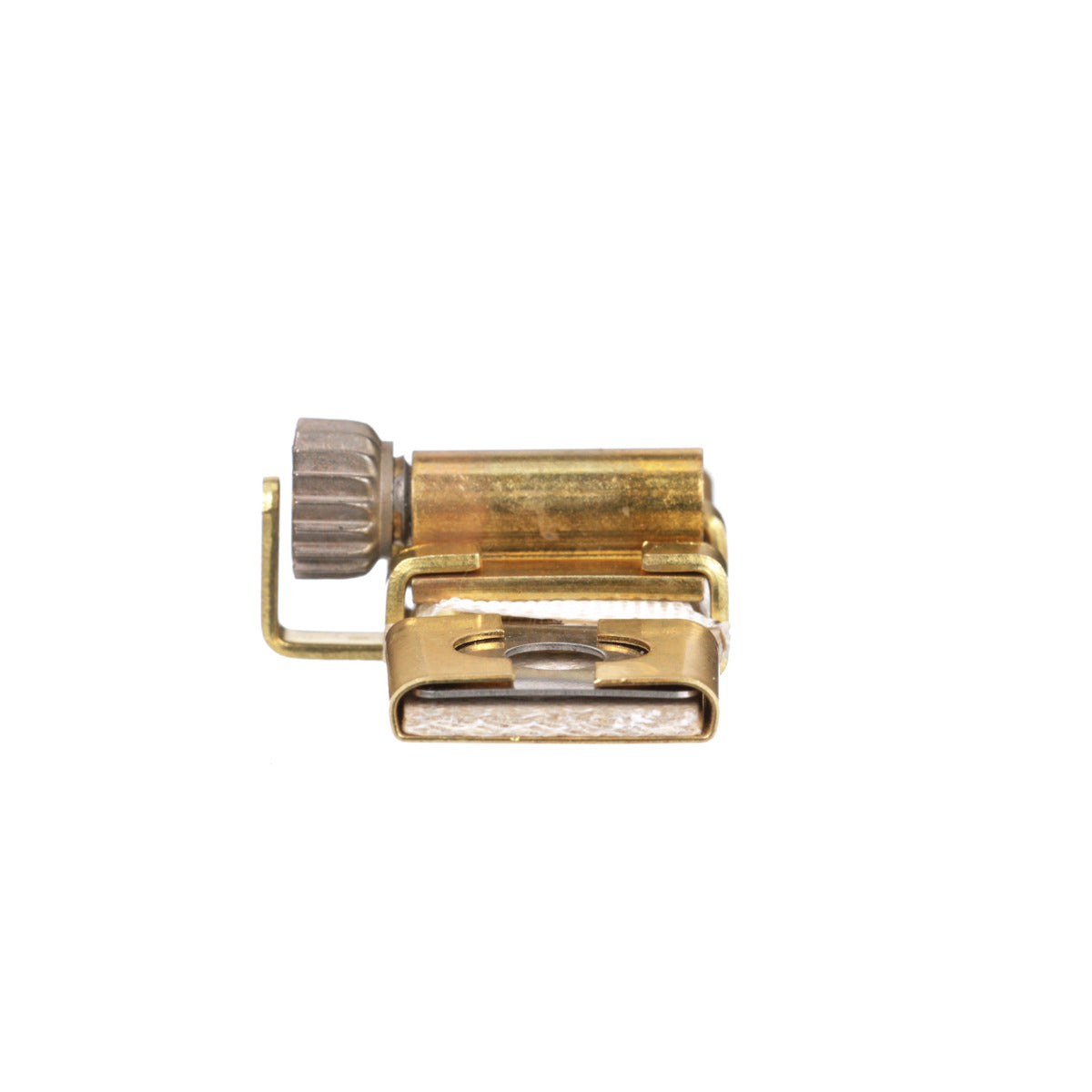

Square D B2.10 Thermal Unit

Product Description

The Square D B2.10 thermal unit is designed to provide overload protection for motors, controllers, and conductors. It works by interrupting the circuit during overload conditions. The thermal unit operates on class H, R, CC, M, and J fuses with a maximum rating of 200 Amps.

• Calibration is set for a range of motor full load currents.
• Designed for melting alloy thermal units.
• Employs one-piece construction to enhance reliability.

Product Highlights

This thermal unit responds to overload conditions and trips in twenty seconds or less, offering essential protection for connected motors.

Product Information

Standard Information

• Catalog Number: B2.10
• Brand: Square D

Technical Specifications

• Type: Thermal - Melting Alloy Thermal Unit
• Trip Type: Standard Trip - Class 56
• Reset Type: Manual
• Applications: For use in melting alloy thermal overload relays
• Certifications: CE
• Warranty Length: 18 months
• Country of Origin: Mexico
