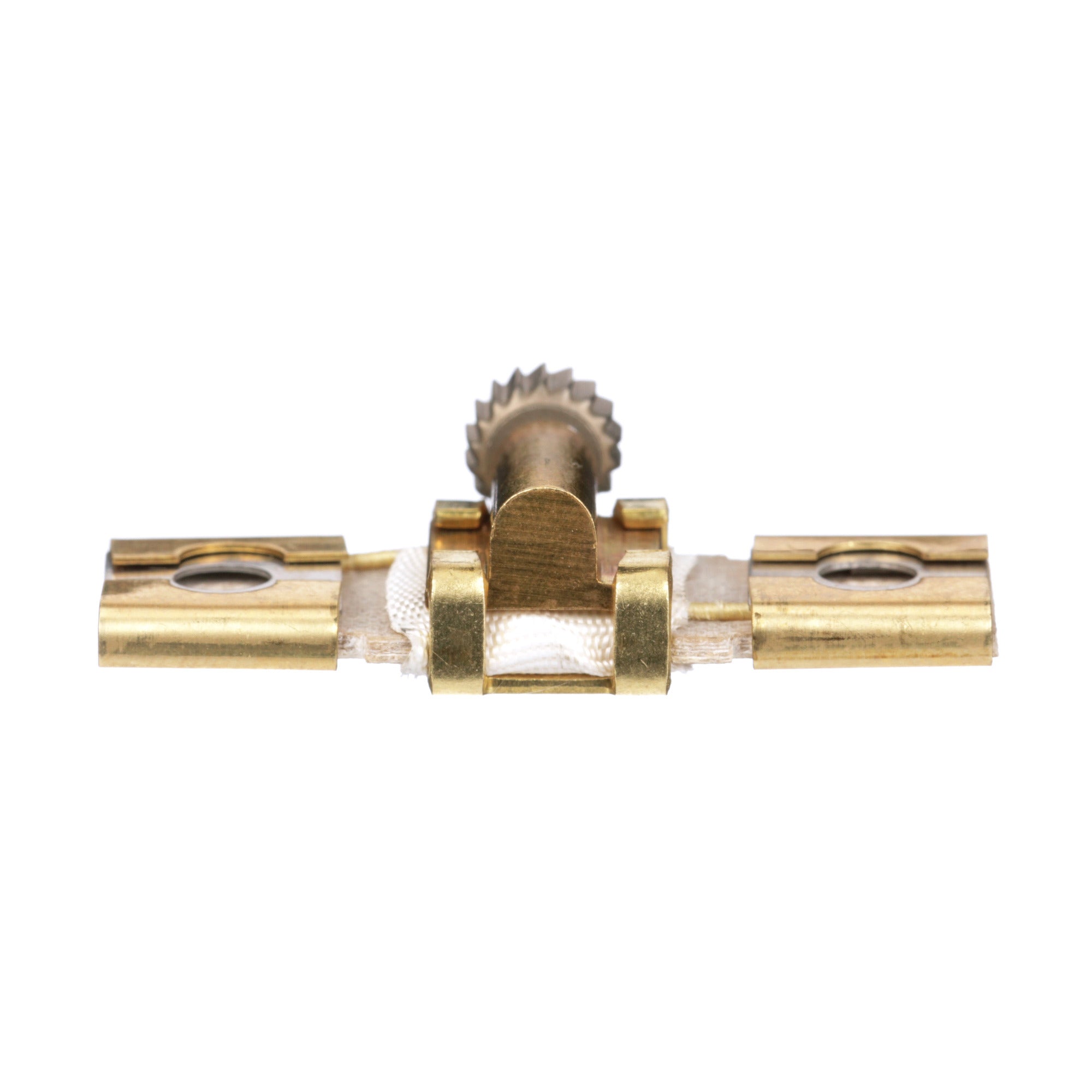

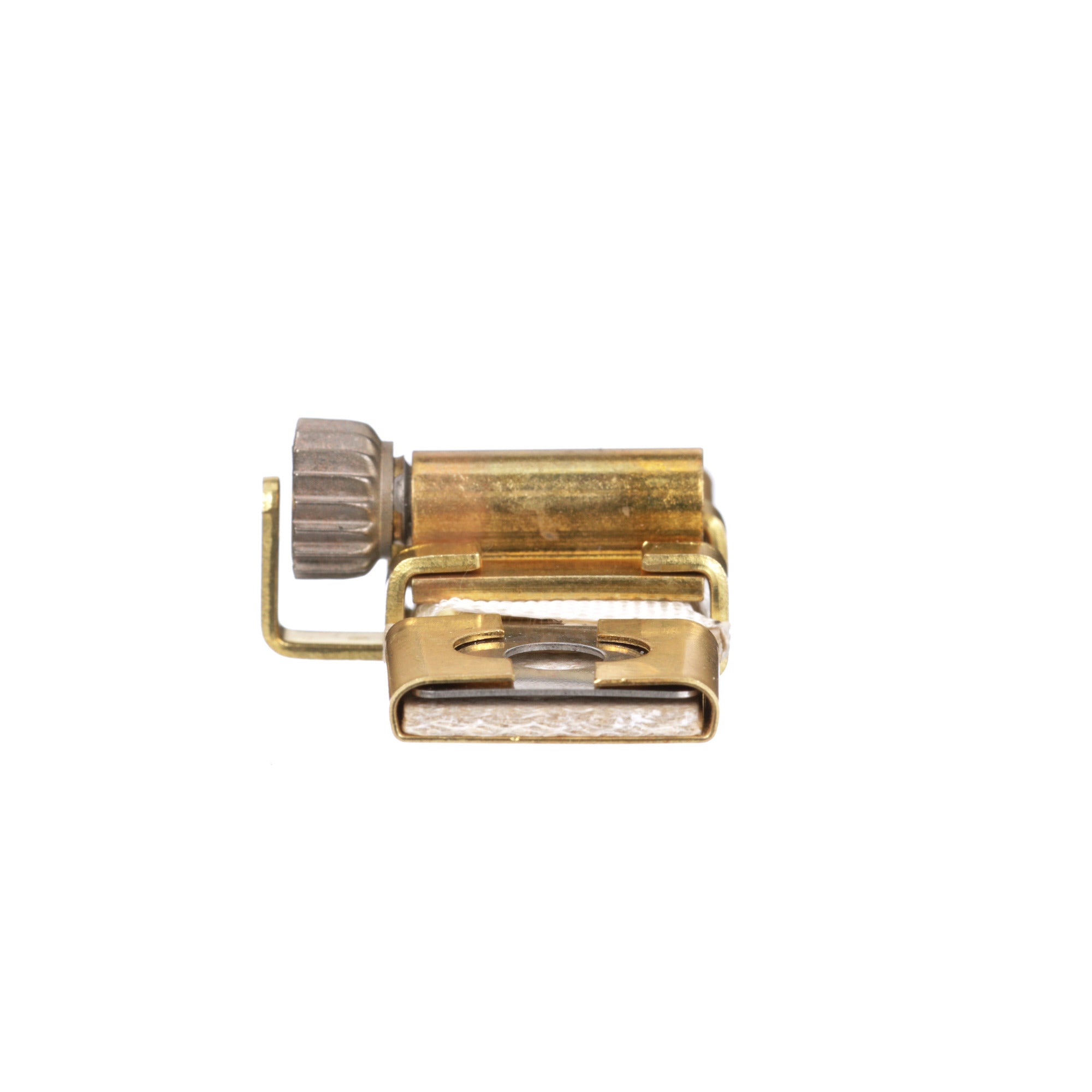

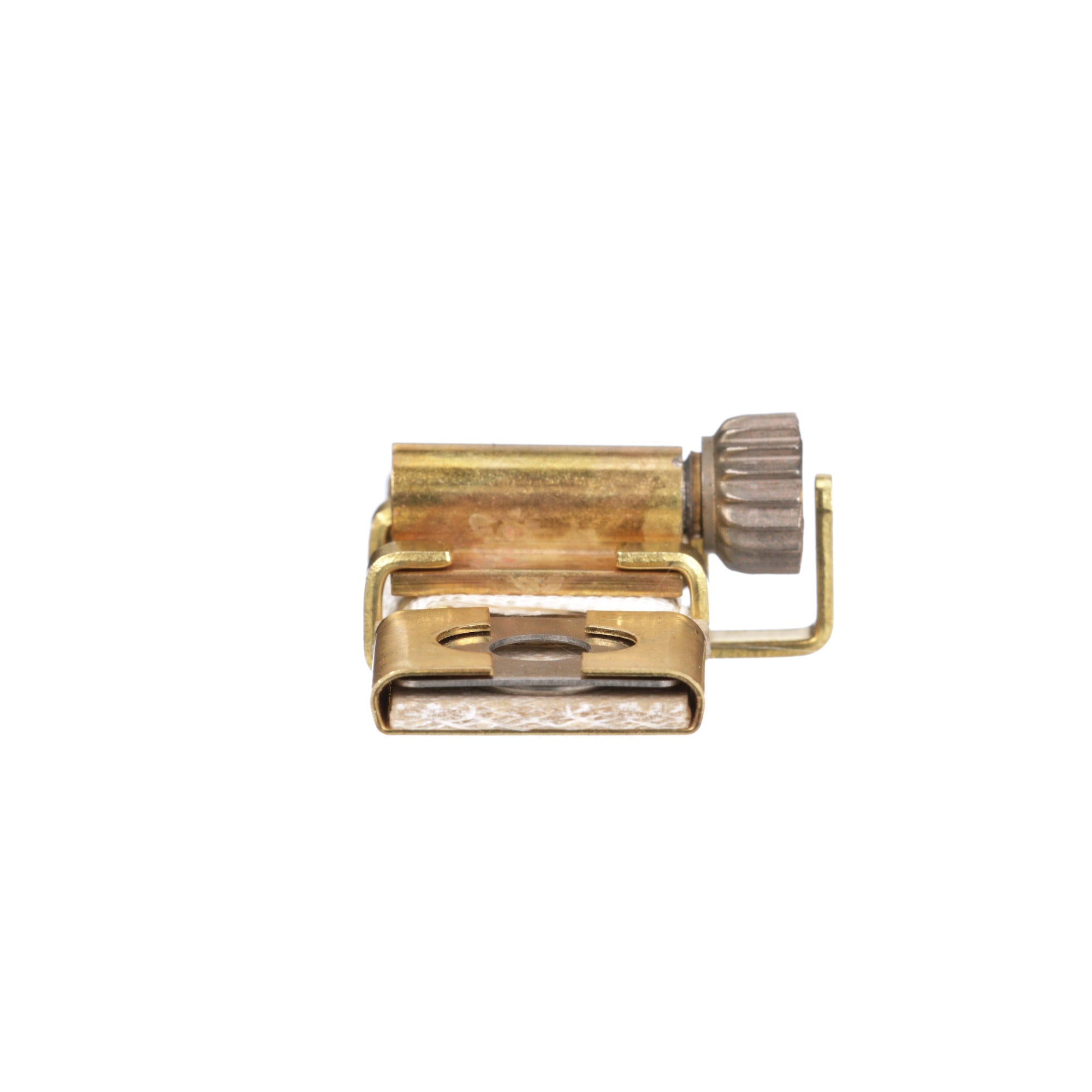

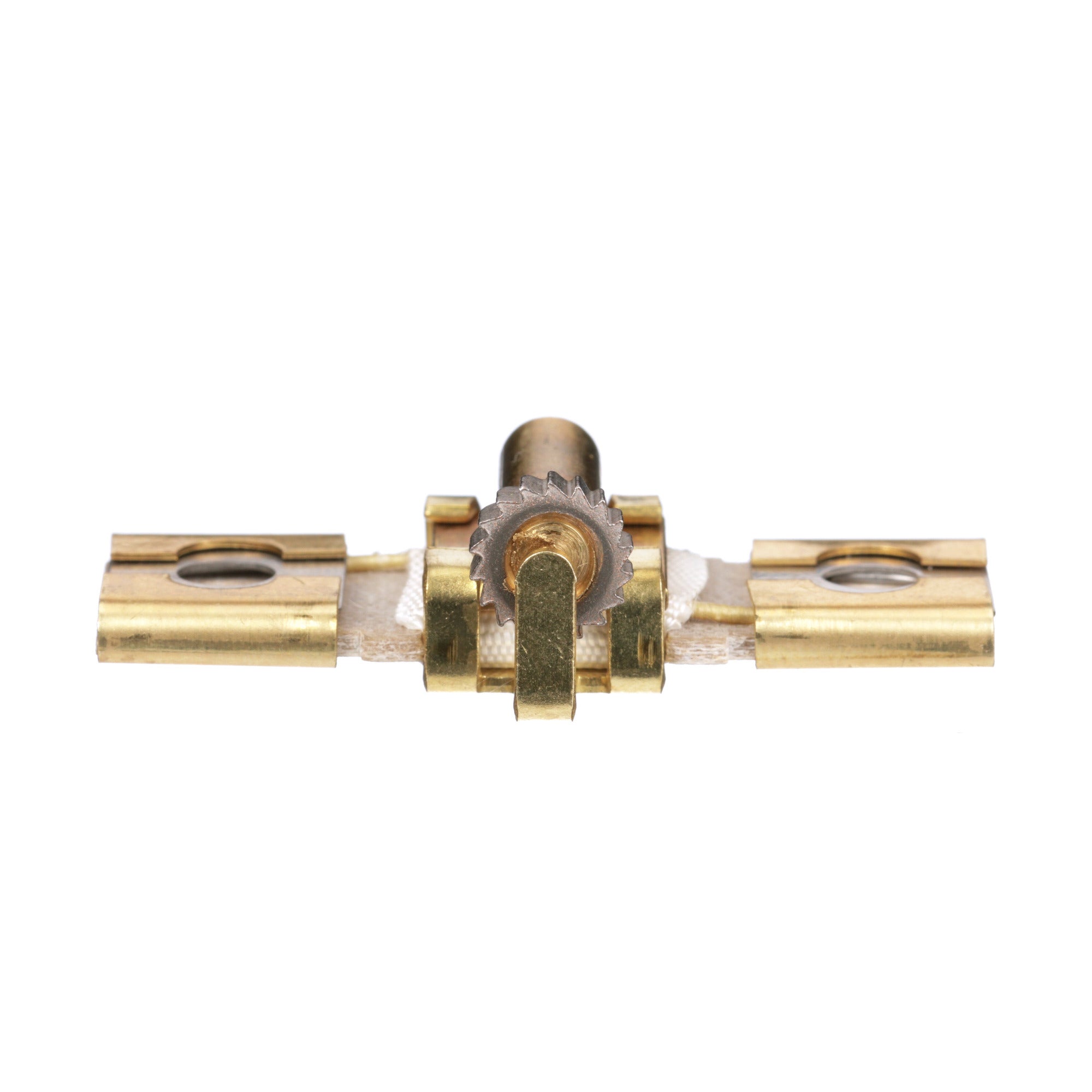

Square D B1.30 Thermal Unit, Type S, Type B, melting alloy, Class 20

Product Description

The Square D B1.30 is a thermal unit designed to protect motors and other electrical components from overheating caused by prolonged over-currents. This product is part of Schneider Electric’s thermal overload series and responds quickly to overload conditions, ensuring reliable motor protection.

• Protects against excessive heating due to motor over-currents
• Response time: trips within twenty seconds under overload conditions
• One-piece construction for enhanced durability

Product Highlights

The B1.30 is ideal for industrial applications where motor protection is essential, effectively safeguarding equipment from damage due to electrical overloads.

Product Information

Standard Information

• Catalog Number: B1.30
• Brand: Square D

Technical Specifications

• Manufacturer: Schneider Electric
• Thermal Overload Type: Melting alloy
• Motor Tripping Class: 20
• Full Load Current: 0.82 to 388 A
• Voltage Rating: 600 VAC
• Temperature Rating: 40°C
• Country of Origin: United States
• Warranty Description: Contractual Warranty: 18 months
