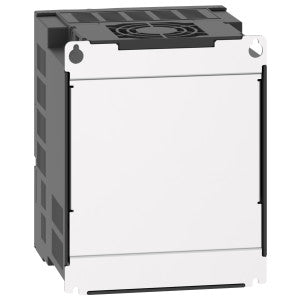

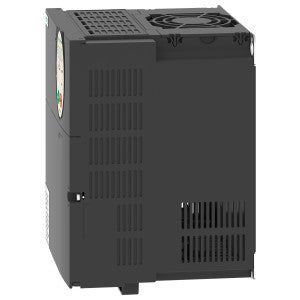

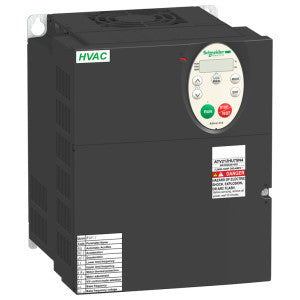

Square D ATV212HD11N4 Speeddrive 380-480Vac 15Hp ATV212

Product Description

The Square D ATV212HD11N4 is a Speeddrive designed for use with three-phase input voltages ranging from 380 to 480 VAC. It provides reliable control for various applications, especially pumping, ventilation, and HVAC systems.

• Input voltage: 380 to 480 VAC at 50/60 Hz.
• Variable torque of fifteen horsepower.
• IP20, IP21, and IP41 rated enclosure for protection.

Product Highlights

Ideal for use in commercial settings, the ATV212HD11N4 supports energy-efficient operations and is compatible with numerous communication protocols.

Product Information

Standard Information

• Brand: Square D
• Model Number: ATV212HD11N4

Technical Specifications

• Input Current: 21.1 Ampere at 380 VAC, 16.8 Ampere at 480 VAC
• Output Voltage: 380 to 480 V 3-Phase
• Enclosure Rating: IP20, IP21, IP41
• Dimensions: 180 mm W x 170 mm D x 232 mm H
• Approval Standards: UL, CSA, CE, C-TICK, NOM 117
• Control Panel Type: Local/Remote Keypad
• Transient Current: 24.8 Ampere
• Weight: 6.45 kg
