Square D AL800P7K Circuit Breaker Access 800A (Aluminum Lug Kit) Replacement MPN

Product Description

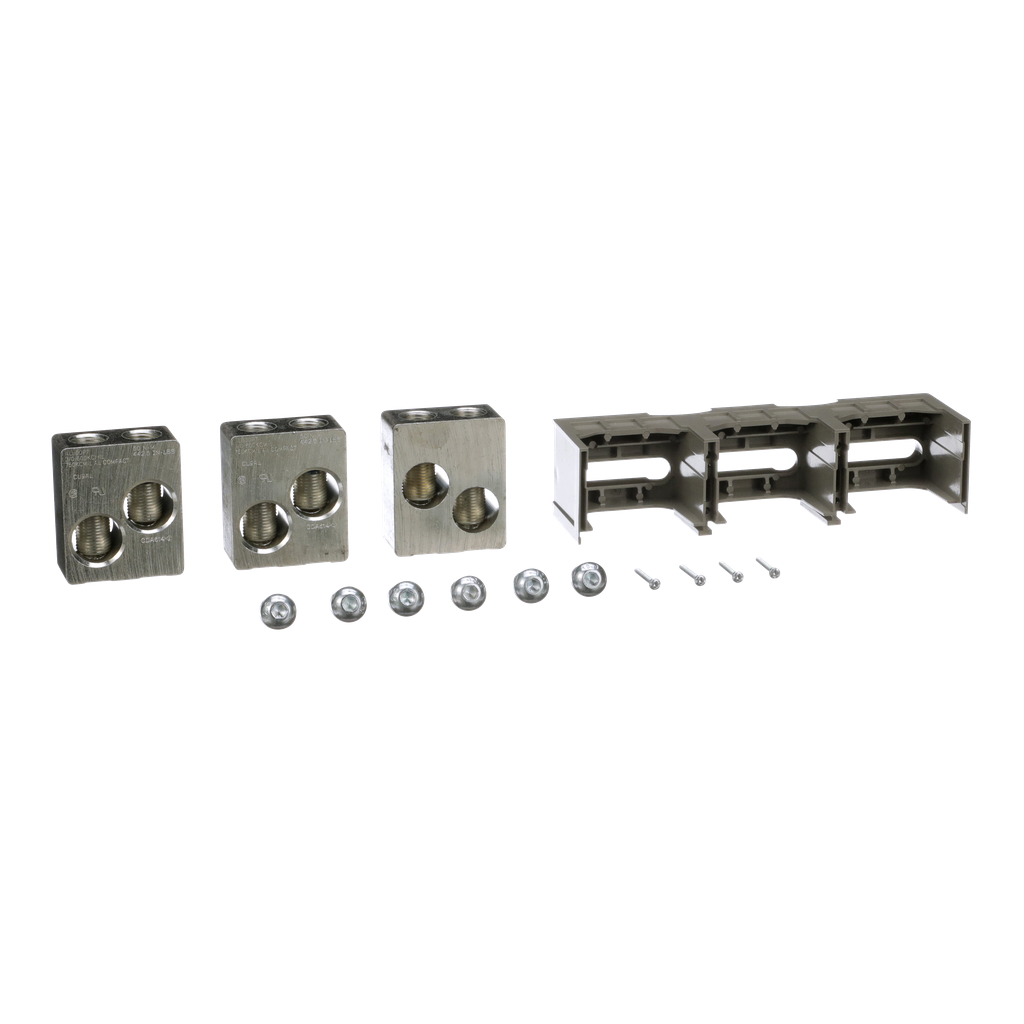

The Square D AL800P7K is a circuit breaker access solution designed for PowerPacT M and P circuit breakers. This aluminum lug kit allows for easy modifications within any design and build cycle. Rated at eight hundred amps, the aluminum lugs accommodate conductor sizes ranging from three aught AWG to seven hundred fifty kcmil for both aluminum and copper connections, with specific compatibility for seven hundred fifty kcmil compact aluminum conductors.

• Rated for 800A
• Compatible with AWG 3/0 to 750 KCMIL conductors
• Complies with UL and CSA Standards

Product Highlights

This mechanical lug kit is crucial for ensuring reliable cable connections in electrical systems.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: AL800P7K
• Amperage: 800 Amp
• Material: Aluminum
• Trip Range: 800 A
• UPC: 785901968467
• Applications: Cable Connection
• Mounting Type: Unit Mount
• TC Connection: AWG 3/0 to 750 KCMIL Aluminum/Copper
• Certifications: CSA, UL
• Warranty Length: 18 months
• Country of Origin: USA
