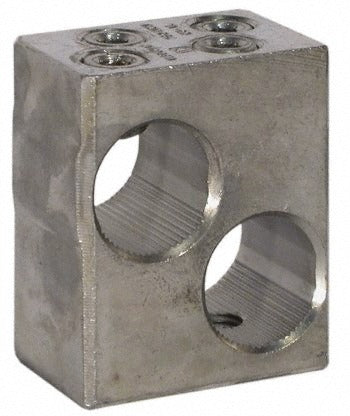

Square D AL800MA7 Mechanical Lug Kit

Product Description

The SQUARE D AL800MA7 is a mechanical lug kit designed as an accessory for Square D circuit breakers. Mechanical lug kits provide a direct wire termination point on a breaker, allowing conductors to land without a separate connector or bus splice. This type of accessory is installed by licensed electricians during panel builds, service upgrades, or breaker replacements where lugged terminations are required in place of standard clip-on terminals. The AL800MA7 weighs 1.09 pounds and fits within a compact footprint suited to standard panel installations.

This lug kit is intended for use in residential and commercial electrical distribution panels where Square D breakers are installed. It is a common component in new construction panel builds, service entrance replacements, and retrofits requiring direct cable lugging at the breaker. Electricians working with large-gauge feeder conductors or aluminum wiring applications will find this kit suited to those terminal configurations.

Key Features

• Mechanical lug design for direct conductor termination at the circuit breaker
• Compatible with Square D circuit breakers as specified by the manufacturer
• Compact package dimensions of 6.1 inches by 4.2 inches by 3 inches
• Lightweight at 1.09 pounds for easy handling during panel work
• Sold as a single kit per package

Compatibility

Designed for use with Square D circuit breakers as an OEM-style accessory lug kit. Refer to the Square D breaker documentation or panel schedule to confirm this lug kit is the correct termination accessory for the specific breaker model being serviced.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize and lock out the panel before beginning any termination work. Torque all lug fasteners to the values specified on the breaker or lug kit label. Do not exceed the conductor size range rated for this lug kit.
