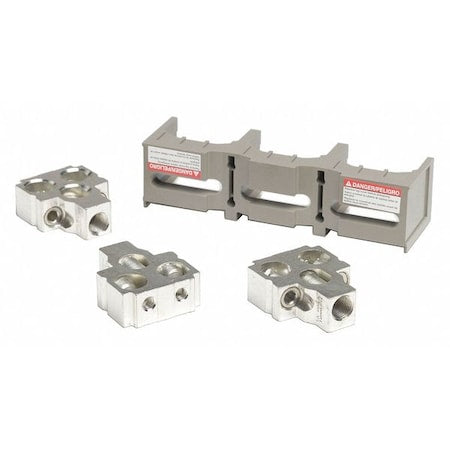

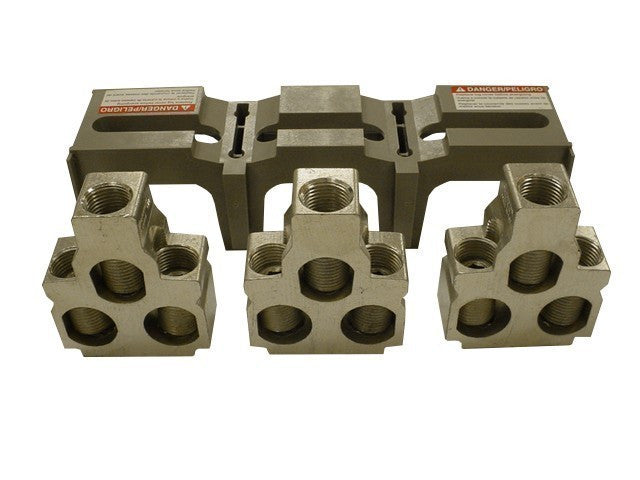

Square D AL800M23K Circuit Breaker Mechanical Lug Kit 800 Amp (3-Pack)

Product Description

The Square D AL800M23K is a mechanical lug kit for circuit breakers. These lugs are rated for 800A and accept 3/0 AWG to 500kcmil aluminum conductors. This kit is designed for PowerPact M and P circuit breakers and complies with UL and CSA standards. The kit provides a convenient solution for modifying circuit breakers in commercial and industrial applications.

• Rated for 800A
• Accepts 3/0 AWG to 500kcmil aluminum conductors
• Complies with UL and CSA standards

Product Highlights

Mechanical lug kit for PowerPact M and P circuit breakers. Rated for 800A and accepts 3/0 AWG to 500kcmil aluminum conductors.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: AL800M23K
• Country of Origin: United States

Technical Specifications

• Type: CIRCUIT BREAKER LUG KIT
• Brand: Square D™
• Frame: M AND P
• Amperage: 800 Amp
• Material: Aluminum
• Applications: M-frame;P-frame
• Mounting Type: I-Line,Unit Mount
• TC Connection: LUGS (BOTH ENDS) #8 TO #1/0 AWG(AL) #14 TO #1/0 AWG(CU)
• Certifications: CSA,UL
• Country of Origin: US
• Line Rated Current: 800-800 A
• Circuit Breaker Type: M-Frame,P-Frame
• Catalog Number: AL800M23K
• Manufacturer: Schneider Electric
• Made in USA: Yes
• UPC: 785901463764
• GTIN: 00785901463764
• Maximum Breaker Current Rating: 800 Ampere
• Number of Conductors: 3
• Minimum Conductor Size: 3/0 AWG
• Maximum Conductor Size: 500 KCMIL
• Conductor Material: Aluminum/Copper
• Body Material: Aluminum
• Quantity: 3
• Used On: PowerPact M/P Frame and Compact NS630B/NS800 Circuit Breaker
• range_of_product: PowerPact M || PowerPact P
• accessory_separate_part_category: connection accessory
• product_or_component_type: mechanical lug
• quantity_per_set: 3
• tightening_torque: 50-50 N.m 95-240 mm² (AWG 3/0...500 kcmil)
• aluminium: aluminium
• mounting_mode: unit mount || I-Line
• kcmil_size: 500 kcmil
• location_of_connection: downstream || upstream
• awg_gauge: AWG 3/0...500 kcmil aluminium/copper
• product_certifications: UL || CSA
• rohs_exemption_information: Yes
• packaging_made_with_recycled_cardboard: No
• mercury_free: Yes
• packaging_without_single_use_plastic: No
• reach_regulation: Reference contains Substances of Very High Concern above the threshold
• china_rohs_regulation: Product out of China RoHS scope. Substance declaration for your information.
• circularity_profile: N/A
• take_back: No
• pvc_free: Yes
• eu_rohs_directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Item [Specifications]: Circuit Breaker Mechanical Lug Kit (3)
• Material [Specifications]: aluminium
• Awg Gauge [Specifications]: AWG 3/0...500 kcmil aluminium/copper
• Kcmil Size [Specifications]: 500 kcmil
• Product Type [Specifications]: Circuit Breaker Mechanical Lug Kit (3)
• Mounting Mode [Specifications]: unit mount || I-Line
• Accessory Type [Specifications]: Circuit Breaker Mechanical Lug Kit (3)
• Tightening Torque [Specifications]: 50-50 N.m 95-240 mm2² (AWG 3/0...500 kcmil)
• Line Rated Current [Specifications]: 800-800 A
• Circuit Breaker Type [Specifications]: M-frame || P-frame
• Location Of Connection [Specifications]: downstream || upstream
• Product Certifications [Specifications]: UL || CSA
• Product Or Component Type [Specifications]: mechanical lug
• Accessory / Separate Part Category [Specifications]: connection accessory
• Country of Origin (subject to change) [Specifications]: United States
• Alternate Catalog Number: AL800M23K
• Amperage Rating: 800 A
• Application: M-frame;P-frame
• ARRA Compliant: N
• Buy American Compliant: N
• Connection: LUGS (BOTH ENDS) #8 TO #1/0 AWG(AL) #14 TO #1/0 AWG(CU)
• Conductor Range: 8 to 1/0 AWG, 14 to 1/0 AWG
• Suitable For Use With: 800 A M and P Frame Circuit Breaker
• MPN: AL800M23K
• Condition: New
• Item model number: AL800M23K
• Measurement System: Imperial
• Included Components: AL800M23K
• Batteries Required?: No
• Amps: 800
• Volts: 600
• Pri. Wire Size: 500mcm
• Poles: 3
• Breaker Current Rating: 800 Ampere Max.
• Min. Conductor Size: 3/0 AWG
• Max. Conductor Size: 500 KCMIL
• Conductors: 3
