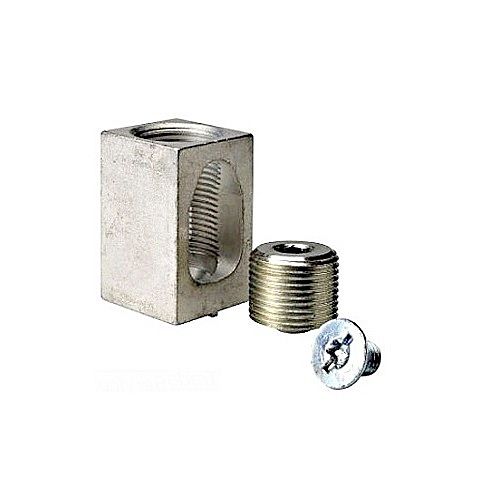

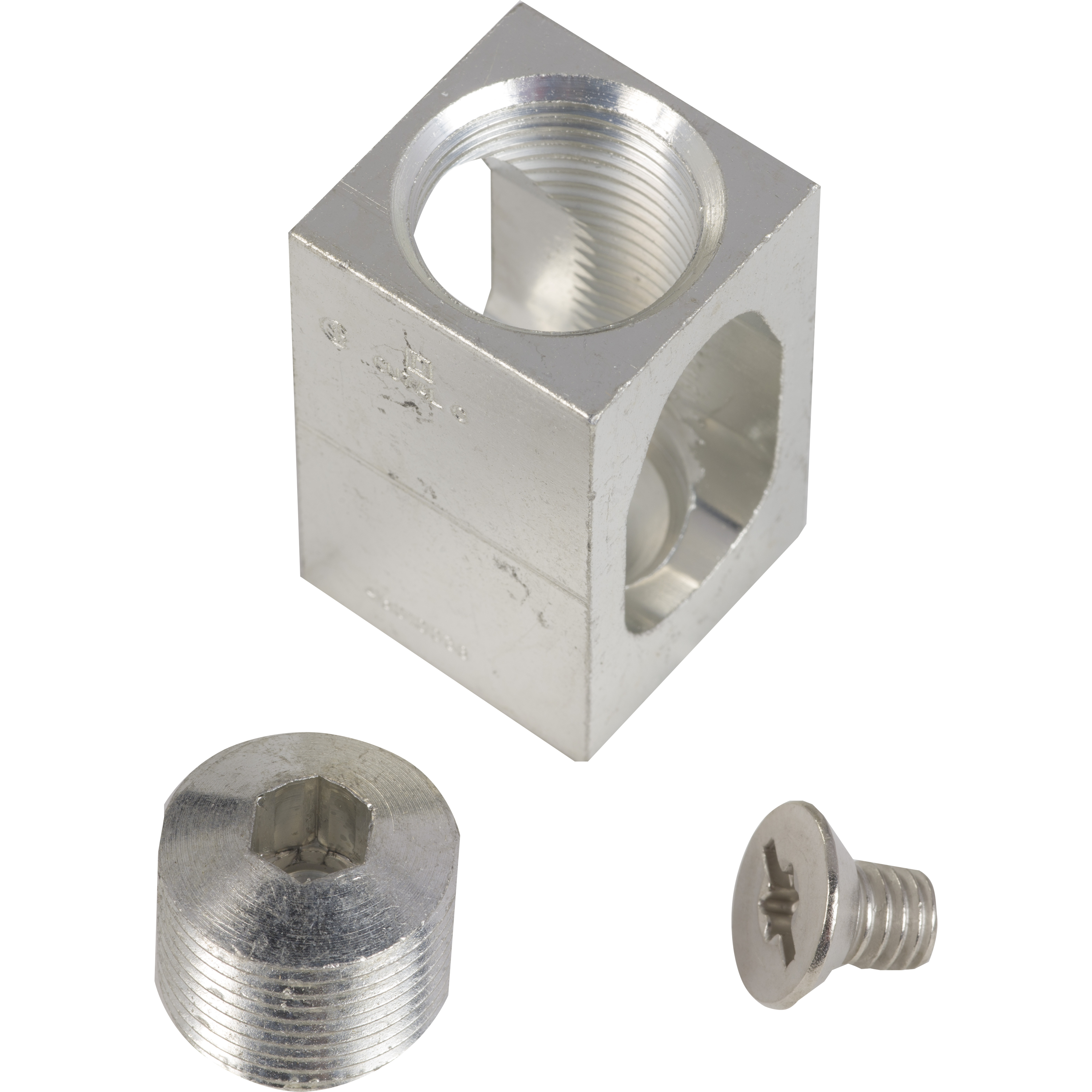

Square D AL400LA Circuit Breaker Mechanical Lug Kit 400A

Product Description

The Square D AL400LA is a connector accessory for PowerPact LA, LH, Q4 circuit breakers. This aluminum lug kit has a rated current of 400 amps and is for terminal connection. It accepts wire sizes of AWG 1 with a 600 kcmil and complies with UL standards. This lug can be used only on standard circuit breakers.

• Connector accessory for PowerPact LA, LH, Q4 circuit breakers
• Aluminum lug kit
• Rated current of 400 amps

Product Highlights

This lug kit is designed for cable connection and accepts a wire size of AWG 1 with a 600 kcmil.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: AL400LA
• Country of Origin: United States

Technical Specifications

• Catalog Number: AL400LA
• Type: CIRCUIT BREAKER LUG KIT
• Brand: Square D
• Depth: 1.26 Inch
• Width: 1.26 in
• Height: 2.01 Inch
• Amperage: 400A
• Applications: CABLE CONNECTION
• TC Connection: LUGS (BOTH ENDS) #8 TO #1/0 AWG(AL) #14 TO #1/0 AWG(CU)
• Manufacturer: Schneider Electric
• Country of Origin: United States
• Made in USA: Yes
• UPC: 785901368236
• GTIN: 00785901368236
• Maximum Breaker Current Rating: 400 Ampere
• Number of Conductors: 1 or 2
• Minimum Conductor Size: 1 AWG
• Maximum Conductor Size: 600 KCMIL, 250 KCMIL
• Conductor Material: Aluminum
• Body Material: Aluminum
• Quantity: 1
• Used On: LA/LH/Q4 Series Circuit Breaker
• Circuit Breaker Type: Standard
• General Application: Cable Connection
• Accessory Type: Lug Kit
• Compatible Breaker Type: PowerPact LA, PowerPact LH, Q4
• Rated Current: 400 amps
• Wire Size: AWG 1 with a 600 kcmil
• Material: Aluminum
• Standards: UL
• Brand Name: Square D
• Mechanical Connector: Mechanical Connector
• Length: 20.7 in
• Torque: 120 in-lb
• For Wire Size: 1/0 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 4/0 AWG
• Overall Depth: 1 1/4 in
• Overall Width: 1.26 in
• Connector Type: Lug Kit
• Overall Length: 20.7 in
• Number of Pieces: 3
• Wire Size Ranges: 1 AWG - 250 kcmil
• No. of Conductors: 1
• Max. Conductor Size: 600 kcmil Stranded
• Min. Conductor Size: 1 AWG Stranded
• For Conductor Material: Aluminum, Copper
• Length (Straight Wireway): 20.7 in
• Compatible with Product Type: Circuit Breaker
• For Stranded Copper Wire Size - Maximum: 250 kcmil
• For Stranded Copper Wire Size - Minimum: 1 AWG
• Manufacturer Part Number: 436061
• Family Series: Square D Circuit Breakers
• Description: Circuit Breaker Mech Lug Kit
• 100% Rated: No
• Auxiliary Switch: No
• Shunt Trip: No
• Undervoltage Release: No
• Alarm Switch: No
• Gross Weight: 0.25 lbs
• Net Weight: 0.145 lbs
• Conductor Range: 14 to 1/0 AWG, 8 to 1/0 AWG
• Suitable For Use With: Q4/LA/LH 125 to 400 A Circuit Breaker
• Part Number #: AL400LA
• SKU #: 187834
• UNSPSC: 39121616
