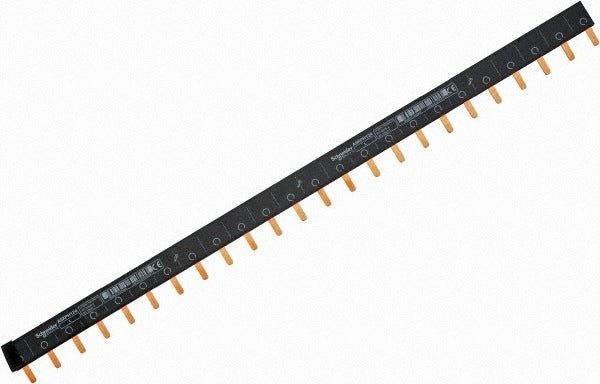

Square D A9XPH124 Combination Busbar 100A 415VAC C60

Product Description

The SQUARE D A9XPH124 is a combination busbar accessory rated at 100 amps and 415 volts AC, designed for use with C60 series circuit breakers. This busbar links multiple breakers to a common distribution point, simplifying panel wiring and reducing the number of individual connections required. It is installed by licensed electricians during new panel builds, service upgrades, or breaker additions where a shared feed arrangement is needed. At 16.9 inches in length, the A9XPH124 fits neatly into compatible enclosures and weighs just 0.22 pounds, making it easy to handle during installation.

This combination busbar is suited for residential and light commercial electrical distribution applications. It is used in load centers and distribution panels where C60 circuit breakers are already installed or being added. The accessory-style design allows electricians to configure multi-breaker setups without running individual line conductors to each device, streamlining the panel layout and improving overall organization inside the enclosure.

Key Features

• 100 amp rating supports high-demand distribution circuits
• 415 volts AC control voltage matches C60 breaker panel environments
• Combination busbar design connects multiple breakers to a single feed point
• Compact dimensions at 16.9 inches long, 1.2 inches wide, and 0.2 inches tall
• Lightweight at 0.22 pounds for easy single-hand positioning during install
• Sold individually — package quantity of 1

Compatibility

Designed for use with C60 series circuit breakers as stated by the manufacturer. Confirm panel model and busbar slot configuration before ordering.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize the panel completely and verify zero voltage with a calibrated meter before handling any busbar or breaker components. Ensure the busbar seating positions align with the C60 breaker mounting points before securing. Follow the panel manufacturer's torque and assembly sequence guidance for all busbar connections.
