Product Description

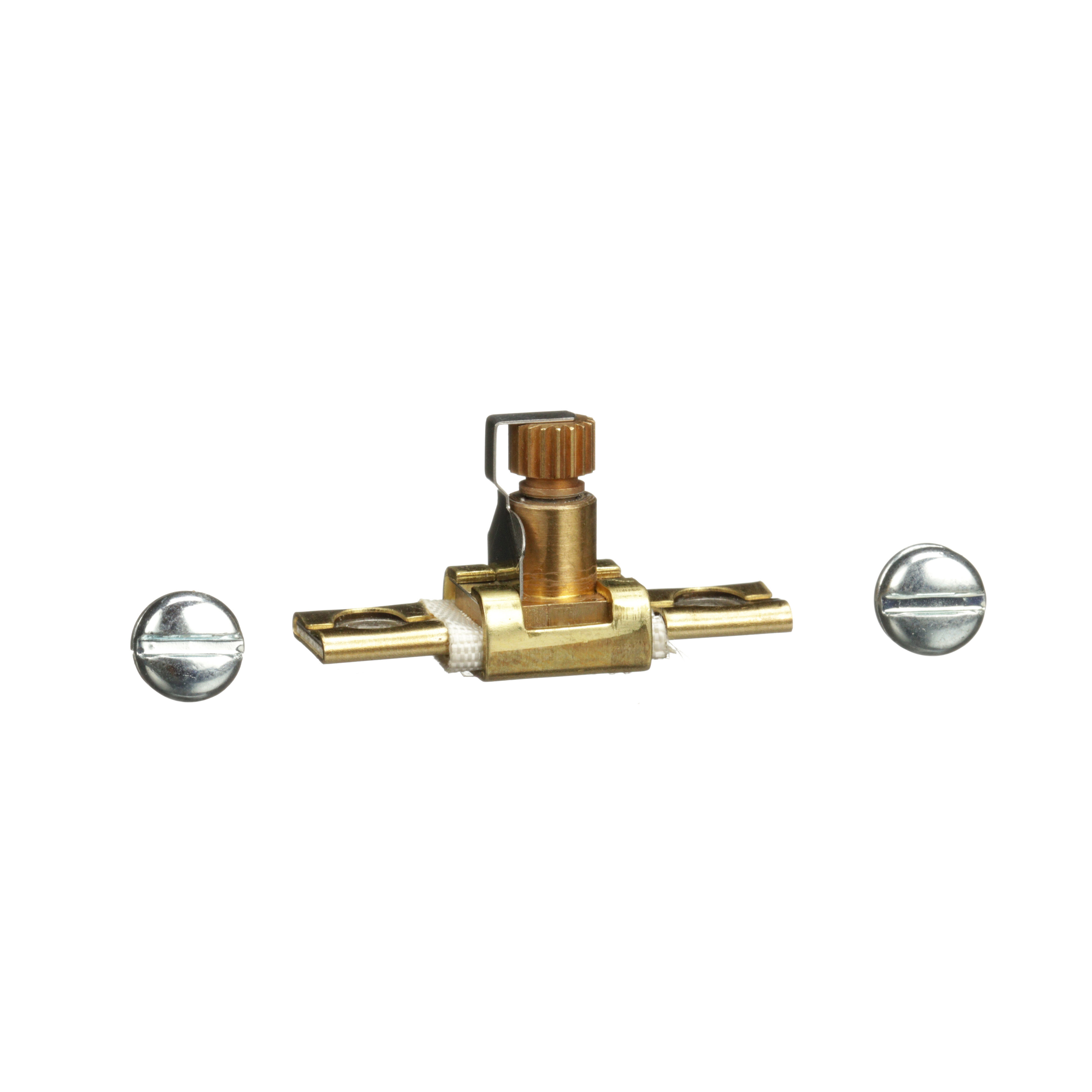

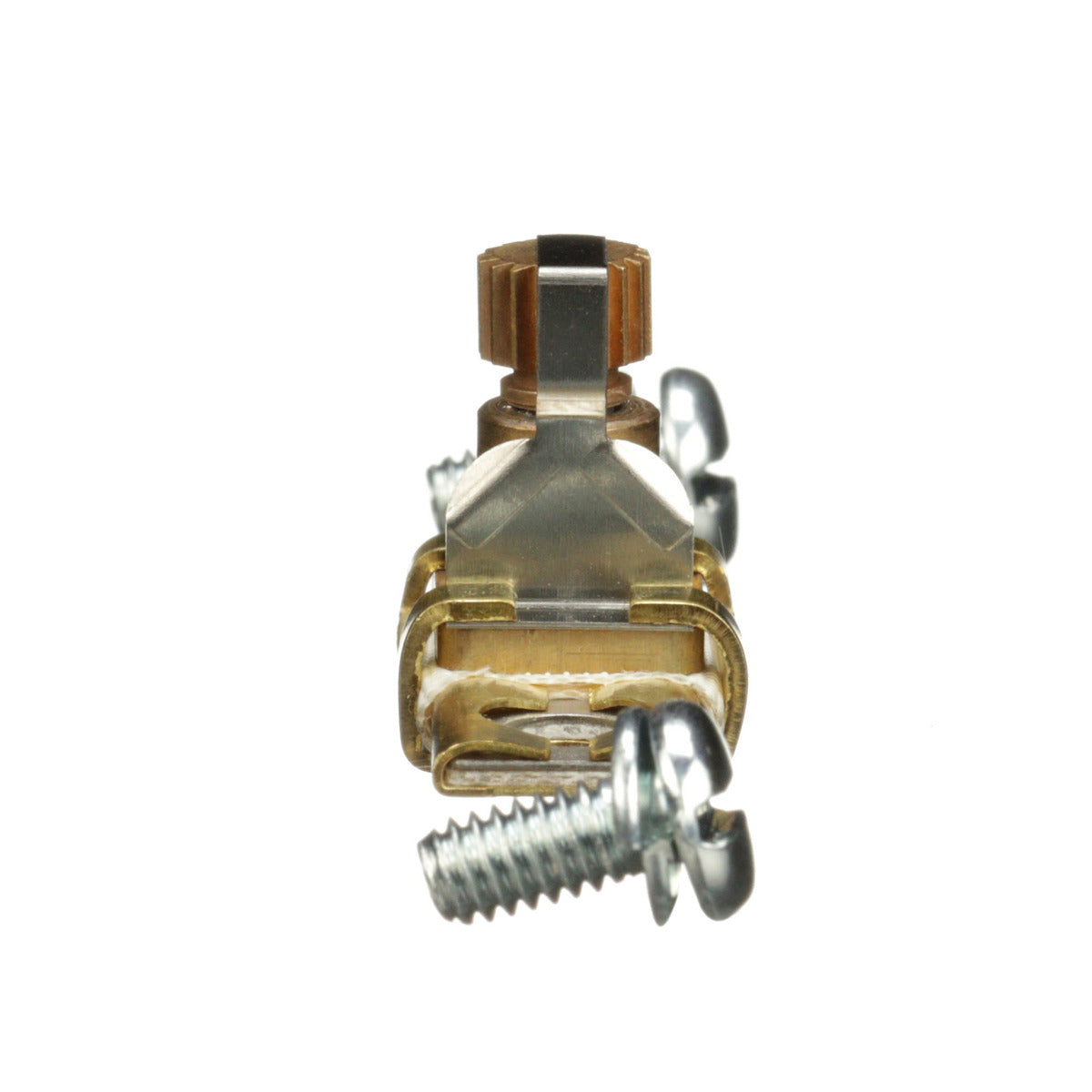

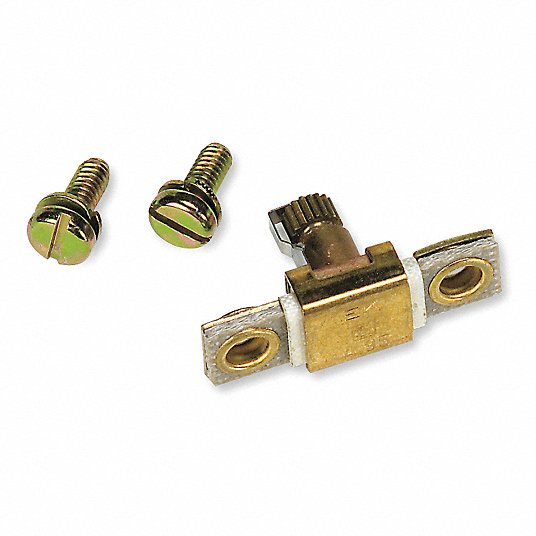

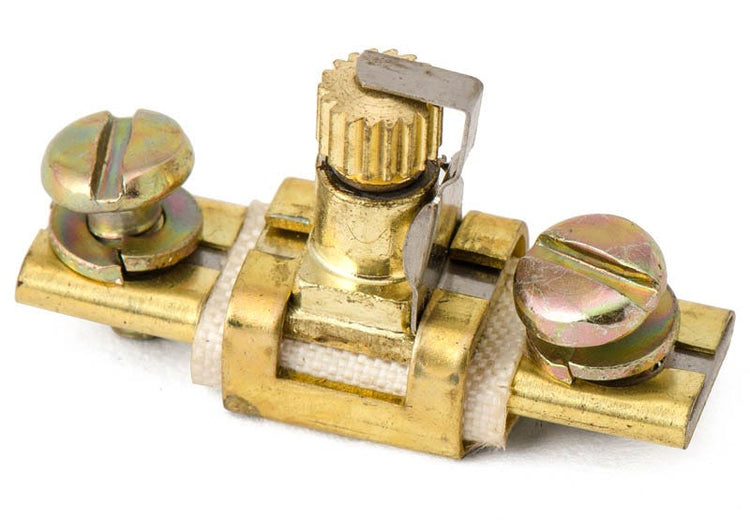

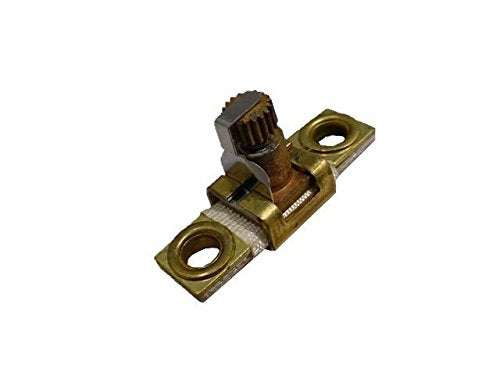

The Square D A5.30 thermal unit protects motors, controllers, and branch circuit conductors from excessive heating due to prolonged motor over currents, including locked rotor currents. Class 20 thermal units respond to overload current conditions according to trip curves, tripping in 20 seconds or less. It features a one-piece construction and is for use in melting alloy thermal overload relays.
- Cannot be reset until cooled
- Melting Alloy Thermal Units
- Calibration is set for a range of motor full load currents
Product Highlights
Provides overload protection for most motors. Repeated tripping does not affect the original calibration.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: A5.30
-
Country of Origin: Mexico
Technical Specifications
-
Type: THERMAL - MELTING ALLOY THERMAL UNIT
-
Brand: Square D
-
Sub Brand: SCHNEIDER ELECTRIC
-
Trip Type: Class 20, Standard
-
Reset Type: MANUAL
-
Applications: FOR USE IN MELTING ALLOY THERMAL OVERLOAD RELAYS
-
Catalog Number: A5.30
-
Manufacturer: Schneider Electric
-
Country of Origin: Mexico
-
Made in USA: No
-
UPC: 785901585350
-
GTIN: 00785901585350
-
Full Load Amps: 3.71 to 4.07
-
Sensing Method: Melting Alloy
-
Motor Tripping Class: 20
-
Thermal Overload Type: melting alloy
-
Series: A
-
Model / MPN: A5.30
-
Product Type: ELECTRONIC_COMPONENT
-
Product Group: BISS
-
Motor FLA: 4.25 to 4.62 Ampere (1 Thermal Unit), 4.17 to 4.51 Ampere (2 Thermal Unit), 3.86 to 4.16 Ampere (3 Thermal Unit)
-
Mounting: Plug-In
-
Standard Package: 6
-
Used On: AC Magnetic Starter
-
Volts: 480
-
Trip Range: 3.71-4.07
-
Protection: Thermal
-
For Use With: Thermal Overload Relays, Magnetic Motor Starters and Motor Controls
-
Size: 2.6 in L x 1.7 in W x 3.5 in H
-
Full Load Current: 3.5 to 4.62, 3.5 to 4.62 A
-
Trip Class: 20
-
Compatible Frame Size: A; S
-
Overload Protection Type: Melting Alloy
-
Compatible with Grainger Part Number: 1H385; 1H386; 1H387; 1H388; 1H389; 1H39; 1H392; 1H393; 2BV58; 2BV66; 2BV67; 2BV71; 2BV72; 48P274; 48P276; 48P277
-
Compatible with Manufacturer Model Number: 2510FF1; 2510FF1P; 2510FF1PG; 2510FF2; 2510FG1; 2510FG1P; 2510FG1PG; 2510FG2; 2510FG2P; 2510FG5; 2510FG5P; 2510FG6; 2510FG6P; 2510FG71; 2510FG71P; 2510FG71PG; 2510FO1; 2510FO1P; 2510FO2; 2510FO2P
-
UNSPSC: 39121521
-
IGCC: 5364
