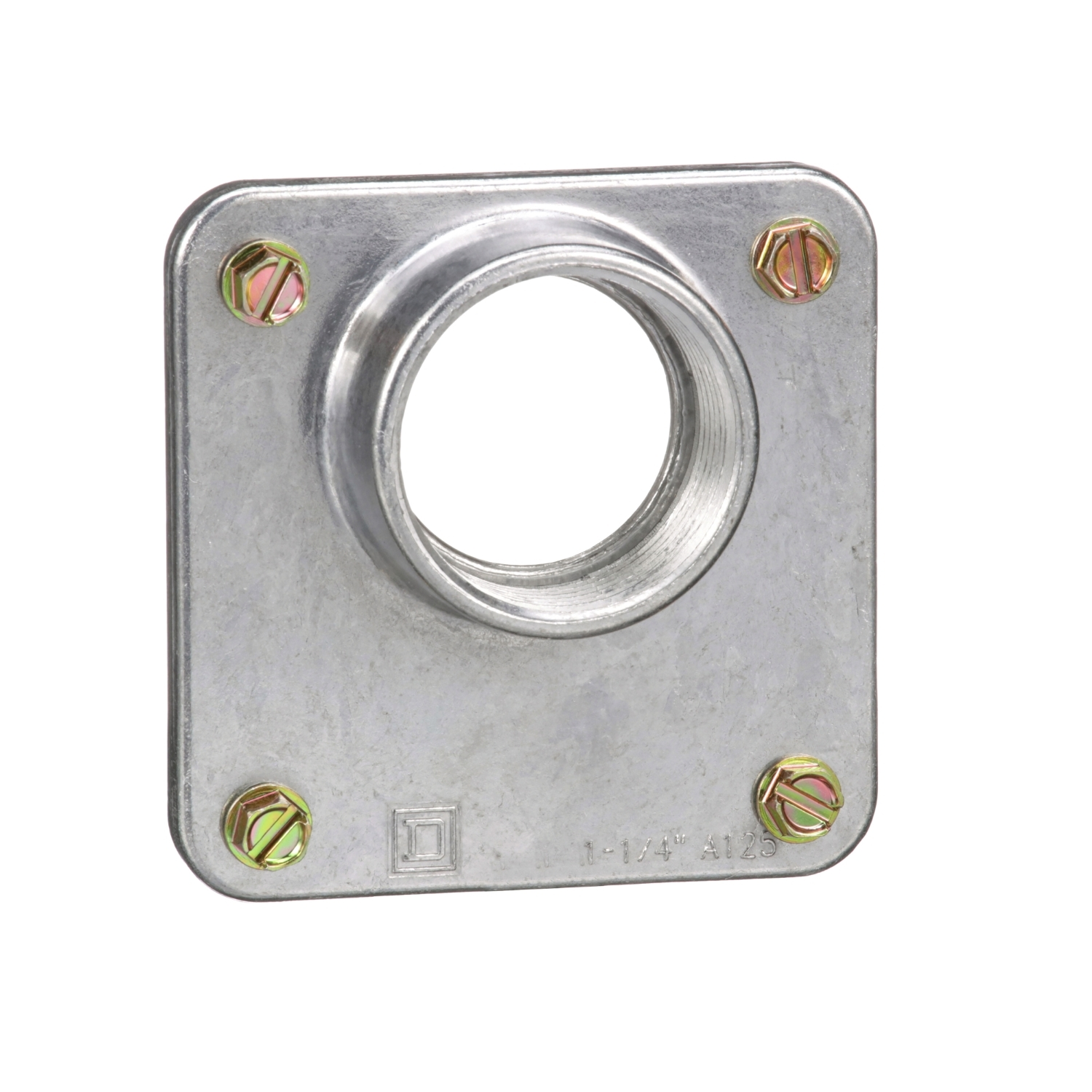

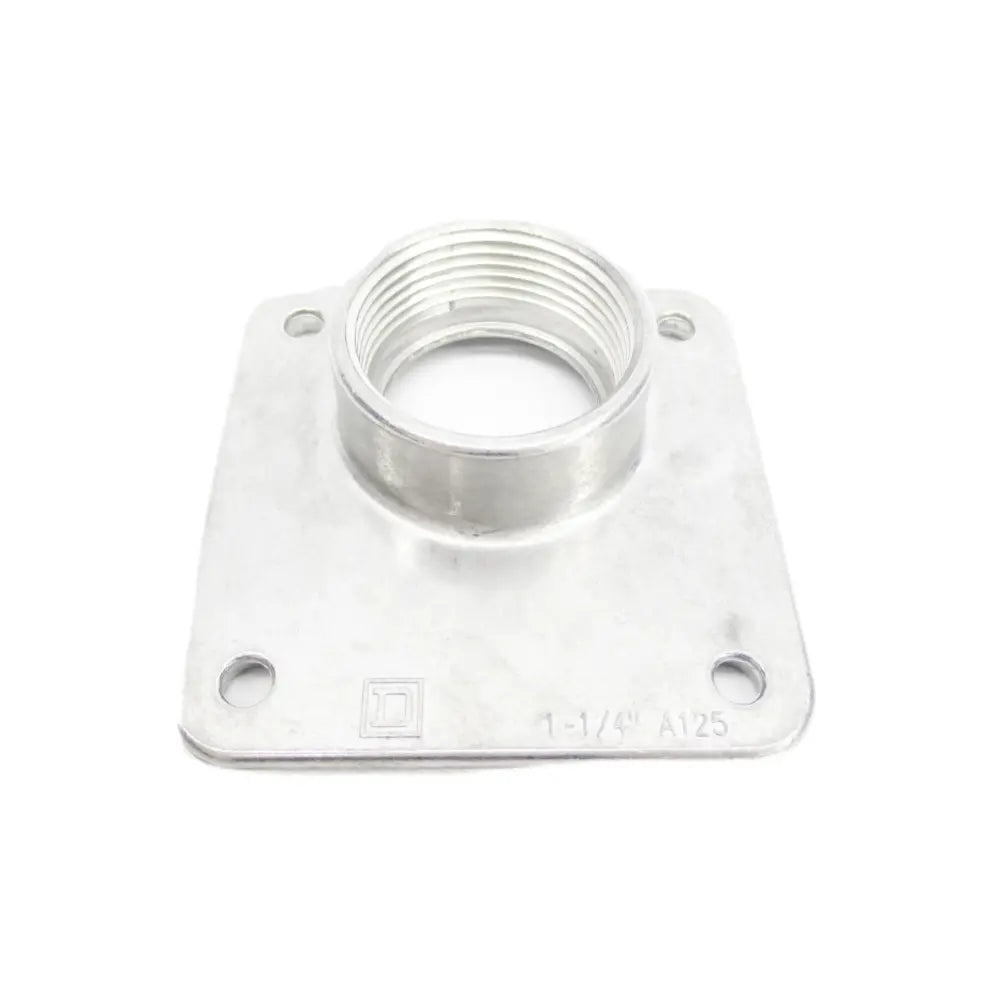

Square D A125 meter accessory hub 1.25 inches wire size series A rainproof

Product Description

The Square D A125 meter accessory is a hub designed for individual meter sockets, providing connections to downstream load centers or service disconnects. It is supplied with a hub opening for bolt-on installation. This rainproof hub is rated for 1.25" wire size and is part of the Series A systems.

• Rainproof construction
• Rated for 1.25" wire size
• Bolt-on connection

Product Highlights

The Square D A125 hub provides a secure and weather-resistant connection for meter sockets in Series A systems.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: A125
• Country of Origin: India

Technical Specifications

• Type: Meter Base Hubs
• Depth: 3.3 Inches
• Height: 3.31 Inches
• Material: Aluminum
• Connection: Bolt-On
• Size: 3.31 in
• Brand: Square D
• Sub Brand: SERIES A
• Cable Entry: conduit entry 1.25"
• Applications: CONDUIT ENTRY
• Certifications: UL
• Number of Holes: 4 Hole
• Manufacturer: Schneider Electric
• Made in USA: No
• UPC: 785901029496
• GTIN: 00785901029496
• Conduit Size: 1-1/4 Inch
• Supplied with: (4) Slotted Hex Washer Head Screw
• Mounting Dimension: 1 Inch x 0.44 Inch
• Hub Type: A
• Mounting Support: direct mounting on box
• Device Composition: adaptor plate
• Product Destination: conduit entry
• Shape Of Screw Head: slotted hexagonal
• Product Certifications: UL Listed
• Number Of Mounting Holes: 4
• Product Or Component Type: conduit entry || hub
• Series: A
• Wire Size: 1.25"
• Range Of Product: Series A
• Width: 3.3 in
• Mounting pattern: 4-Hole
• Conduit Trade Size: 1-1/4
