Square D 9999SX7 600 VAC 10 Amp 1NC Size 00 to 7 NEMA Auxiliary Contact

Product Description

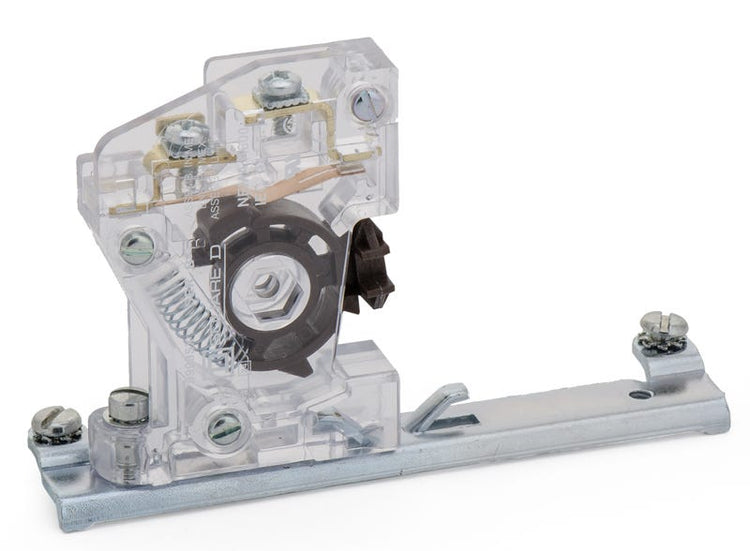

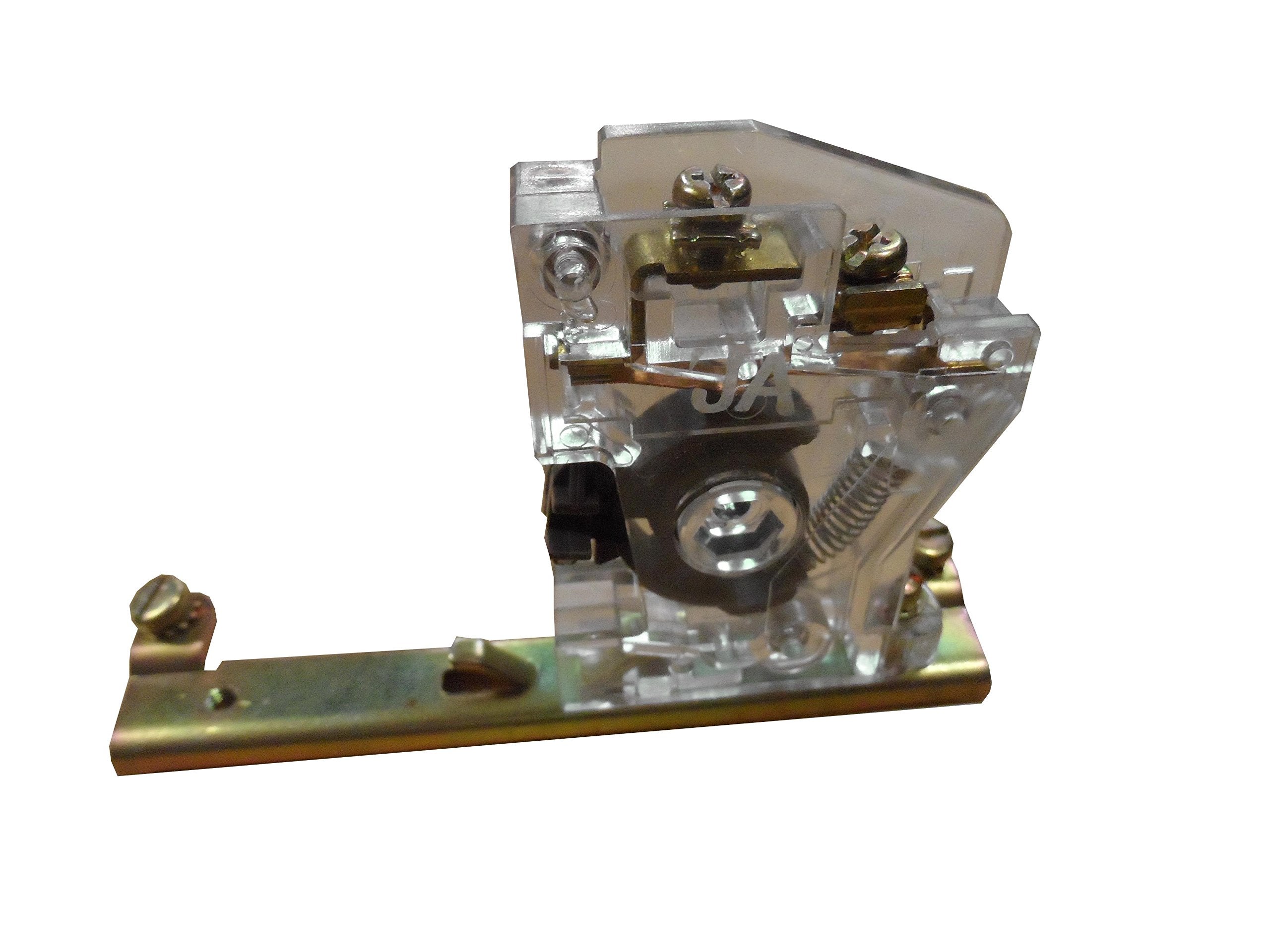

The Square D 9999SX7 auxiliary contact module is for motor and lighting control applications. This external convertible contact mounts to the side of a contactor or starter and is used as part of the electrical control circuit. The auxiliary contact has one normally closed contact and a NEMA A600 contact rating with a maximum voltage rating of 600VAC.

• Used to switch heating loads, capacitors, transformers, and electric motors where overload protection is separately provided
• UL and CSA approvals
• Available from NEMA Size 00 to NEMA Size 7

Product Highlights

This auxiliary contact module is UL component recognized and CSA certified. It has an inductive break rating of 6.0 A at 120 VAC.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 9999SX7
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: 9999SX7
• Brand: Square D
• Manufacturer: Square-D / Schneider
• Type: Auxiliary Contact Module
• Size: NEMA SIZE 00 THRU 7
• Standard: 1.2 A 600 V AC Inductive Control Circuit UL 508,1.5 A 480 V AC Inductive Control Circuit UL 508,10 A <= 600 V AC Resistive Control Circuit UL 508,3 A 240 V AC Inductive Control Circuit UL 508,6 A 120 V AC Inductive Control Circuit UL 508
• NEMA Size: 0,00,1,2,3,4,5,6,7
• Sub Brand: SCHNEIDER ELECTRIC
• Applications: NC AUXILIARY CONTACT KIT
• Coil Voltage: <= 600 V AC 50/60 HZ
• Certifications: CSA,UL Listed,UL Recognized
• Contact Rating: 10A
• Contact Configuration: 1 NC
• Maximum Voltage Rating: 600VAC
• Inductive Break Rating: 6.0 A at 120 VAC
• Mounting Location: External, Non-Convertible
• Terminal Type: Screw Clamp
