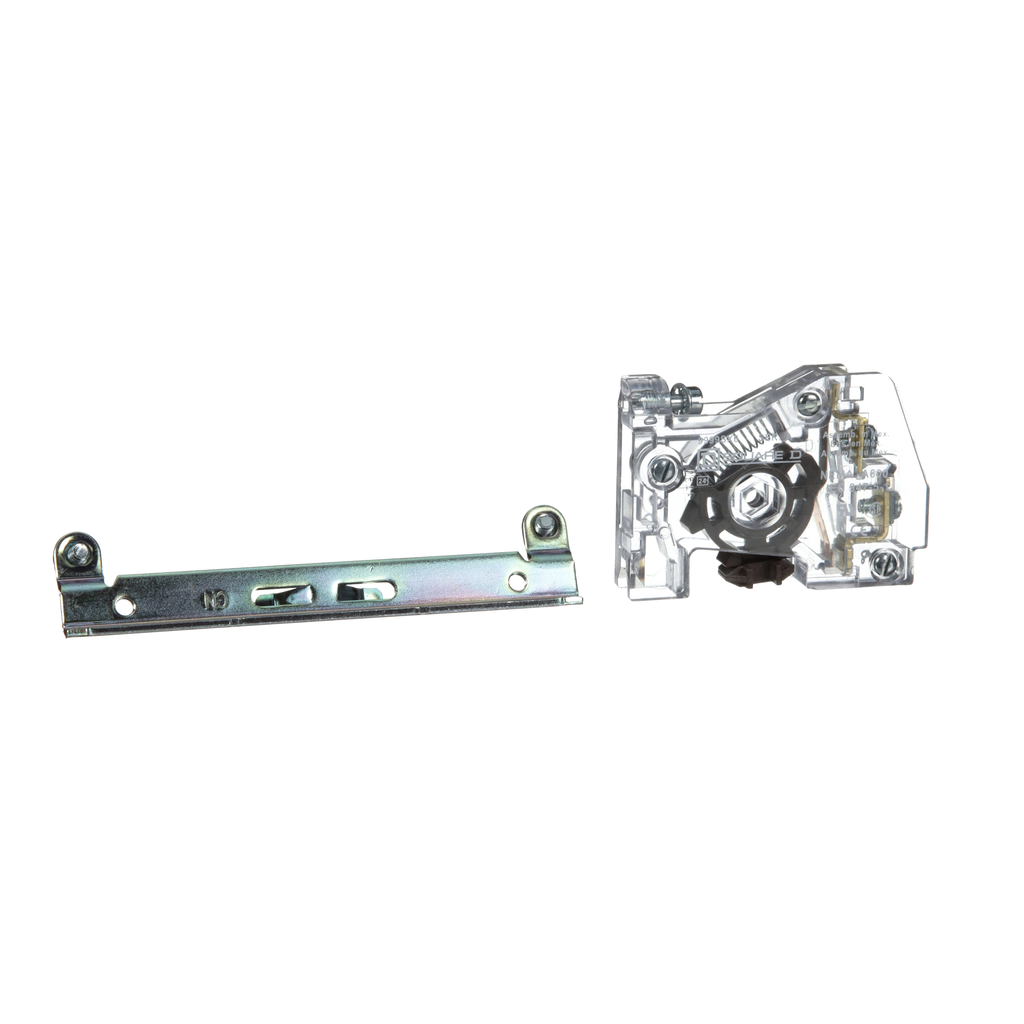

Square D 9999SX6 600 VAC 10 Amp 1NO Size 00 to 7 NEMA Auxiliary Contact

Product Description

The Square D 9999SX6 is an auxiliary contact kit designed for control circuit applications. It operates at a maximum voltage of six hundred volts AC and is suitable for various motor control tasks. This product includes one normally open contact, which facilitates electrical operations within contactors and starters. The auxiliary contact is externally mounted, making installation straightforward. The design adheres to NEMA A600 contact rating standards. The inductive break rating is six amps at one hundred twenty volts AC. This kit is ideal in settings requiring reliable electrical contacts for motors, heating loads, and transformers.

• Rated for 600 volts maximum.
• UL and CSA approved.
• Includes replaceable coil and contacts.

Product Highlights

This auxiliary contact kit enhances the functionality of Square D contactors, optimizing performance in electrical circuits.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Auxiliary Contact Configuration: 1 NO
• Voltage Rating: 600 VAC
• Amperage Rating: 10 A
• NEMA Size: 00 to 7
• Weight: 0.20 lb
• Depth: 4.5 inches
• Width: 3 inches
• Height: 1.5 inches
