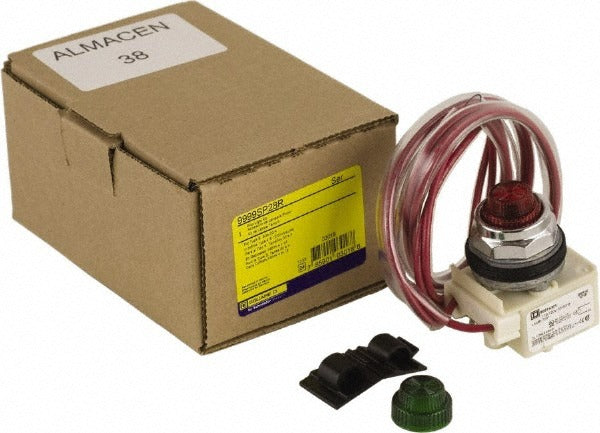

Square D 9999SP28R Starter Pilot Light Kit

Product Description

The SQUARE D 9999SP28R is a pilot light kit designed as an accessory for motor starters. It provides a visual indication of starter status, allowing technicians to confirm energized or de-energized conditions at a glance without opening the enclosure. This kit is a direct replacement or add-on component installed on compatible SQUARE D motor starters and is typically handled by licensed electricians during initial starter assembly or field service. The compact form factor fits within standard starter enclosure footprints and supports efficient panel-level diagnostics in both commercial and industrial control applications.

This pilot light kit is suited for use in motor control applications where visual status indication is required at the starter level. Typical installations include motor control centers, control panels, and standalone starter enclosures in commercial and light industrial settings. The kit includes all components needed for a complete pilot light assembly on the starter unit. Electricians working on new panel builds or performing starter upgrades will find this a straightforward field-installable accessory.

Key Features

• Complete pilot light kit — includes all components for a full assembly
• Designed as a starter accessory for motor starter units
• Compact package dimensions accommodate standard enclosure layouts
• Sold as an individual kit (package quantity of 1)
• Suitable for replacement or new-installation applications

Compatibility

Designed as an OEM-style accessory replacement for SQUARE D motor starters that accept pilot light kit attachments. Refer to the starter model documentation to confirm fitment before ordering.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements. De-energize and lock out the starter and associated control circuit before beginning any work on the unit. Follow the starter manufacturer documentation for proper mounting orientation and wiring termination of the pilot light assembly. Verify all connections are secure and enclosure integrity is restored before returning the system to service.
