Product Description

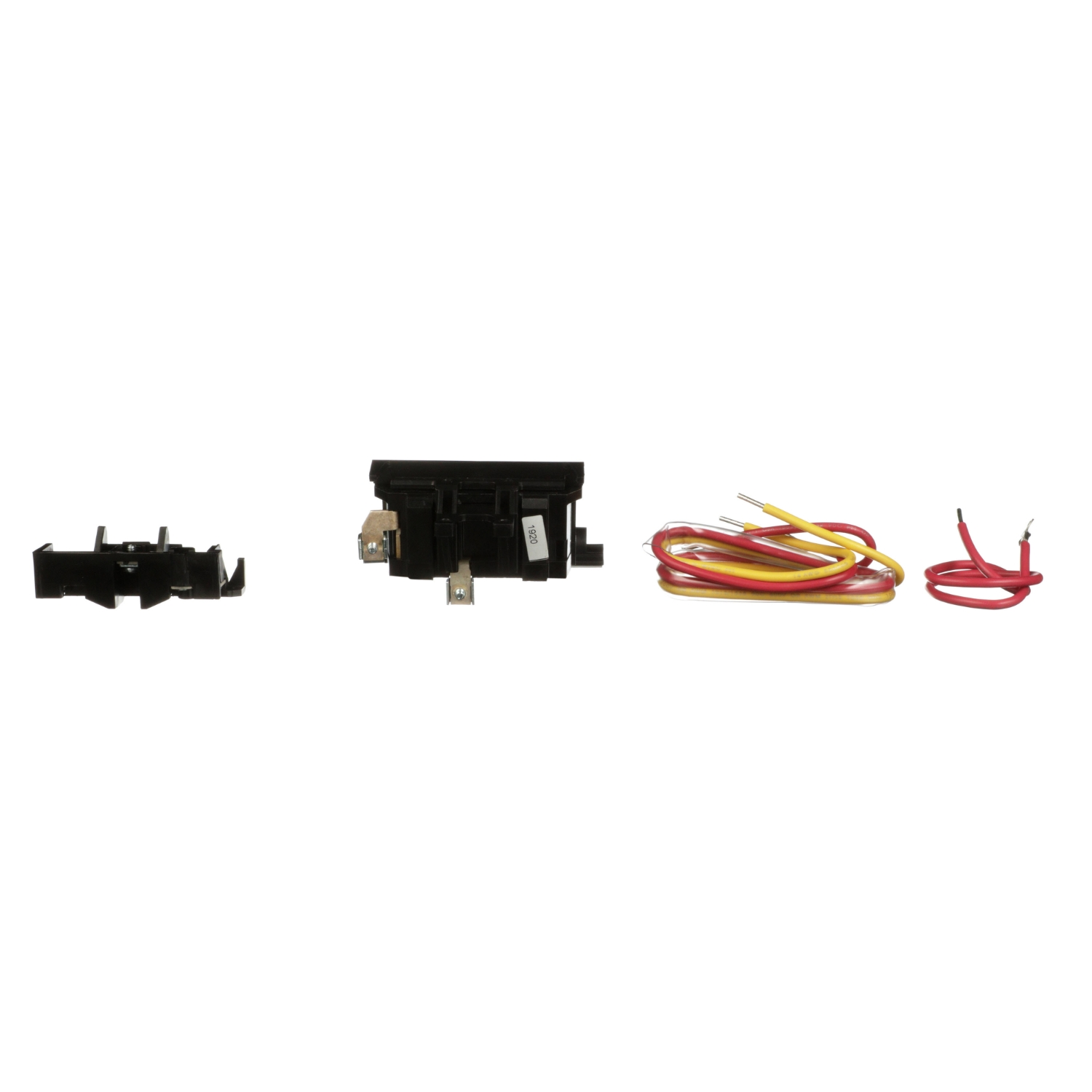

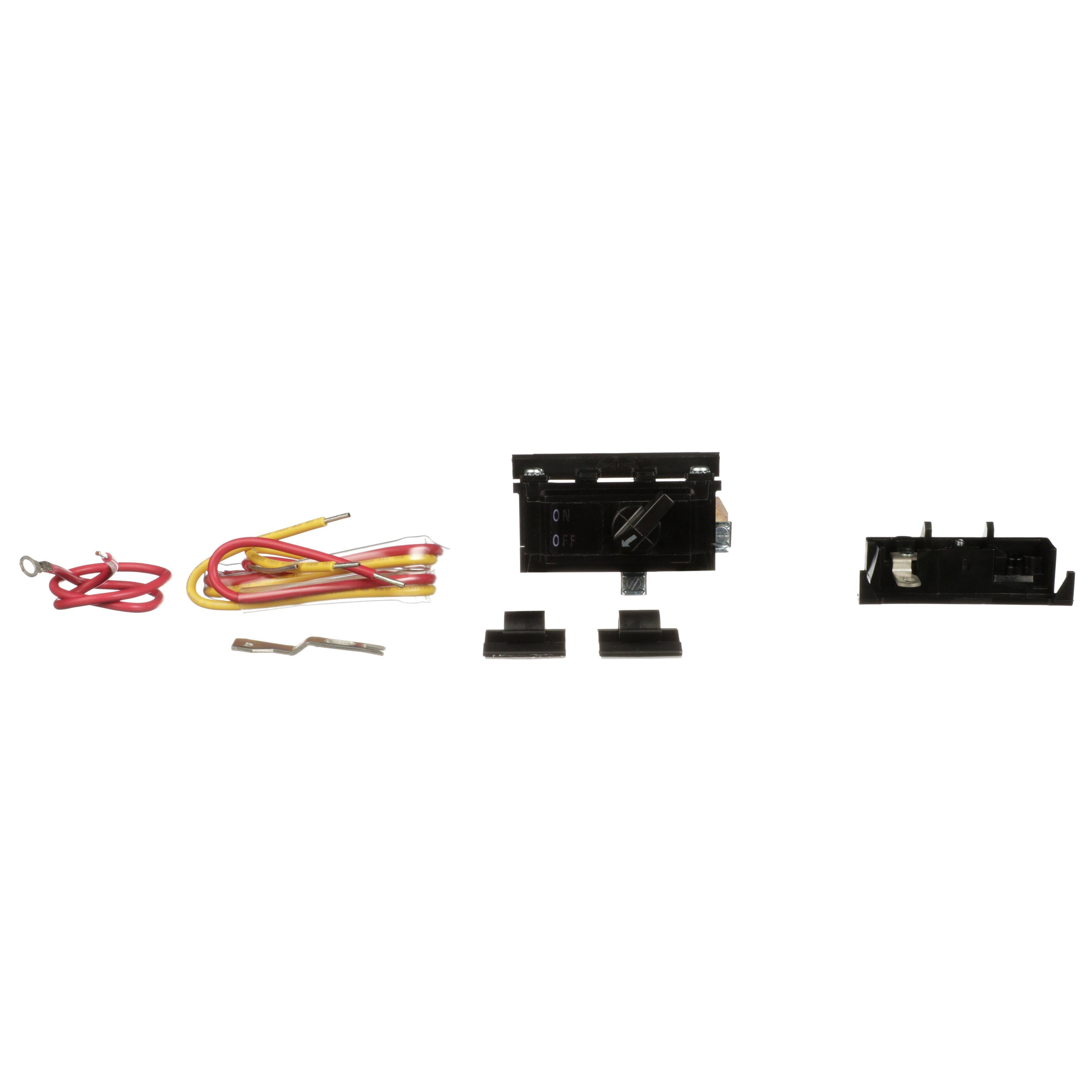

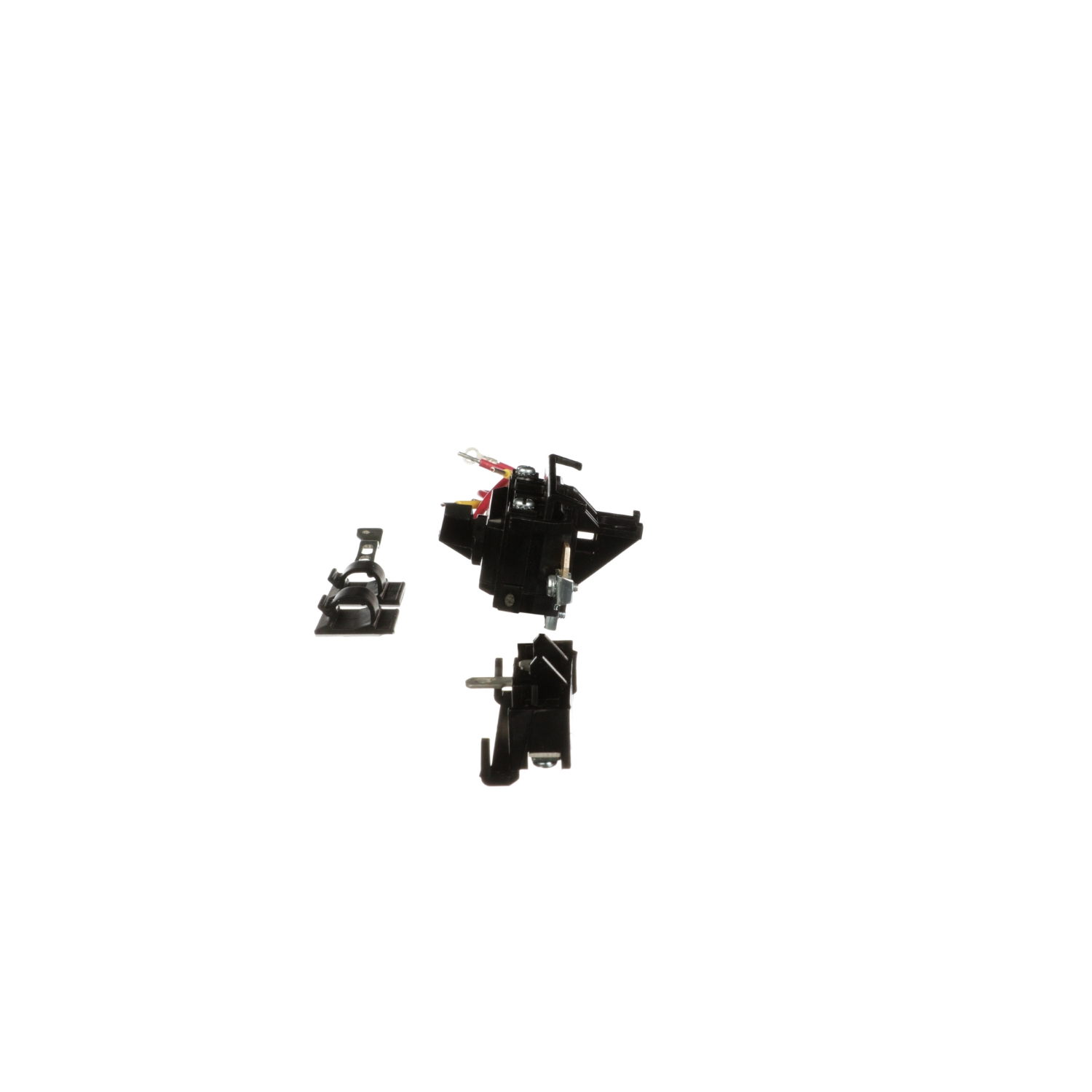

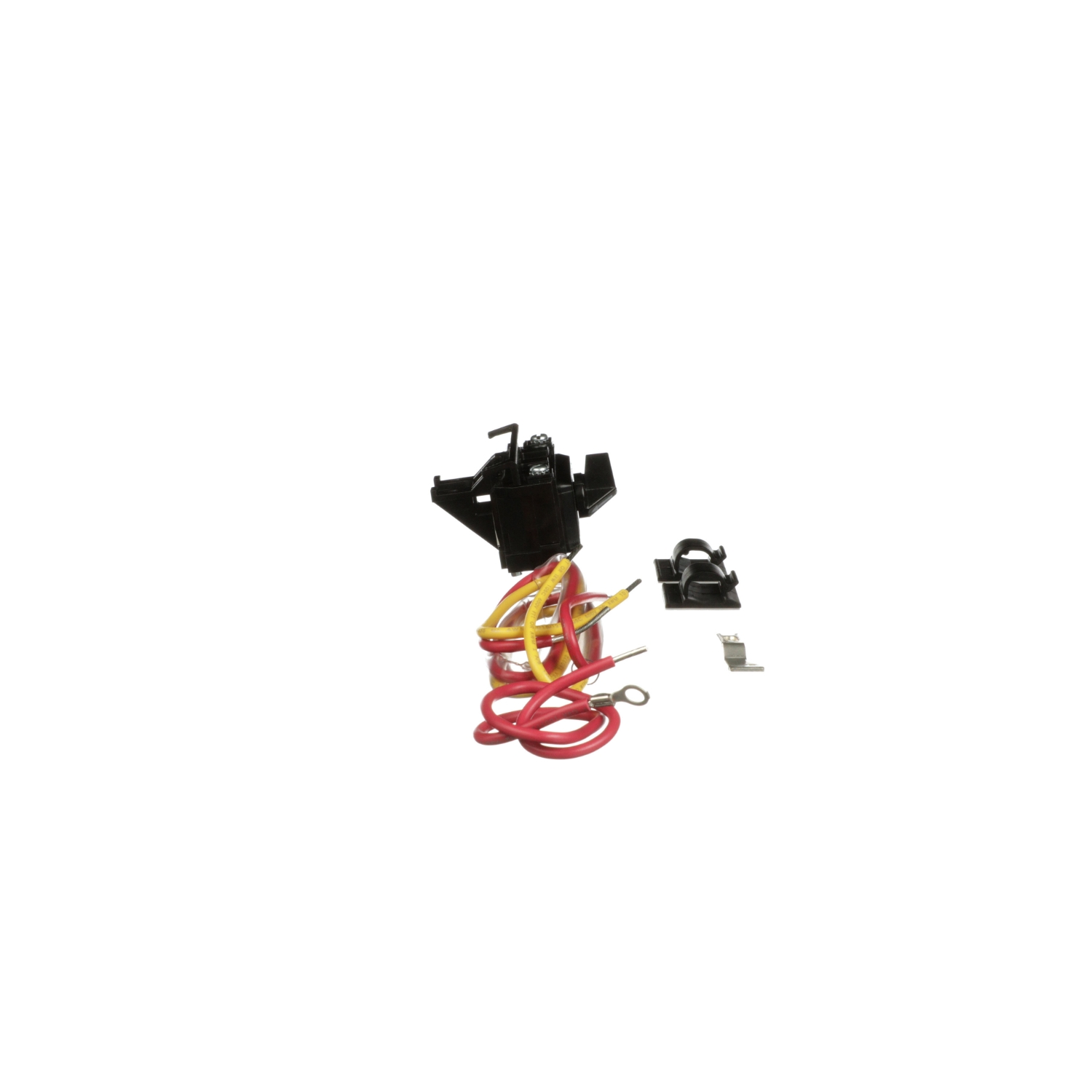

The Square D 9999SC22 is an On Off selector switch kit for NEMA size 00 through 3 Type S contactors and starters or 8903SM or 8903SP lighting contactors in NEMA 1 enclosure. Type S magnetic contactors and starters are for motor control applications and 8903S lighting contactors are for lighting control applications. The selector switch is mounted into the knockout in the enclosure cover.
- On-Off selector switch kit
- For NEMA size 00 through 3 Type S contactors and starters or 8903SM or 8903SP lighting contactors in NEMA 1 enclosure
- Selector switch is mounted into the knockout in the enclosure cover
Product Highlights
This selector switch kit is UL listed and CSA certified. It is suitable for field installation of control units.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: 9999SC22
-
Country of Origin: Mexico
Technical Specifications
-
Catalog Number: 9999SC22
-
Size: SIZE 00-3, 4, 30A & 60A
-
Type: Control Unit Kit
-
Brand: Square D
-
NEMA Size: 0,00,1,2,3
-
Sub Brand: SCHNEIDER ELECTRIC
-
Applications: FIELD INSTALLATION OF CONTROL UNIT
-
Mounting Type: Panel-mounted
-
TC Connection: SCREW TERMINALS
-
Certifications: CSA,UL Listed,UL Recognized
-
Contact Rating: A600
-
Country of Origin: Mexico
-
Contact Configuration: NO/NC
-
Made in USA: No
-
Switch Type: Selector Switch, On/Off
-
Enclosure: NEMA 1
-
Used On: Contactor/Starter
-
Current Rating: 60/100 Ampere
-
Item: Cover Mounted Control Kits
-
Legend: On/Off
-
Standards: CSA Approved, UL Recognized and Listed
-
For Use With: Starter/Contactor
-
Product Type: Cover Mounted Control Kits
-
Starter Size: 00 to 4
-
Range Of Product: type S
-
Product Or Component Type: selector switch
-
Product Destination: contactor || starter
-
Rated Breaking Capacity: 3 A 120 V AC inductive control circuit UL 508 || 1.5 A 240 V AC inductive control circuit UL 508 || 0.6 A 600 V AC inductive control circuit UL 508 || 5 A 600 V AC resistive control circuit UL 508
-
Marking: ON-OFF
-
Mounting Mode: panel-mounted
-
UPC: 785901783022
-
Series: 9999
-
Specifications: OFF-ON Legend, Panel Mounting
-
Suitable For Use With: Class 8538/8539 and 8903 Pre-Series K NEMA 1 Starter and Contactor
-
UNSPSC: 39121529
-
Accessory Type: Selector Switch Kit
-
Function: Allows Manual Control Of The Starter And Motor
-
Manufacturer Part Number: 9999SC22
-
Numeric ID: 4079255
-
UPC Code: 785901783022
-
ECCN: EAR99
