Square D 9999SA3 Start/Stop On-Off Switch Kit NEMA Contactor/Starter Push Button Kit

Product Description

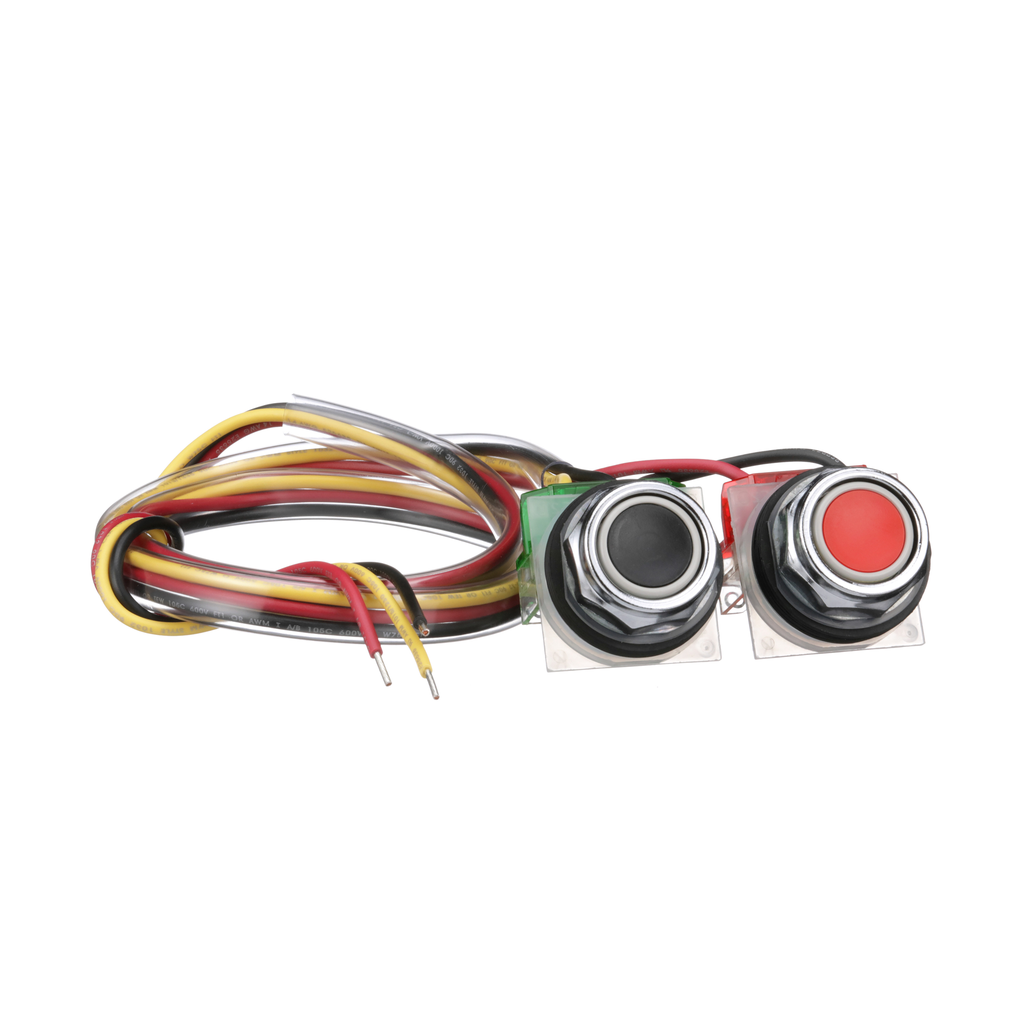

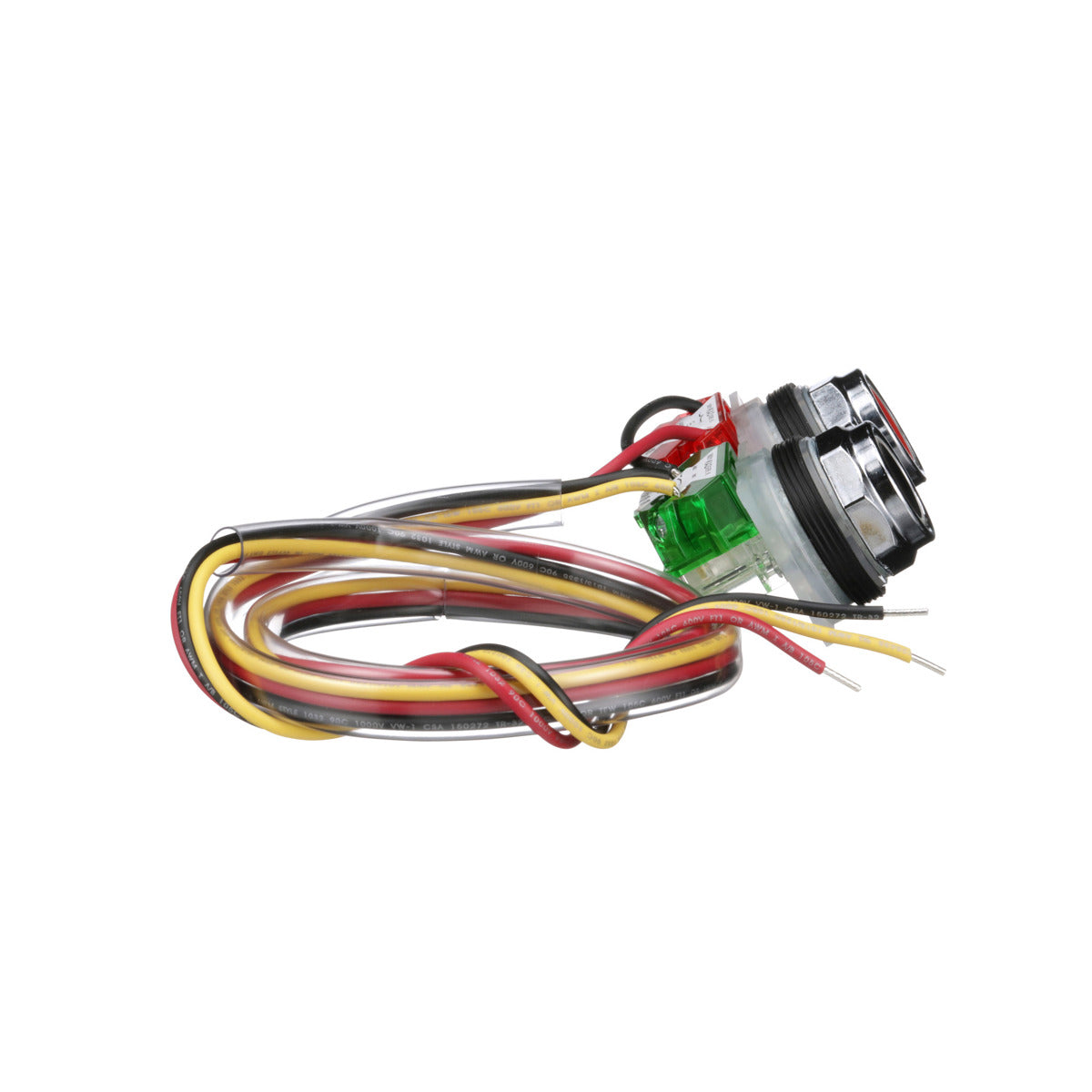

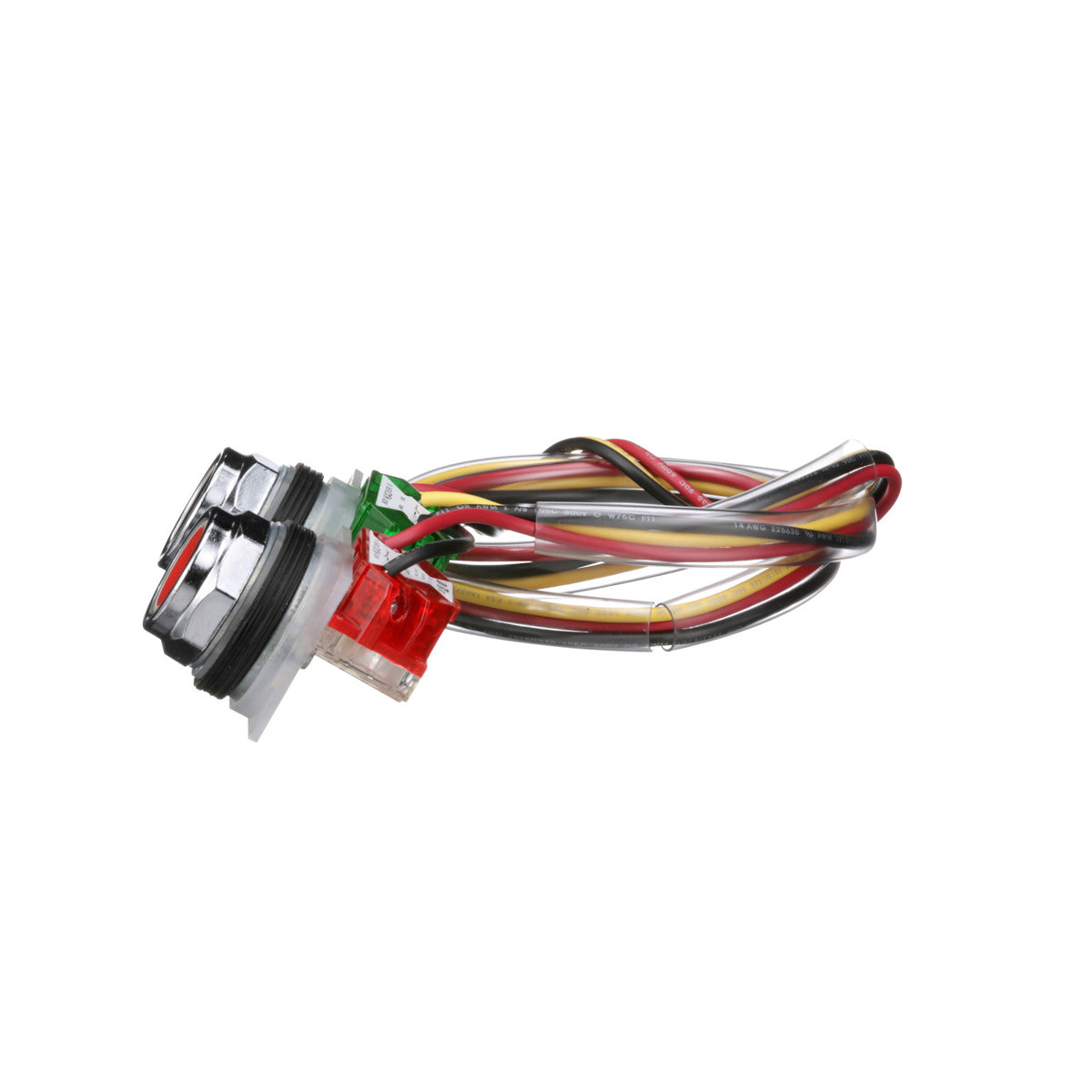

Square D 9999SA3 is a start/stop on-off switch kit designed for use with NEMA size 4 through 7 Type S magnetic contactors and starters. This kit is suitable for motor control applications and comes with UL listing and CSA certification. The switch kit can also work with 8903SQ through 8903SZ lighting contactors in NEMA 1 enclosure. Installation is straightforward as the kit mounts into a knockout in the enclosure cover, making it easy to add functionality without major modifications.

• Compatible with NEMA Size 00 to NEMA Size 7
• Suitable for electric motors, heating loads, capacitors, and transformers
• Rated for a maximum of 600 volts

Product Highlights

UL and CSA listed, the Square D 9999SA3 push button kit offers reliable performance in demanding environments. This kit is recommended for applications requiring dependable switching solutions.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9999SA3
• Size: NEMA 4-7
• Type: Push-button
• Warranty Length: 18 months
• Country of Origin: Mexico
• Certifications: UL, CSA Recognized
• Applications: Field installation of pushbuttons
• Mounting Type: Panel-mounted
