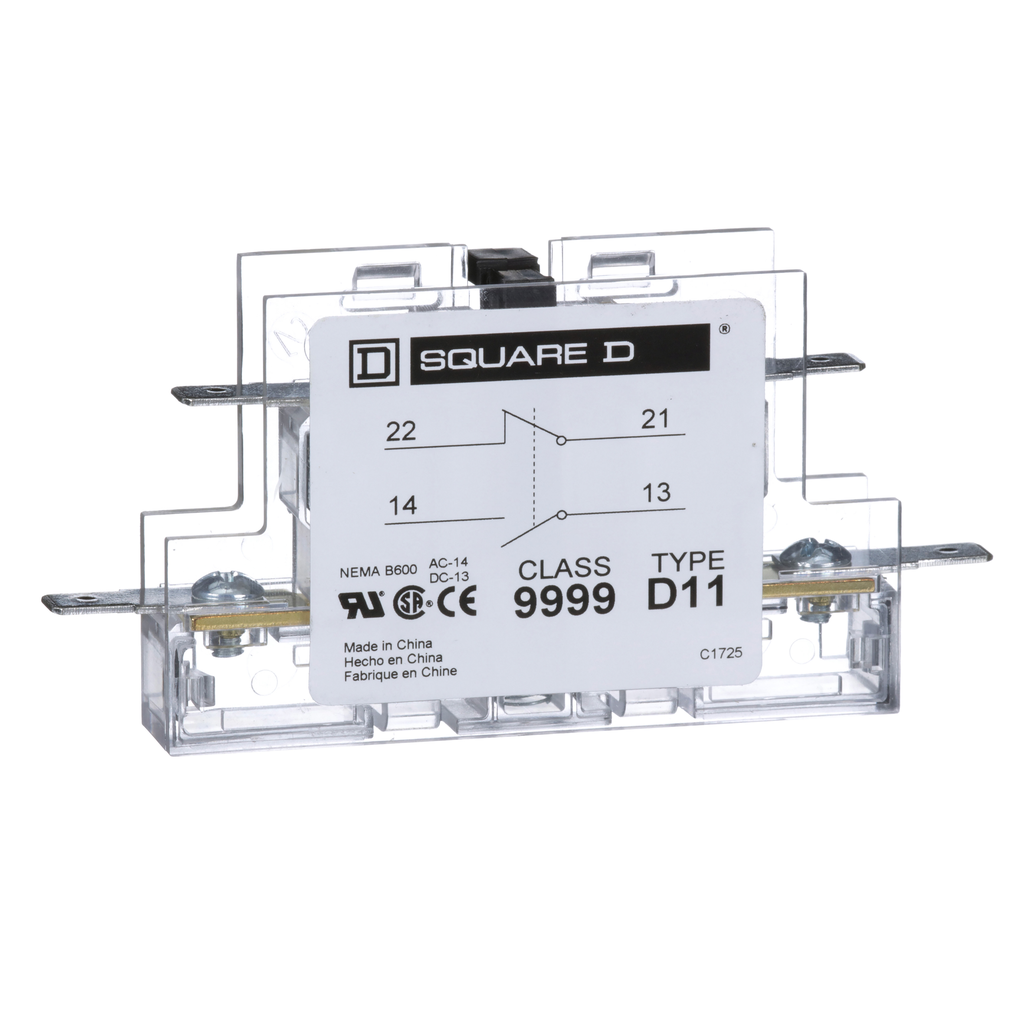

Square D 9999D11 600 VAC 5 Amp 1NO 1NC Auxiliary Contact

Product Description

The Square D 9999D11 is an auxiliary contact module designed for use with Series B definite purpose contactors. This module includes one normally closed and one normally open contact suitable for 50 to 90 A applications. It features a NEMA B600 rating with a maximum voltage of six hundred volts AC.

• Compatible with various definite purpose contactors
• UL component recognized and CSA certified
• Long-lasting mechanical operations rated at five hundred thousand cycles

Product Highlights

This module enhances the functionality of contactors in industrial applications.

Product Information

Standard Information

• Catalog Number: 9999D11
• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Auxiliary Contact Module
• Contact Configuration: 1 NO + 1 NC
• Rated Current: 5A
• Maximum Voltage: 600VAC
• GTIN: 00785901080886
• Country of Origin: China
• Warranty Length: 18 months
• Certifications: UL Recognized, CSA Certified
