Square D 9998SO1 Overload Relay Contact Kit Power NEMA Size 00 to 7 Replacement 9998SO1

Product Description

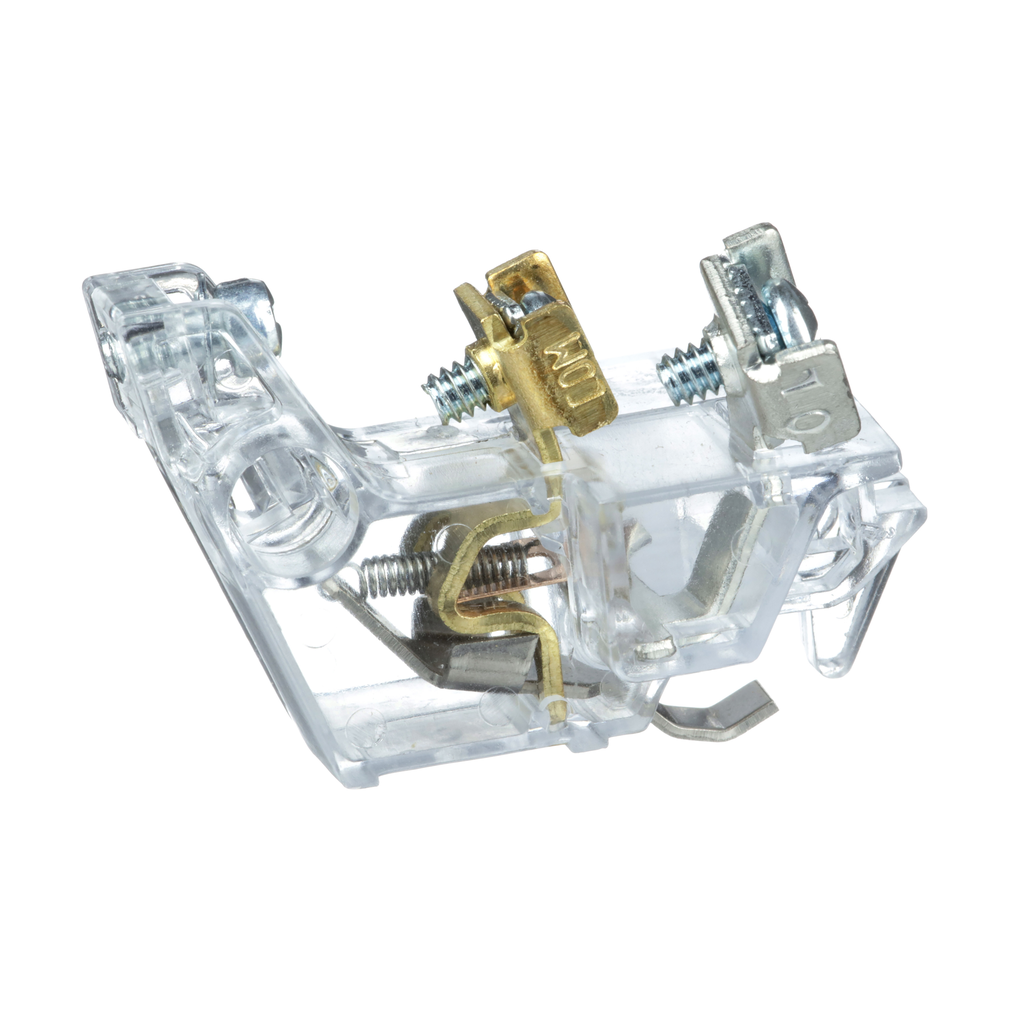

The Square D 9998SO1 is a Type S melting alloy overload relay contact kit designed for motor overcurrent protection. This relay features a one-piece melting alloy thermal unit that protects against overheating caused by excessive overcurrent. This kit includes a standard normally closed (NC) output contact, commonly used with Type S melting alloy overload relays. The contact module is rated with a NEMA B600 contact rating and can handle a maximum voltage of six hundred volts AC.

• Available in NEMA Sizes 00 to 7
• Compatible with Type S magnetic contactors
• Suitable for heating loads, capacitors, transformers, and motors

Product Highlights

This overload relay contact kit is essential for ensuring reliable motor protection and is used in various industrial applications.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9998SO1
• Contact Configuration: 1 NC
• Warranty Length: 18 months
• Country of Origin: Mexico
• UPC: 785901754732
• GTIN: 00785901754732
• Item Type: Accessory
• Contact Rating: A600, P300
