Square D 9998SL4 3-Pole Size 2 NEMA Contactor/Starter Contact Kit

Product Description

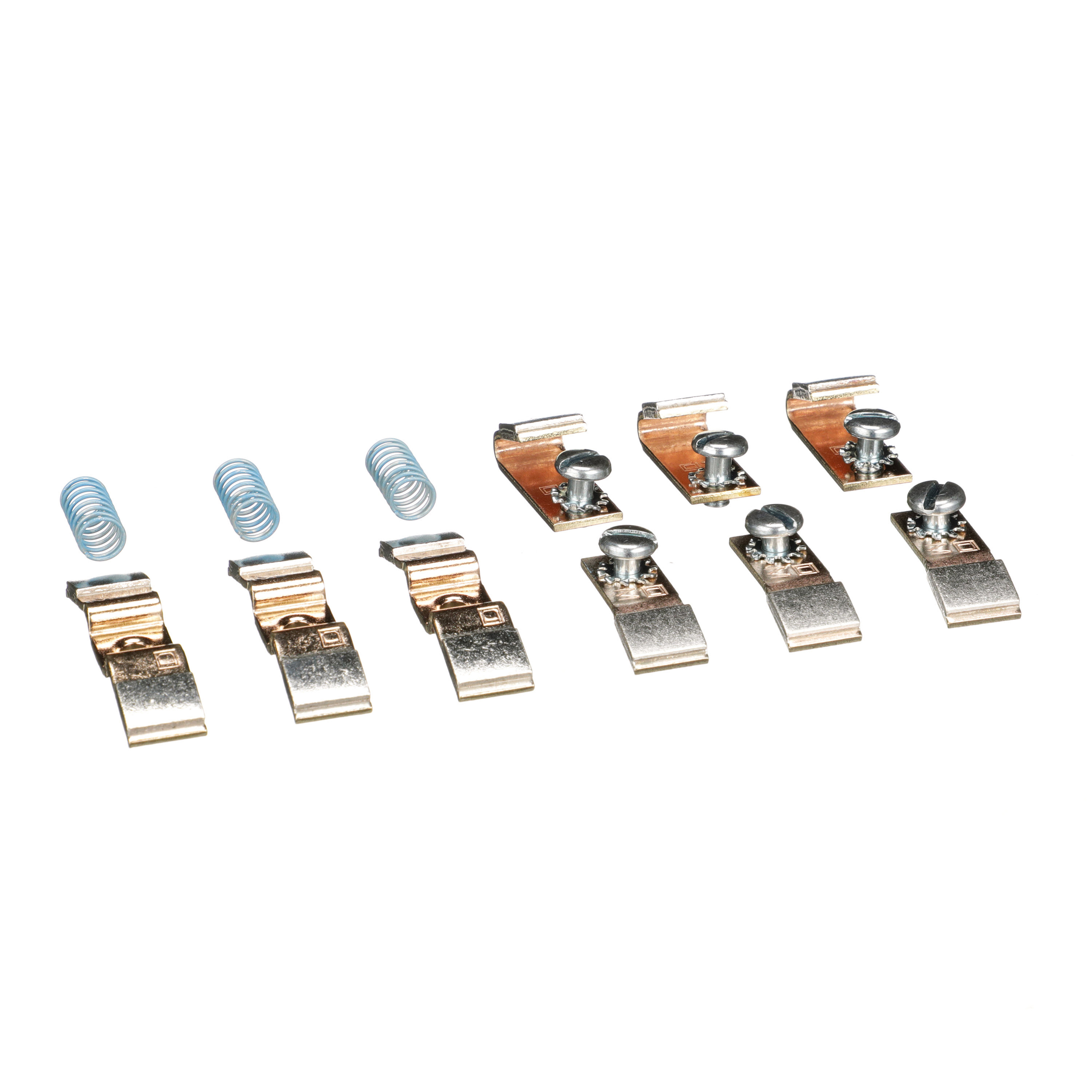

The Square D 9998SL4 is a contact kit designed for 3-pole Size 2 NEMA contactors and starters. This kit is suitable for Type S magnetic contactors and is essential for motor control applications. It is also required for 8903S lighting contactors used in lighting control applications. The contents include both movable and stationary contacts along with necessary hardware for installation. Replacing worn contacts helps to extend the lifespan of contactors and starters, ensuring operational efficiency.

• Compatible with 8502SD contactors, 8536SD starters, and 8903SP lighting contactors.
• Simple installation process with included hardware.
• Supports a maximum voltage rating of six hundred volts.

Product Highlights

This contact kit enhances the functionality of electric motors and lighting systems while ensuring durable and reliable performance.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9998SL4
• Type: Contact kit
• NEMA Size: 2
• Number of Poles: 3 Pole
• Contact Rating: 600 VAC
• Warranty Length: 18 months
• Country of Origin: Mexico
• Weight: 0.29 lb
• Dimensions: 4.5 in depth, 3 in width, 1.5 in height
