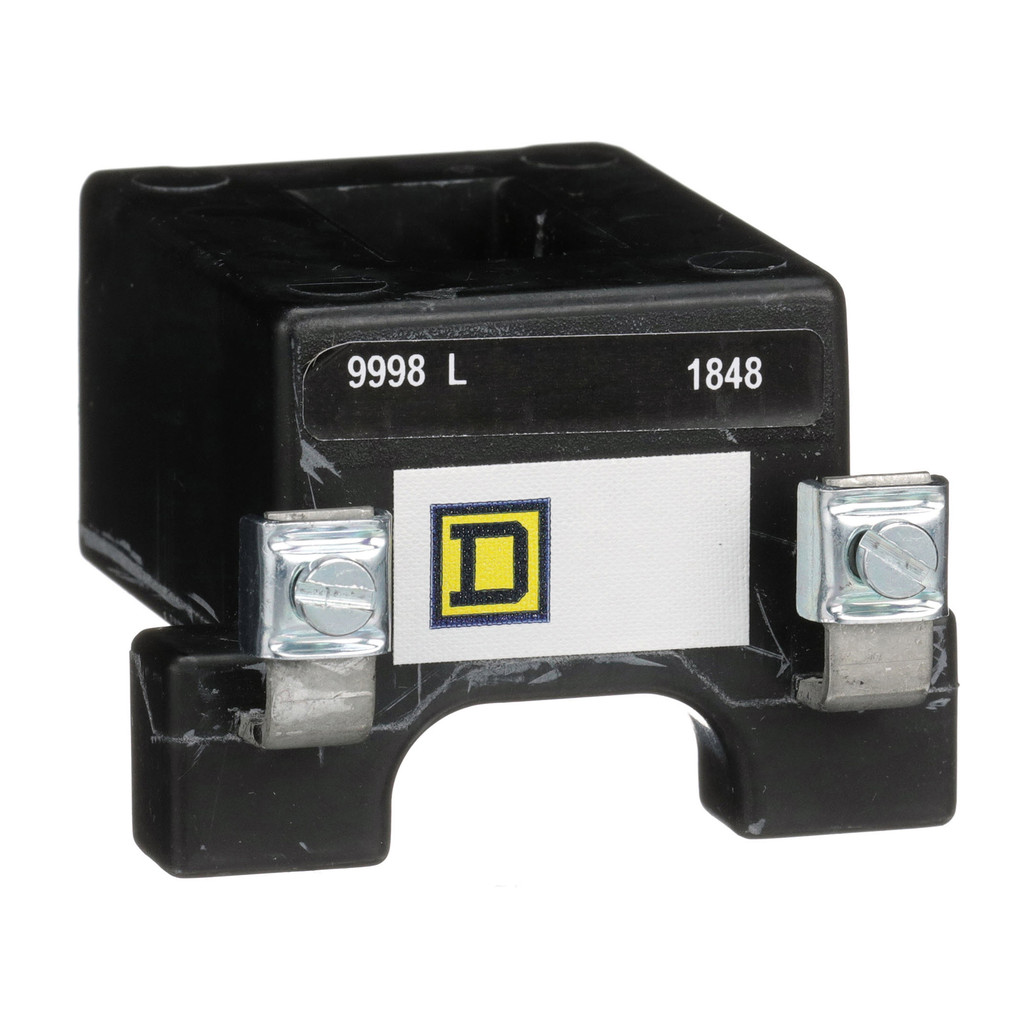

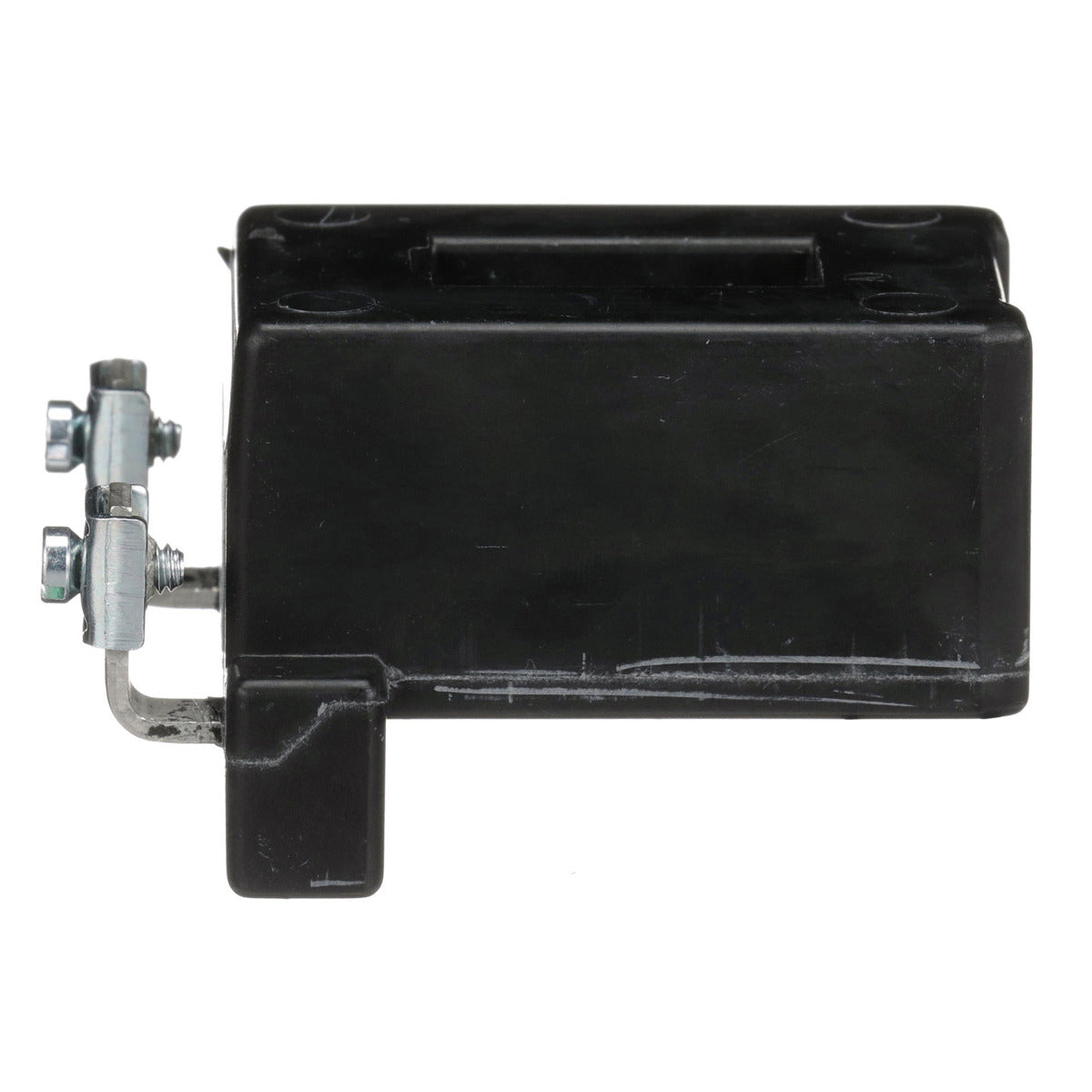

Square D 9998L44 120 Volt 60 Hz Contactor AC Coil 110/120 VAC 50/60 Hz Replacement MPN

Product Description

The Square D 9998L44 is a 120 Volt 60 Hertz Contactor AC Coil designed for lighting control applications. This coil is fitting for 8903L and 8930LX contactors, supporting up to thirty amps for fluorescent loads and twenty amps for tungsten lighting loads. Users can quickly replace the coil, which adds to the longevity of the contactor and saves on replacement costs.

• Rated for 110/120 VAC with a frequency of 50/60 Hz
• Features screw clamp connections for easy wiring
• Fully encapsulated coil for enhanced protection

Product Highlights

This replacement coil is essential for maintaining effective control of lighting systems.

Product Information

Standard Information

• Catalog Number: 9998L44
• Brand: Square D

Technical Specifications

• Coil Voltage: 120 at 60 Hz / 110 at 50 Hz VAC
• Inrush Power: 150 VA
• Average Sealed Consumption: 30 VA
• Height: 2.38 inches
• Width: 2.11 inches
• Depth: 1.46 inches
• Country of Origin: Mexico
• Warranty Length: 18 months
