Square D 9998DA2V09 Contactor Definite Purpose Replacement Coil 220240VAC 5060Hz For 8910DPA 50A And 60A Contactors 2 And 3 Poles

Product Description

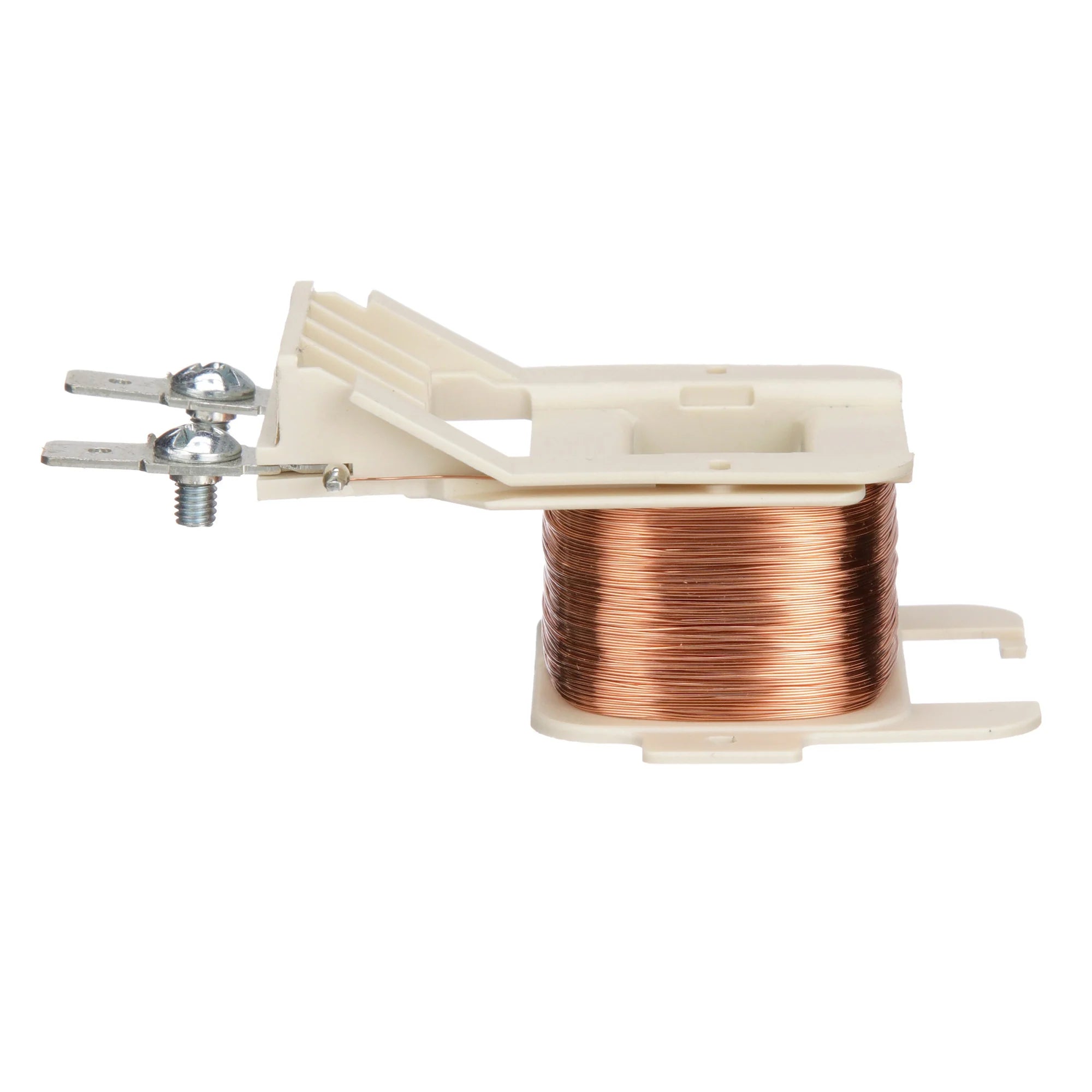

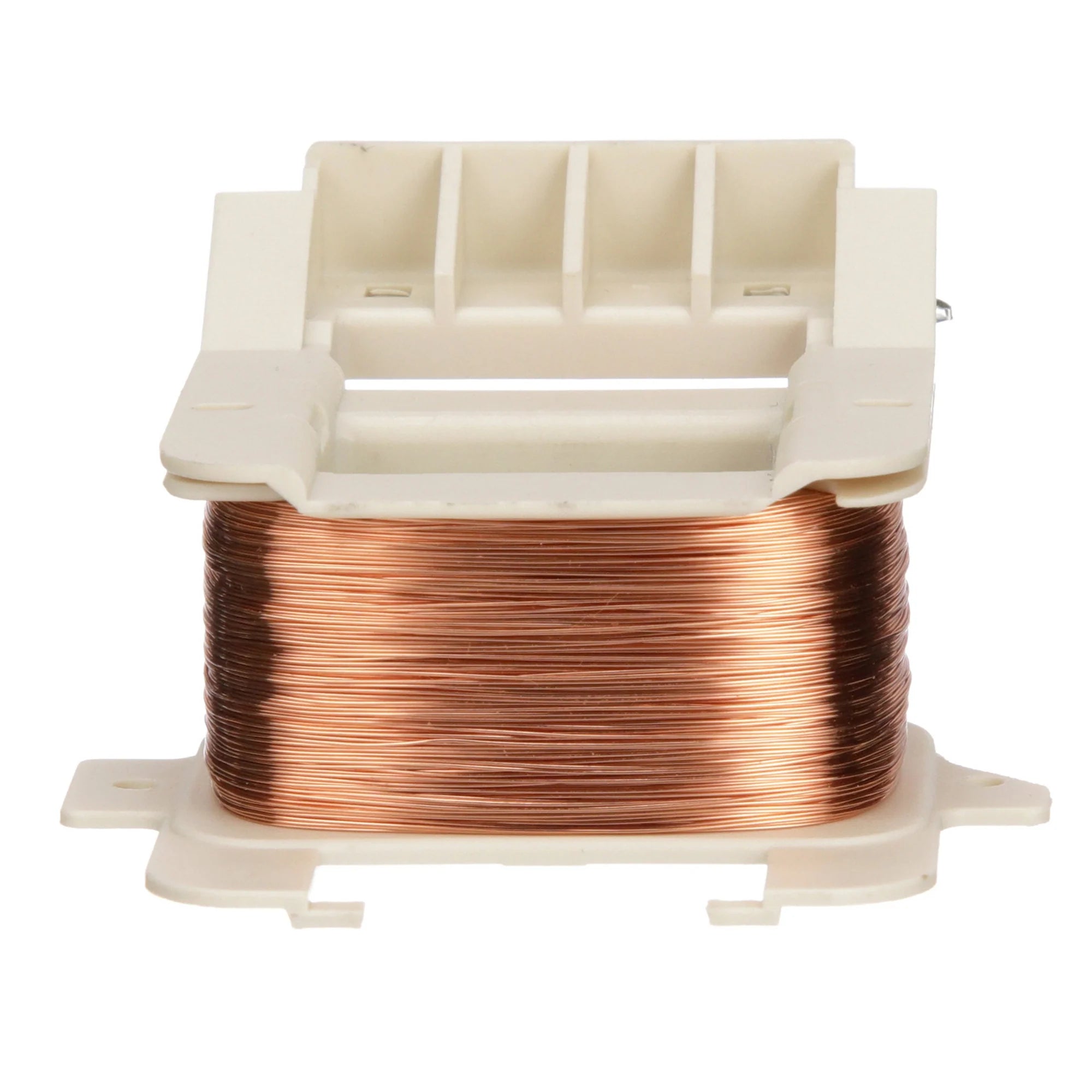

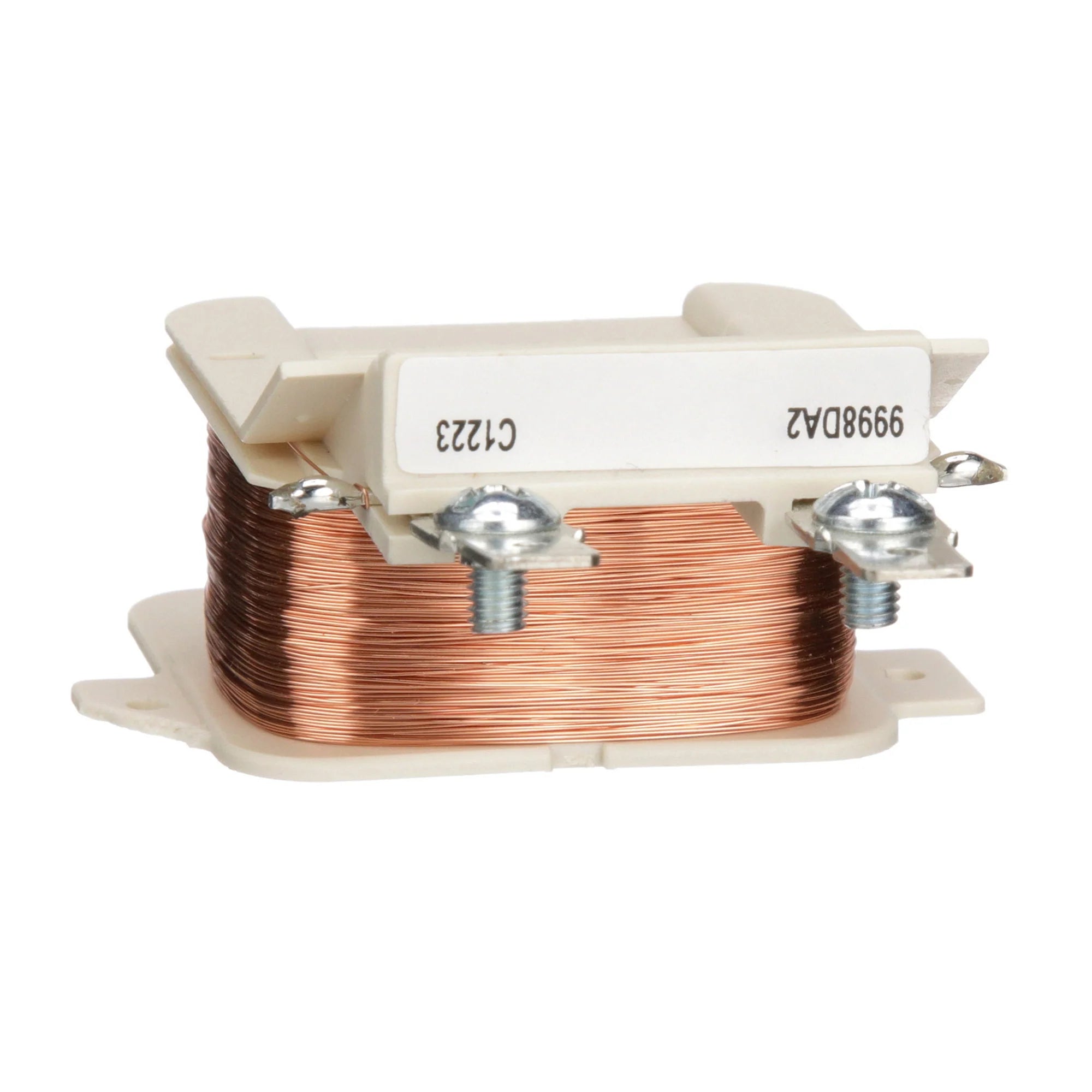

The Square D 9998DA2V09 is a replacement coil designed for use in definite purpose magnetic contactors. It is suitable for heating, air conditioning, and refrigeration applications, ensuring reliable operation in various environments. This coil operates at a voltage of 220 to 240 volts AC and is compatible with 8910DPA contactors rated for 50 to 60 amps. This coil is UL Listed and CSA Certified, providing peace of mind in safety and compliance.

• Compatible with Square D 8910DPA contactors.
• Rated for 220 to 240 VAC operation.
• UL Listed and CSA Certified for safe use.

Product Highlights

This replacement coil features a compact design with a height of three point two seven inches, width of two point five six inches, and depth of three point six seven inches.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9998DA2V09
• UPC: 785901081456
• GTIN: 00785901081456
• Warranty Description: Contractual Warranty: 18 months
• Country of Origin: Mexico
• Item Type: Coil
• Inrush Power: 109 VA
• Average Sealed Consumption: 10 VA
