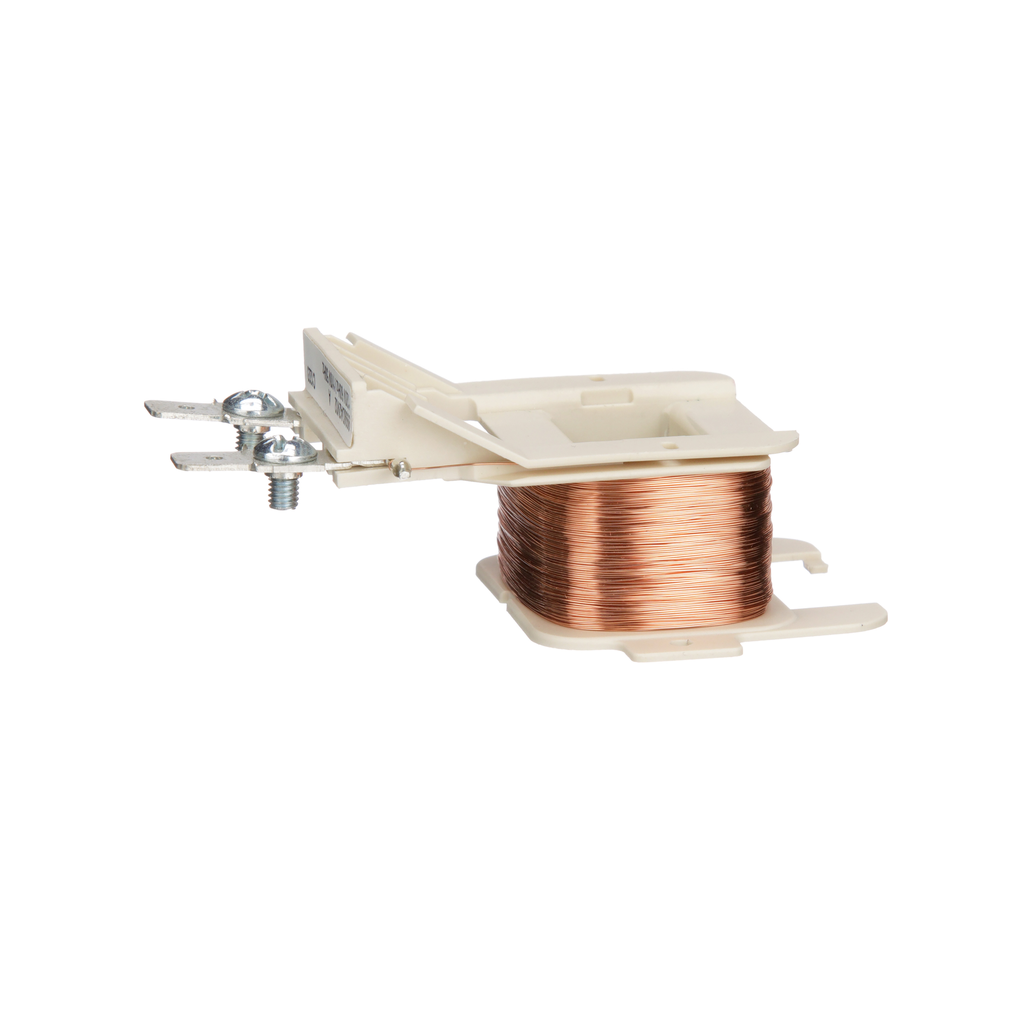

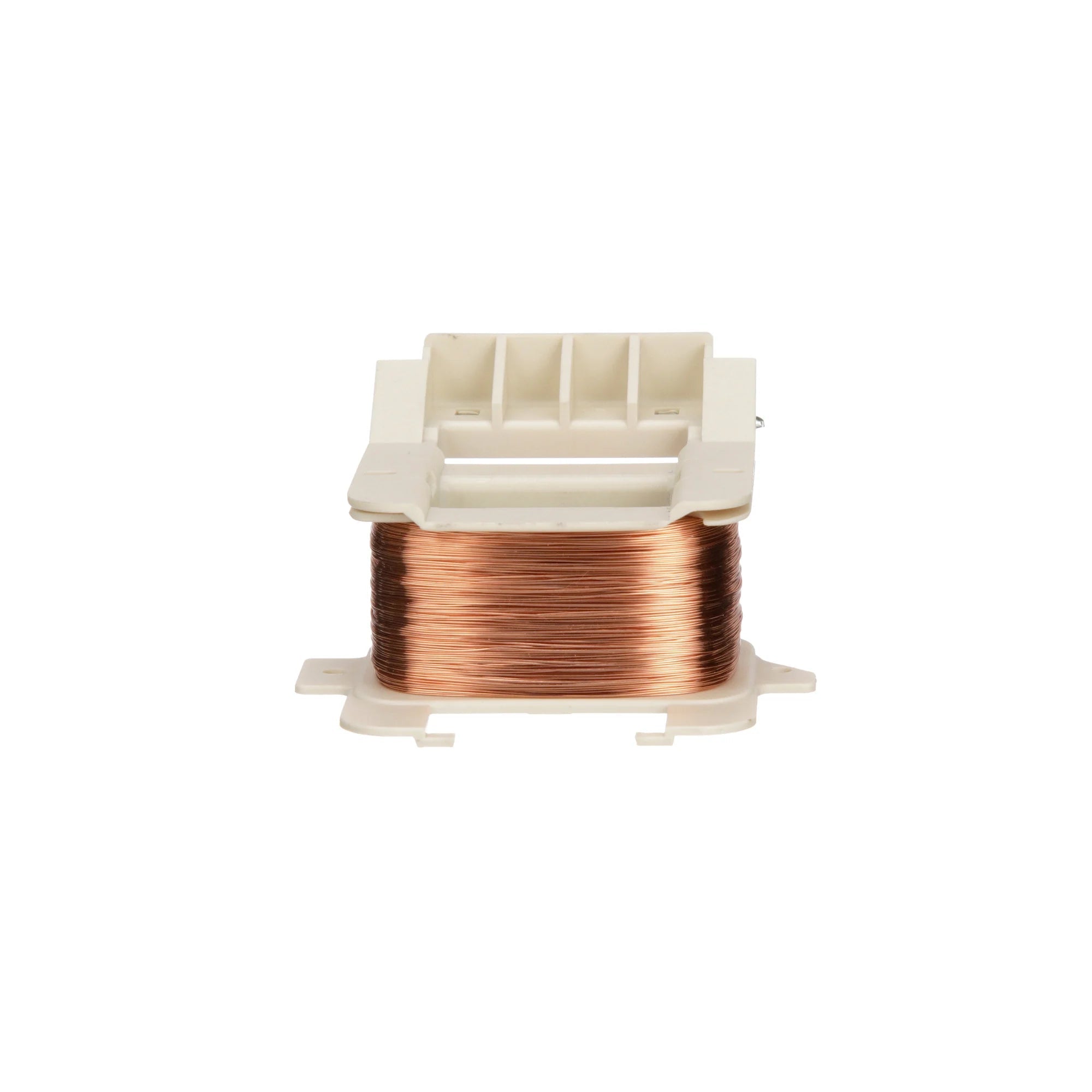

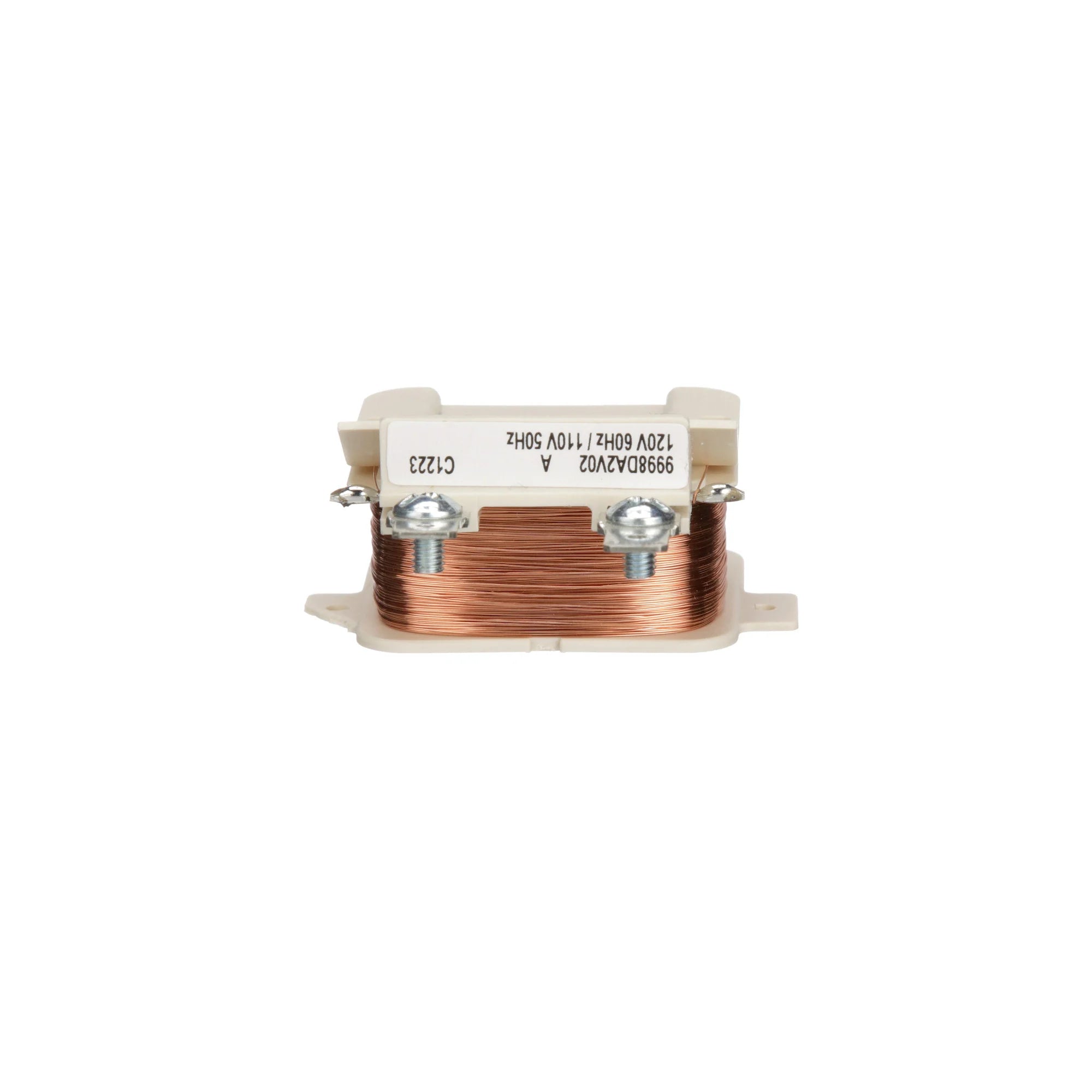

Square D 9998DA2V02 120 Volt 60 Hz Contactor AC Coil

Product Description

The Square D 9998DA2V02 is a contactor AC coil designed for use in heating, air conditioning, and refrigeration applications. It is a part of the definite purpose magnetic contractor series, specifically designed to accommodate current ratings of up to 120 amperes resistive and 50 HP at 600 VAC. This coil replaces the one used in 8910DPA5 or 8910DPA6 contactors rated at fifty or sixty amperes with two or three poles.

• Current ratings up to 120 amperes
• UL listed and CSA certified
• Compact design for easy installation

Product Highlights

This replacement coil is available for various coil voltages and has a power consumption rate of 10 VA while starting. It operates effectively at both 110 and 120 VAC at fifty and sixty Hertz. The dimensions of the coil are three point twenty-seven inches tall, two point fifty-six inches wide, and three point sixty-seven inches deep.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D
• Warranty: 18 months contractual warranty

Technical Specifications

• Catalog Number: 9998DA2V02
• Coil Voltage: 120@60Hz to 110@50Hz VAC
• Depth: 3.67 inches
• Height: 3.27 inches
• Width: 2.56 inches
• GTIN: 00785901081449
• Country of Origin: China
• RoHS URL: RoHS Compliance
