Square D 9991UE1 Sheet Steel NEMA 1 Contactor/Starter Relay Enclosure

Product Description

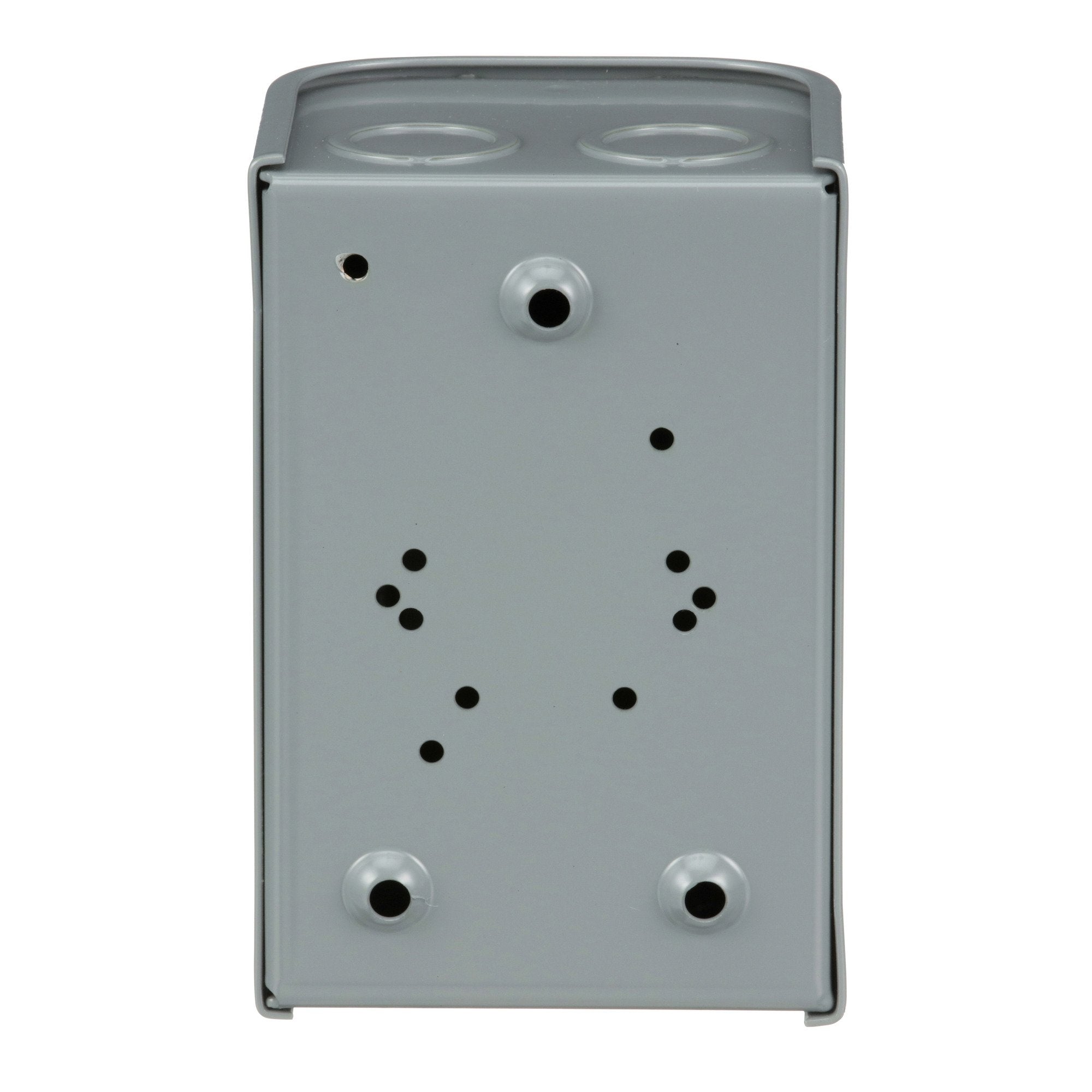

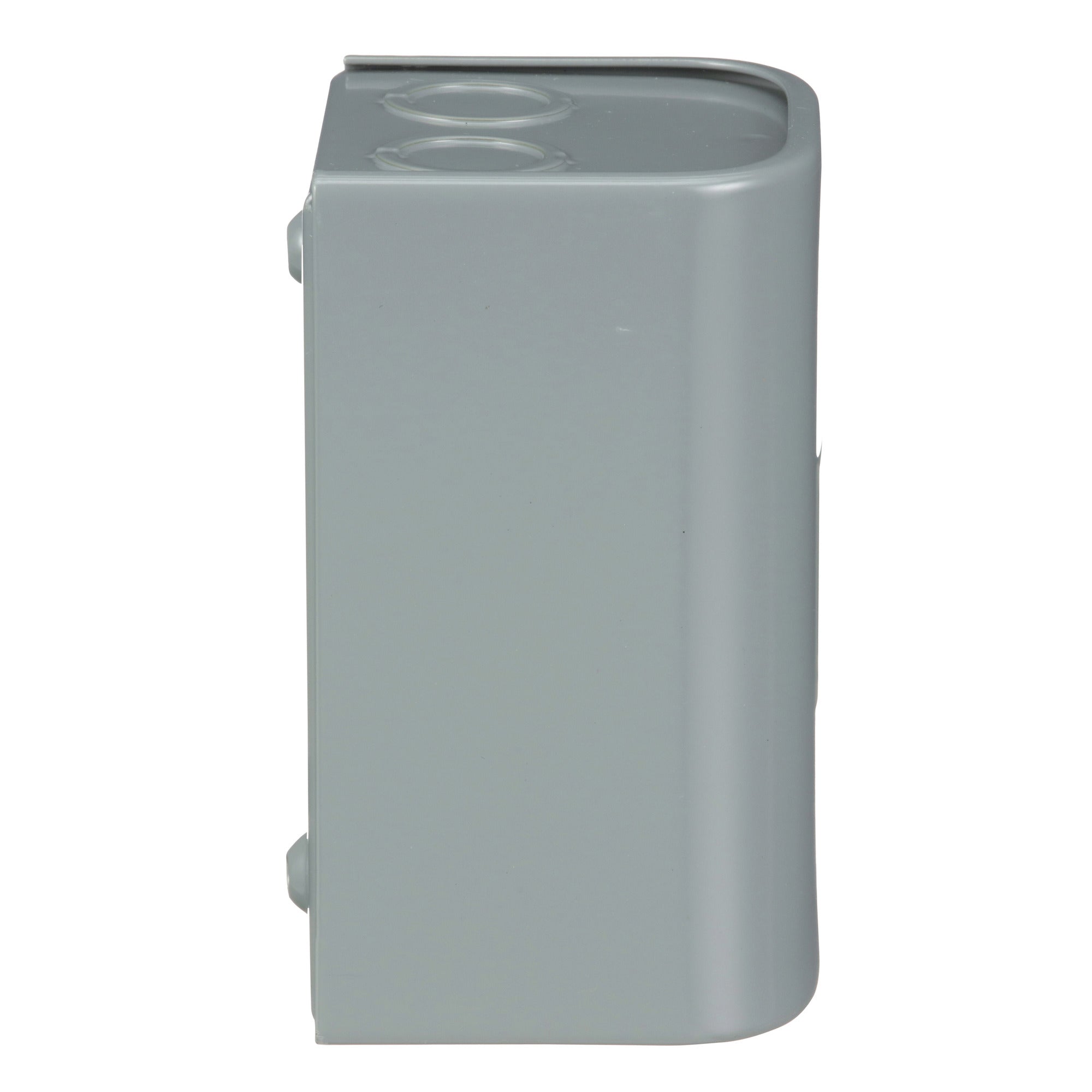

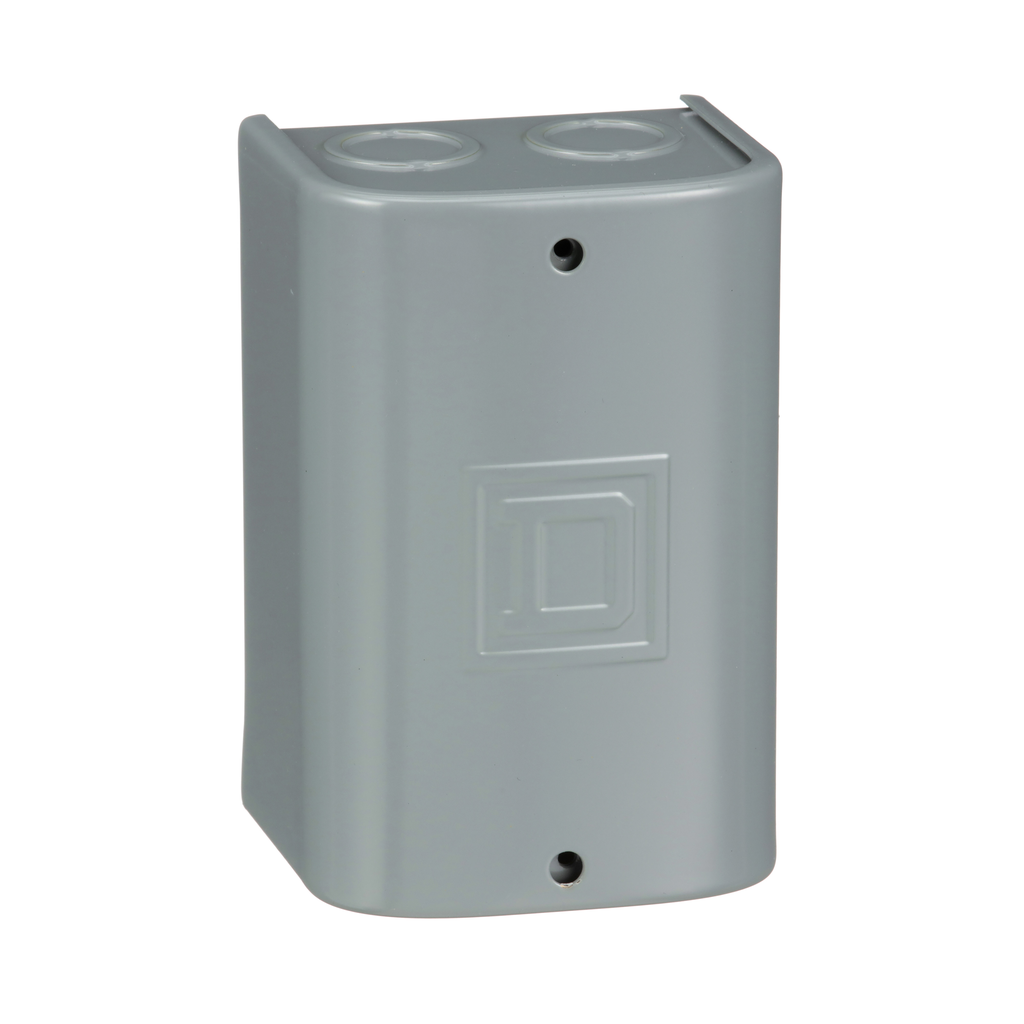

The Square D 9991UE1 is an enclosure designed specifically for housing the 8501C open power relays. This product features a solid sheet steel construction and has a NEMA 1 rating, making it suitable for indoor environments. The enclosure is painted grey for added durability and aesthetics. It comes predrilled, streamlining the assembly process of power relays. The dimensions of the enclosure are five point two eight inches tall, three point six three inches wide, and three point three one inches deep.

• Made for 8501C open power relays
• NEMA 1 rated for indoor use
• Dimensions: 5.28 inches tall, 3.63 inches wide, 3.31 inches deep

Product Highlights

The Square D 9991UE1 enclosure provides reliable housing for power relays.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9991UE1
• Enclosure Material: Steel
• Rated Voltage: 600-600 Volt
• Contact Rating: 30 A
• Height: 5.28 inches
• Width: 3.63 inches
• Depth: 3.31 inches
• Warranty: 18 months
