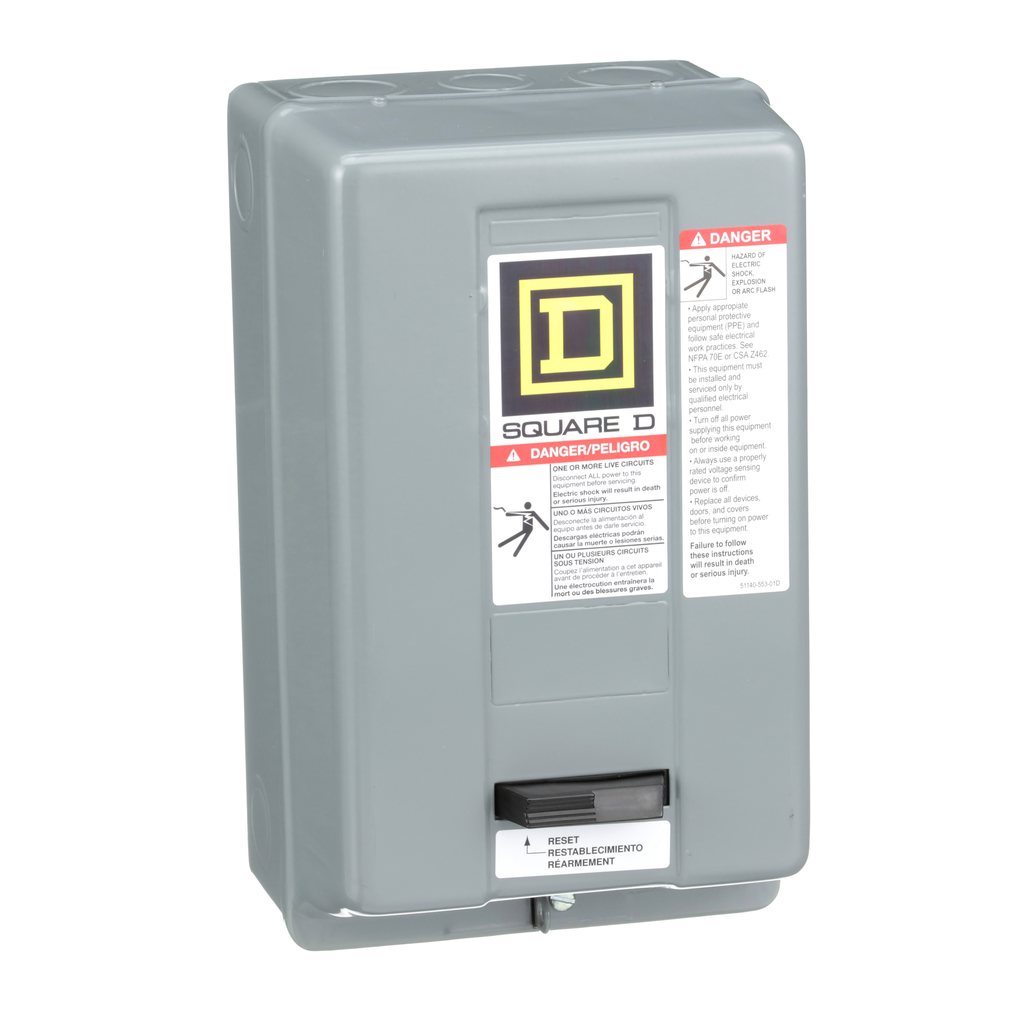

Square D 9991SCG8 Enclosure NEMA 1 for Sizes 00, 0, 1

Product Description

The Square D 9991SCG8 is an enclosure used for non-reversing Type S NEMA motor starters. This enclosure is specifically made for NEMA sizes 00, 0, and 1 starters. It has a NEMA 1 rating and is suitable for indoor use. The enclosure is constructed from painted grey sheet steel for durability and protection. It measures ten inches tall, five point six inches wide, and five point nine eight inches deep. This design ensures compatibility with various Square D products.

• Constructed from durable sheet steel
• Compatible with Type S NEMA motor starters
• Includes mounting screws for easy installation

Product Highlights

This enclosure is certified by CSA, ensuring compliance with industry standards. It provides a safe housing for electrical components and is ideal for motor control applications.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Height: 10.00 inches
• Width: 5.98 inches
• Depth: 5.55 inches
• NEMA Rating: NEMA 1
• Applications: Type S Non-Reversing Starters
• Warranty Length: 18 months
• Country of Origin: Mexico
• UPC: 785901759072
