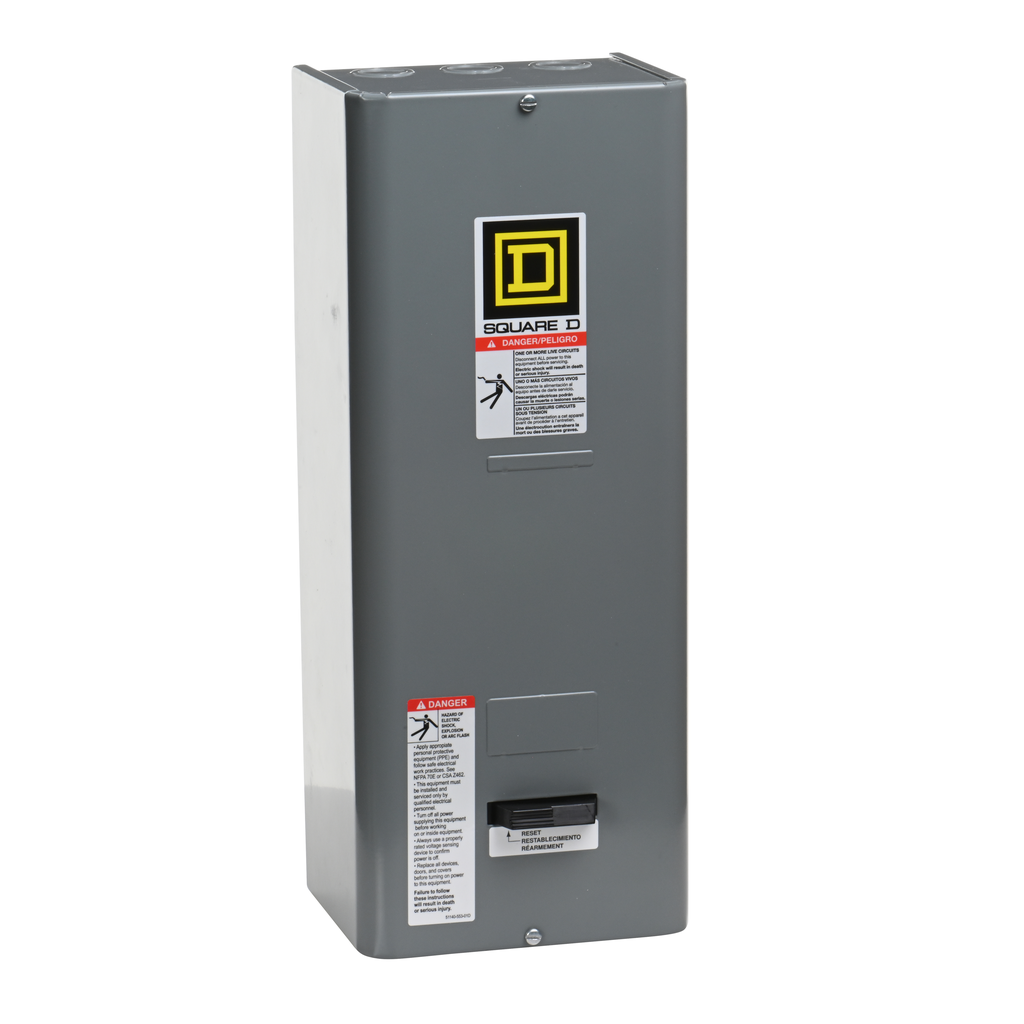

Square D 9991SCG1 6.34 x 5.19 x 15.88 Inch NEMA 1 Contactor/Starter Enclosure

Product Description

The Square D 9991SCG1 is an industrial-grade NEMA 1 contactor and starter enclosure designed for use with non-reversing magnetic contactors. This enclosure supports heating loads, capacitors, transformers, and electric motors when overload protection is provided separately. It is suitable for Type S non-reversing magnetic contactors and is ideal for motor control applications.

• Dimensions: 15.88 inches tall, 6.34 inches wide, and 5.19 inches deep
• Comes standard with a fuse block
• NEMA 1 rated, made from painted grey sheet steel

Product Highlights

This enclosure facilitates the field addition of Class 9999 control units and protects against various environmental conditions. A separate reset closing plate is required for certain applications, ensuring safety and operational efficiency.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9991SCG1
• Country of Origin: Mexico
• Warranty Description: 18 months
• Product UPC: 785901080657
• GTIN: 00785901080657
• Item Type: Enclosure
• Applications: Suitable for SAO, SBO, SCO series contactors
• NEMA Size: 0, 1
