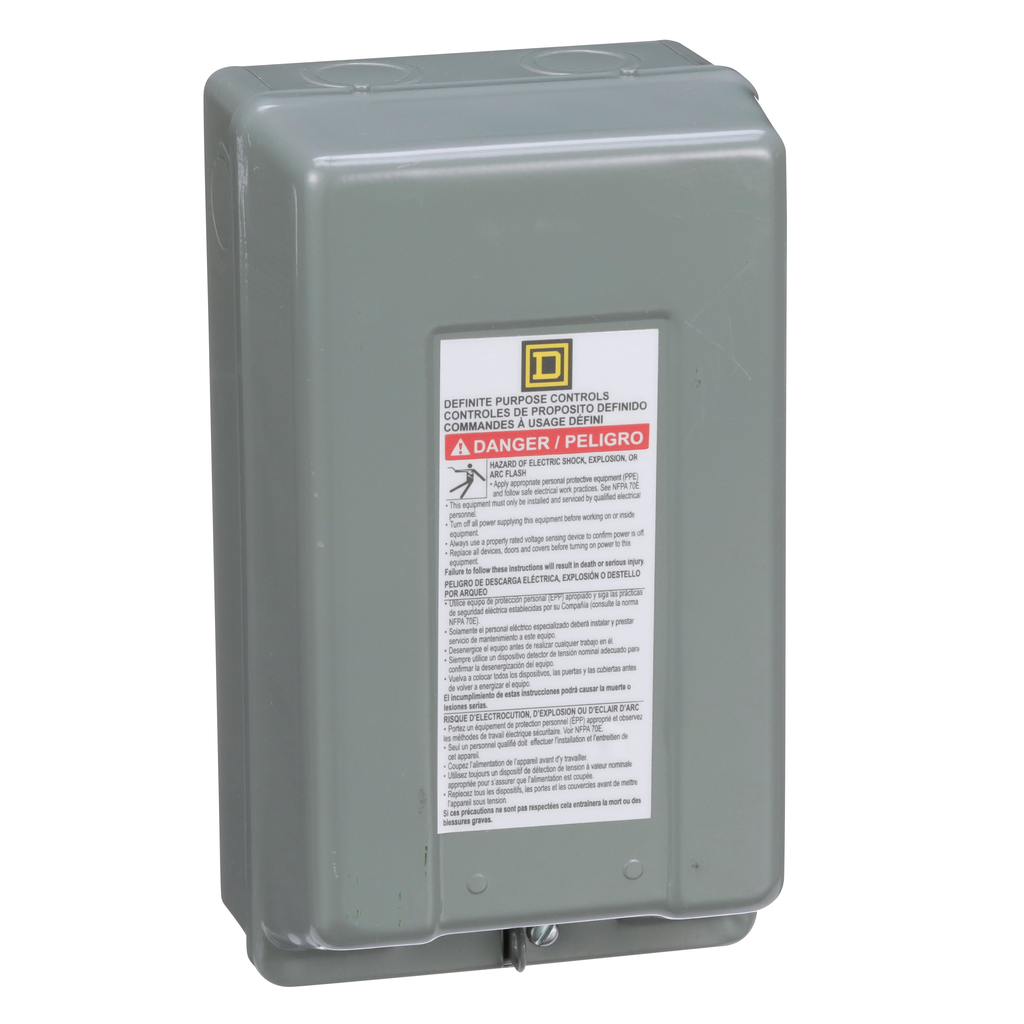

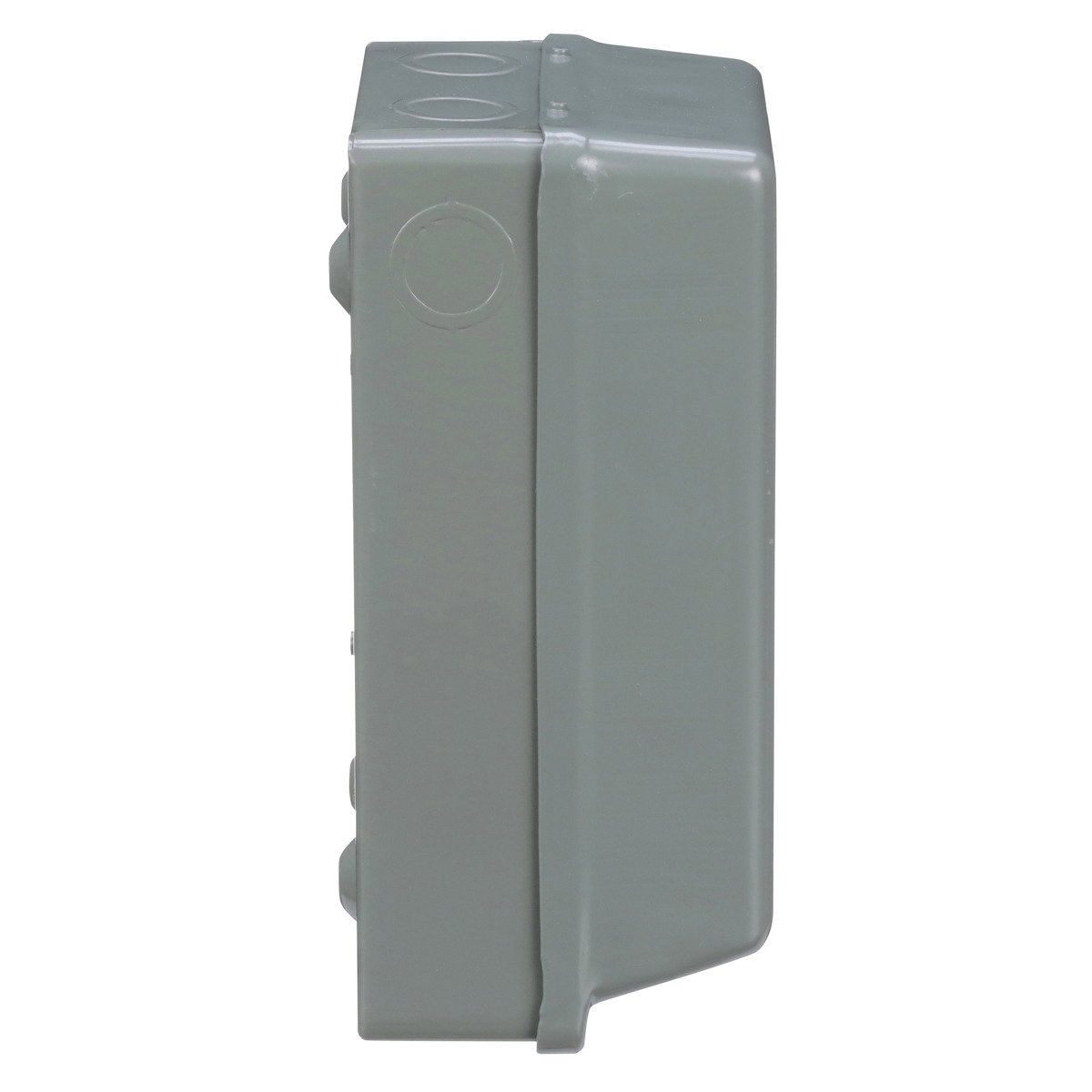

Square D 9991DPG1 8910DP/DPA Definite Purpose Contactor Enclosure 20A to 40A NEMA 1

Product Description

The Square D 9991DPG1 is a NEMA 1 rated enclosure designed for housing the 8910DP and 8910DPA definite purpose contactors, which operate within a current range of twenty to forty amps. This robust sheet steel enclosure measures eight and a half inches in height, four point eight five inches in width, and four point zero three inches in depth. It uses four number ten screws for secure mounting. The enclosure is certified by CSA, ensuring quality and safety standards.

• Compatible with 8910DP and 8910DPA contactors rated from 20A to 40A.
• Constructed from durable grey painted sheet steel.
• NEMA Type 1 rating suitable for indoor applications.

Product Highlights

This enclosure protects contactors from dust and moisture. It is suitable for various industrial applications where electrical connections are necessary.

Product Information

Standard Information

• Catalog Number: 9991DPG1
• Manufacturer: Schneider Electric

Technical Specifications

• Item Type: Enclosure
• Width: 4.85 inches
• Depth: 4.03 inches
• Height: 8.5 inches
• Weight: 2.52 pounds
• UPC: 785901116769
• GTIN: 00785901116769
• Warranty: 18 months
