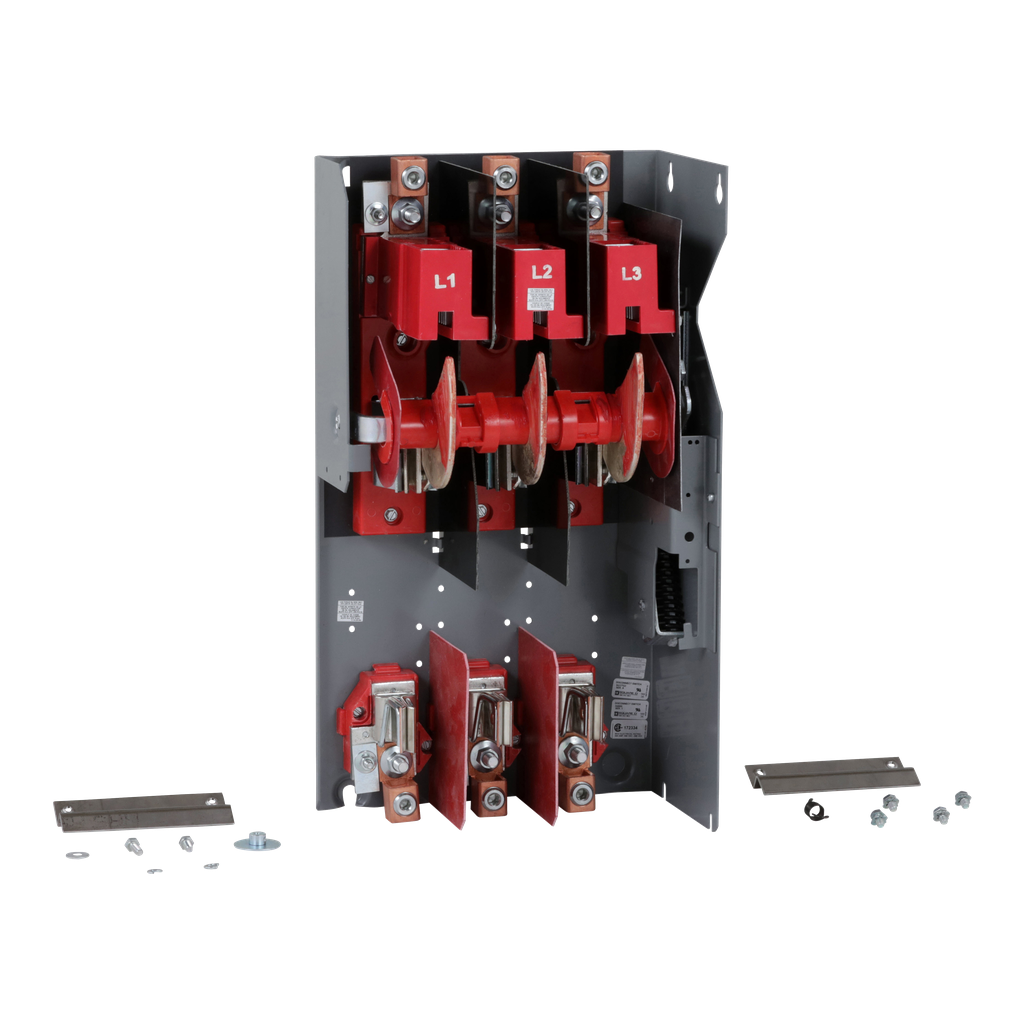

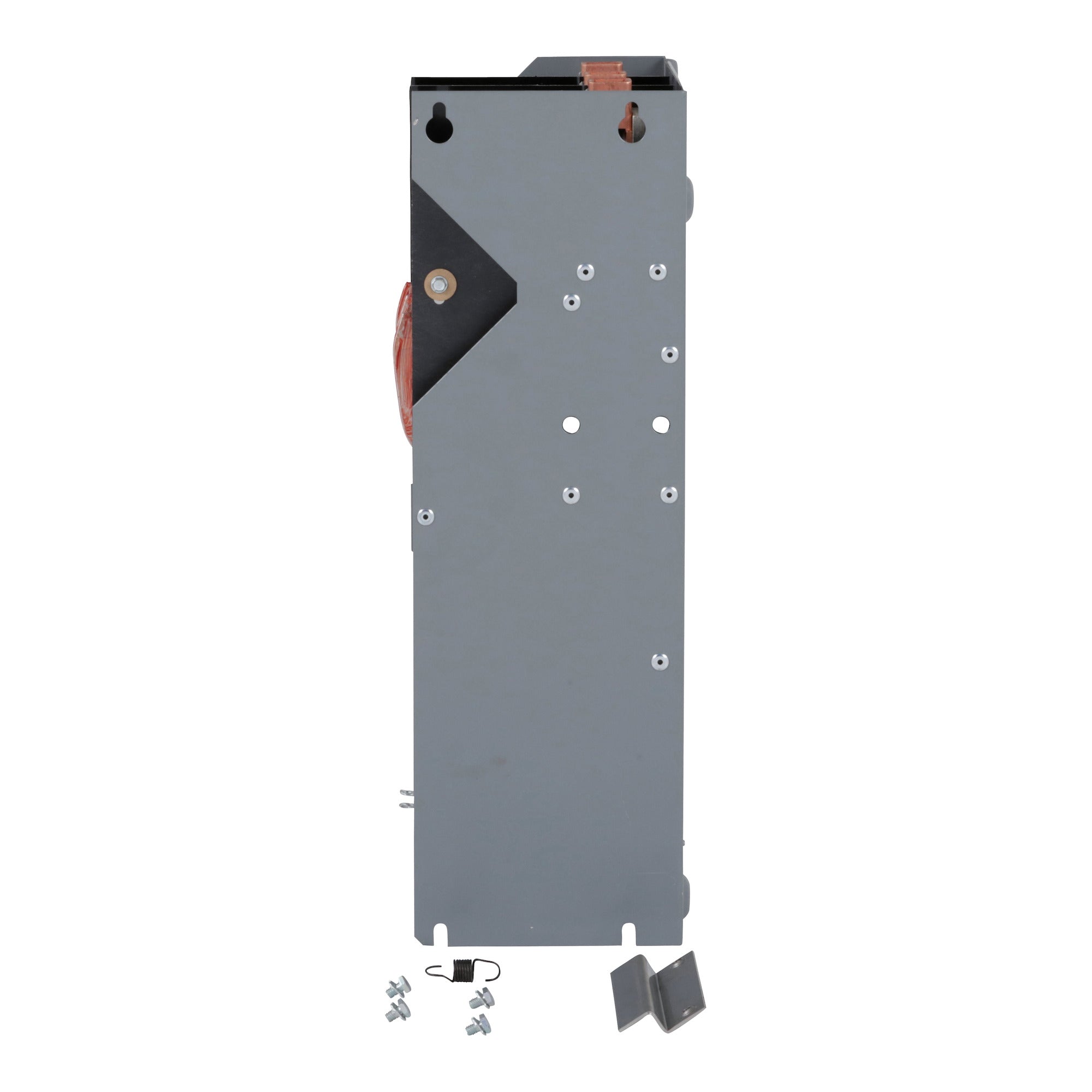

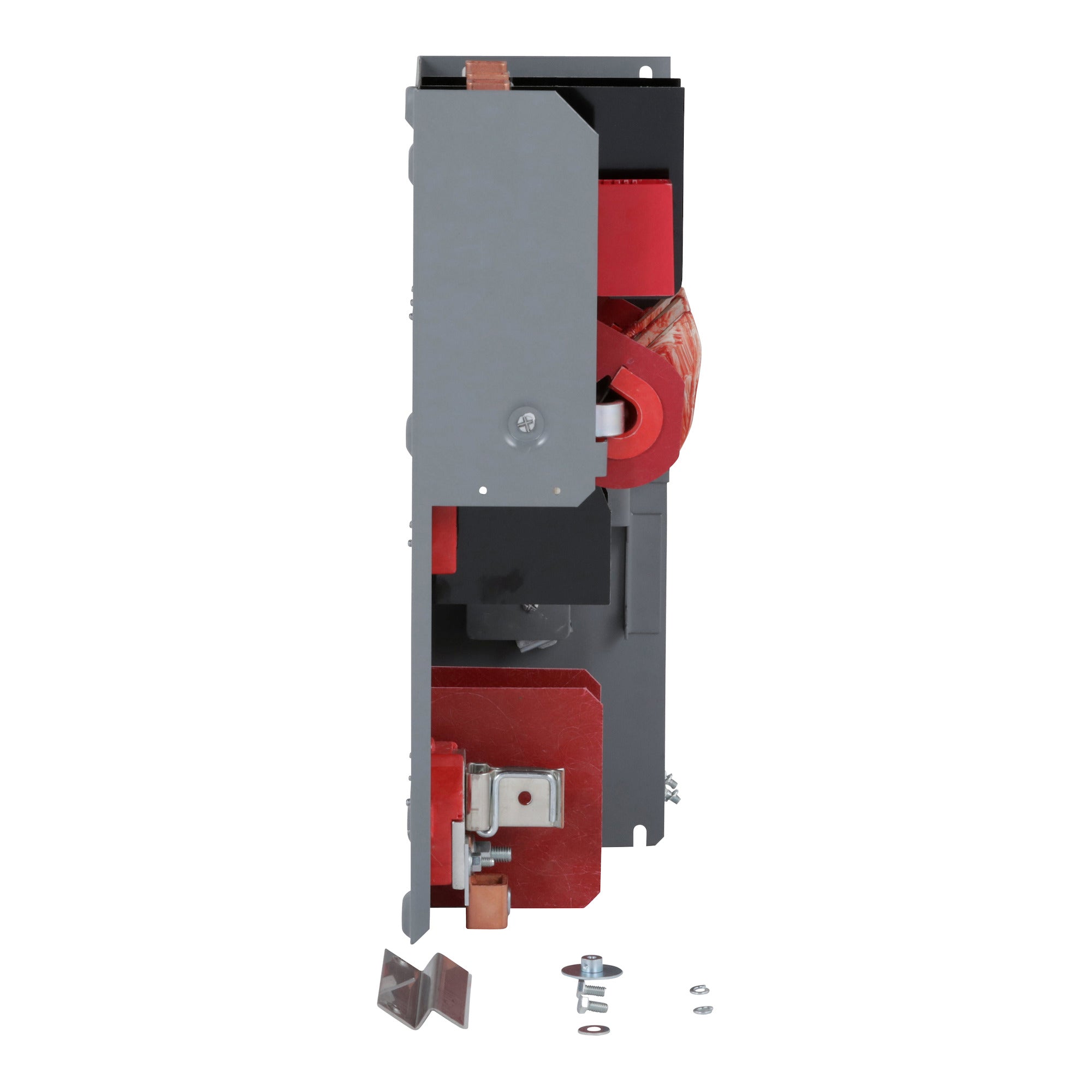

Square D 9422TG2 400 Amp 600 VAC NEMA Disconnect Switch

SKU: 9422TG2
Availability: Out Of Stock
$4,687.50
$4,687.50
Manuals:
LTL Delivery

This product weighs 809 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The Square D 9422TG2 is a disconnect switch designed for control panel installations, featuring a rated current of four hundred amps and a voltage of six hundred VAC. This switch is compatible with 9422A handle operators and 9423 door-closing mechanisms. It accepts Class H, J, K, or R fuses and is built for right flange mounting.

  • Compatible with Class H, J, K, or R fuses
  • Mounting range of eleven point thirty-eight inches
  • Switch rated for up to seventy-five horsepower

Product Highlights

The switch is UL Component Recognized and CSA certified, ensuring reliable performance in various applications.

Product Information

Standard Information

  • Brand: Square D
  • Manufacturer: Schneider Electric

Technical Specifications

  • Catalog Number: 9422TG2
  • Type: Disconnect switch
  • Current Rating: 400 Amp
  • Fuse Type: H, J, K, R
  • Trip Type: Class H, K, J and R 400A@250/600V
  • Mounting Type: Flange rod variable depth
  • Certifications: CSA, UL Recognized
  • Country of Origin: United States
