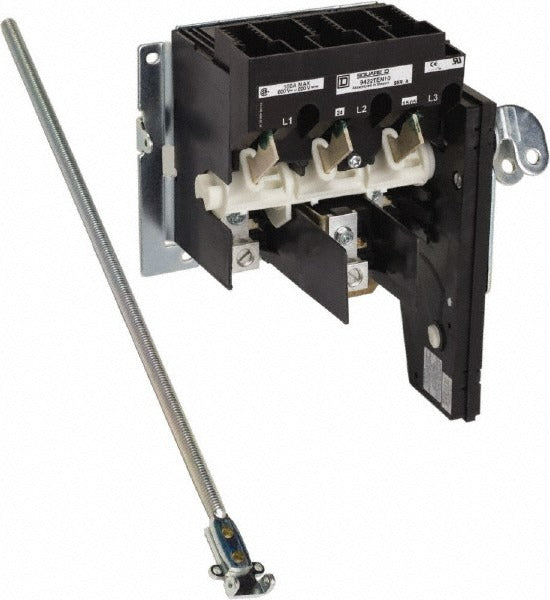

Square D 9422TEN10 Cam Disconnect Switch 100A 600VAC

Product Description

The SQUARE D 9422TEN10 is a 3-pole, non-fused cam disconnect switch rated for 100 amps at 600 volts AC. It ships in an open enclosure configuration and is designed for industrial and commercial power distribution applications where a reliable means of disconnecting three-phase electrical loads is required. The switch handles up to 25 horsepower at 208 volts single-phase and includes an operating mechanism and mounting hardware out of the box. Licensed electricians install this type of disconnect during new construction, equipment replacement, and service work on motor-driven systems and other heavy electrical loads.

This disconnect switch is suited for three-phase commercial and industrial installations where NEC-compliant disconnect means are required ahead of motors, HVAC equipment, compressors, or other high-draw loads. The open enclosure style is appropriate for installations inside existing enclosures or electrical rooms where the disconnect is not exposed to the environment. For outdoor or wash-down locations, the 9422TEN10 also carries NEMA 3R, 4, and 4X ratings, making it adaptable across a wide range of installation environments. Operating mechanism and mounting hardware are included, reducing field sourcing time.

Key Features

• 100 amp continuous rating at 600 volts AC
• 3-pole, 3-wire configuration for three-phase circuits
• Non-fused design for use with upstream overcurrent protection
• NEMA 1, 12, 3R, 4, and 4X rated enclosure options
• 25 horsepower capacity at 208 volts single-phase
• Includes operating mechanism and mounting hardware
• Listed to UL File E62922 DIHS2 and CSA LR44199; meets Class 3211 07 standards

Compatibility

Designed as an OEM-style replacement or new-installation cam disconnect switch for three-phase commercial and industrial electrical systems requiring a 100 amp, 600 volt AC non-fused disconnect with 3-pole configuration.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize and lock out the upstream circuit before beginning any wiring or mounting work. Verify that the supply circuit's overcurrent protection is appropriately sized for the load and rated for use with a non-fused disconnect. Confirm enclosure NEMA rating is appropriate for the installation environment before mounting.
