Square D 9422TEF10C Operating Mechanism 100A 600V H K J R Fuseholder

Product Description

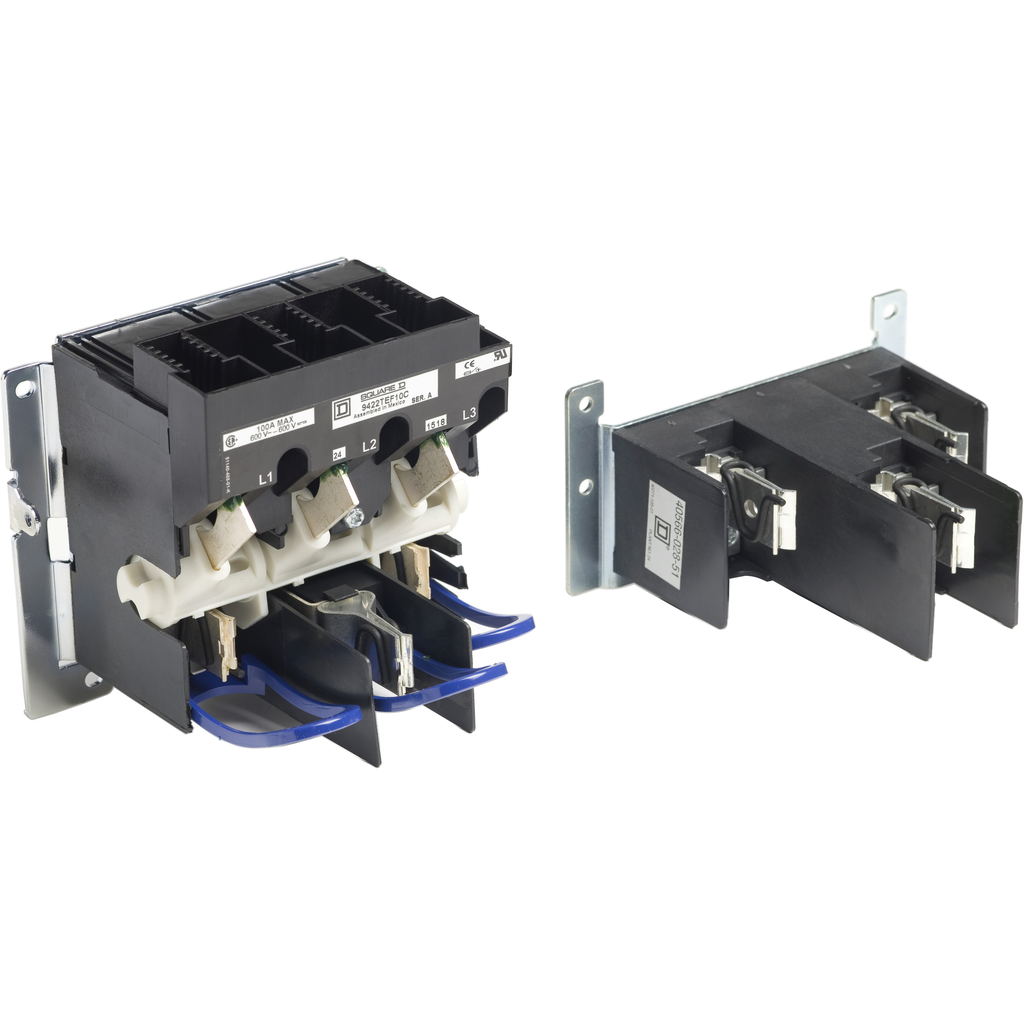

The Square D 9422TEF10C operating mechanism is designed for control panel installations. It is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This mechanism is capable of accepting Class H, J, K, or R fuses only. It has a current rating of 100 Amps at two voltage levels: up to 250 Volts and up to 600 Volts. The mechanism is intended for flange mounting with a variable depth range from six point six three to eighteen inches.

Special features include horsepower ratings of 25 HP at 208 VAC, 30 HP at 240 VAC, 60 HP at 480 VAC, and 75 HP at 600 VAC. It is also rated for 20 HP at 250 VDC and 50 HP at 600 VDC when using two poles. The operating handles or cable operator used with this mechanism are not included and must be ordered separately. Lugs for disconnect switch are rated for wire sizes from #10 to #0 AWG for copper and #6 to #0 for aluminum.

This product meets UL Component recognition and is certified by CSA, ensuring it complies with safety and operational standards in the industry.

• Compatible with 9422A handle operators
• Variable mounting depth from six point six three to eighteen inches
• UL recognized and CSA certified

Product Highlights

This operating mechanism is ideal for applications requiring a reliable and compliant disconnect solution.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9422TEF10C
• Current: 100 Amp
• Voltage Rating: 250 V / 600 V
• Fuse Type: H, J, K, R
• Mounting Type: Flange Cable Variable Depth
• Applications: 25 HP at 208 VAC, 30 HP at 240 VAC, 60 HP at 480 VAC, 75 HP at 600 VAC
• Country of Origin: Mexico
• Warranty: 18 months
