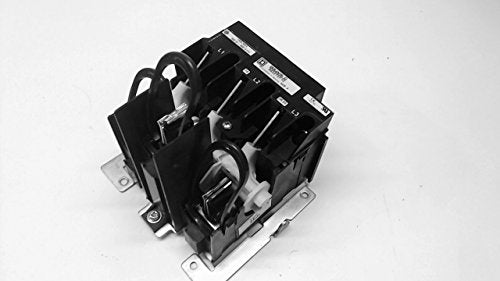

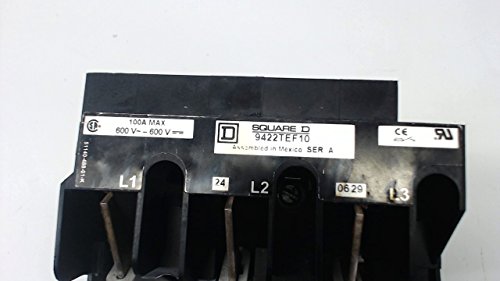

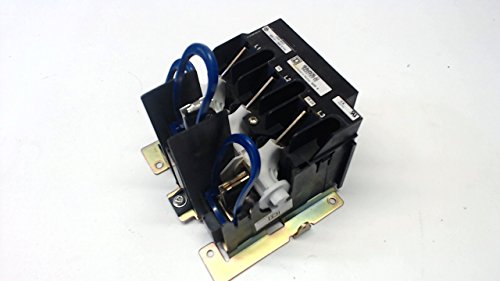

Square D 9422TEF10 100 Amp 600 VAC/VDC Fusible Disconnect Switch

Product Description

The Square D 9422TEF10 100 Amp 600 VAC/VDC Fusible Disconnect Switch ensures secure isolation of electrical circuits. Designed by Schneider Electric, it is ideal for industrial control panel installations. This switch is compatible with 9422A handle operators and 9423 door closing mechanisms, and it accommodates Class H, J, K, or R fuses.

• 100 Amp current rating
• 600 VAC/VDC voltage rating
• Designed for flange mounting

Product Highlights

The Square D 9422TEF10 provides secure isolation for lighting and motor circuits. Its compact and robust design supports easy installation, while its high interrupting capacity ensures added protection. Meeting industry standards for reliability and safety, it is UL and CSA certified.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric
• Current: 100 Amp
• Voltage: 600 VAC/VDC
• Number of Poles: 3

Technical Specifications

• Fuse Types: H, J, K, R

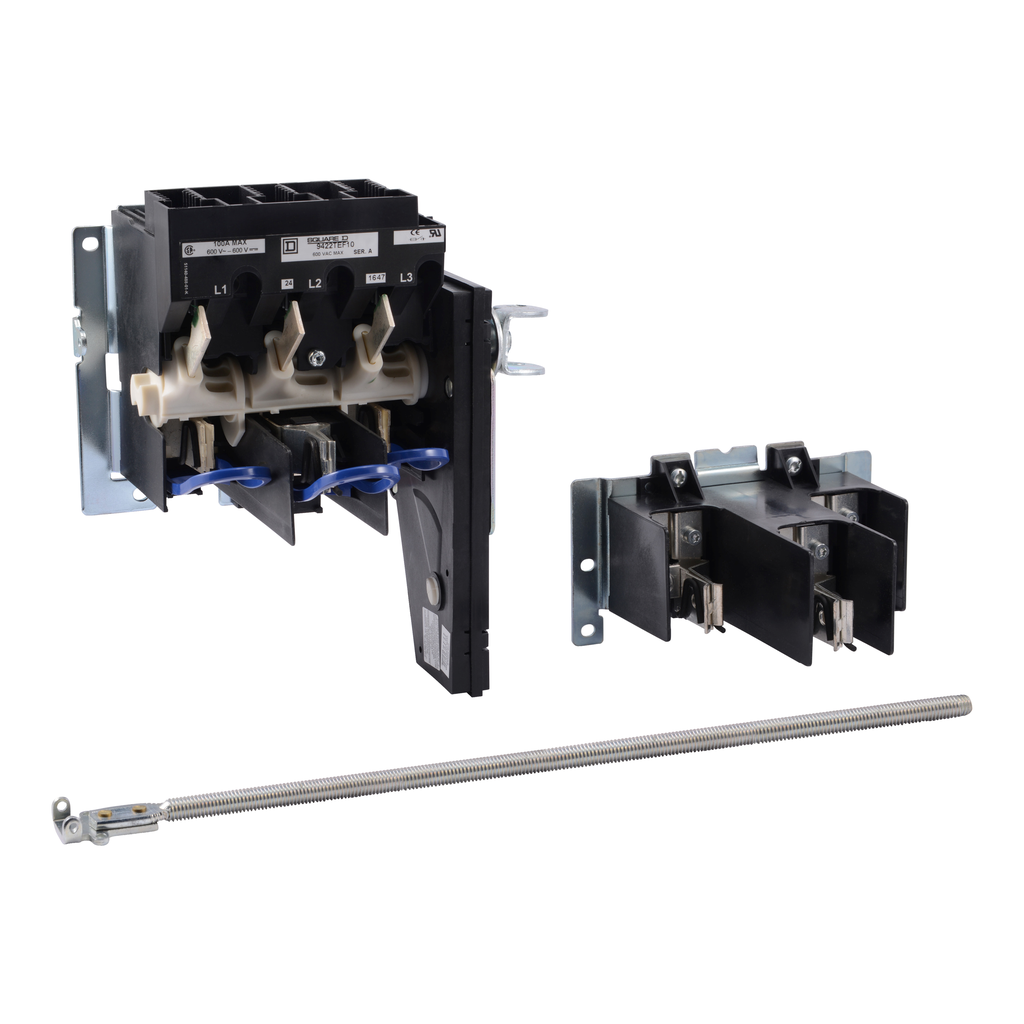

• Mounting Type: Flange Rod Variable Depth
• Mounting Depth: 6.63 to 18.0 inches
• Horsepower Ratings: 25 HP at 208 VAC, 30 HP at 240 VAC, 60 HP at 480 VAC, 75 HP at 600 VAC, 20 HP at 250 VDC, 50 HP at 600 VDC with two poles
• Wire Compatibility: #10 to #0 AWG with copper wire and #6 to #0 with aluminum wire
• Certifications: UL Component Recognized, CSA Certified
• Line Rated Current: 100 A
• Country of Origin: Mexico
• UPC: 785901879831
