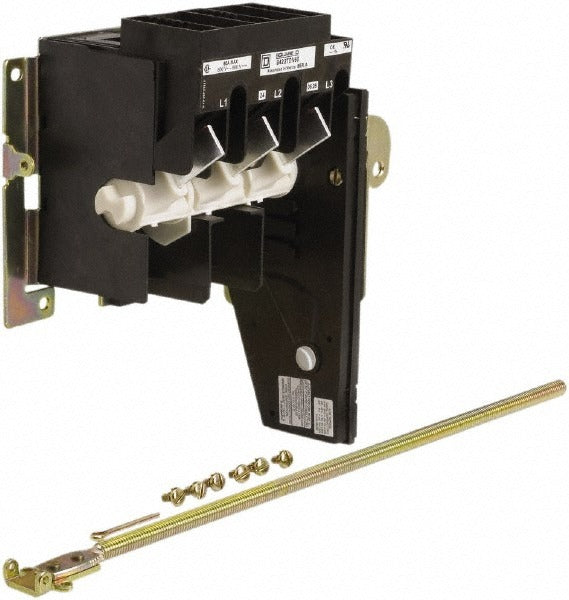

Square D 9422TDN60 Cam Disconnect Switch 60A 600VAC

Product Description

The SQUARE D 9422TDN60 is a non-fused, open-style cam disconnect switch rated for 60 amps at 600 volts AC. It is a 3-pole, 3-wire device designed for use in 3-phase electrical systems where a reliable means of isolation and disconnection is required. The switch ships with an operating mechanism and mounting hardware included. At 15 horsepower at 208 volts single phase, it handles heavy-duty motor loads in industrial and commercial applications. Licensed electricians install this type of disconnect as part of branch circuit and equipment disconnecting means in accordance with NEC requirements.

This cam disconnect switch is suited for commercial and industrial installations where an open-style enclosure is acceptable. It carries NEMA ratings of 1, 12, 3R, 4, and 4X, making it appropriate for a range of environmental conditions from general-purpose indoor use to watertight and corrosion-resistant applications. Typical install scenarios include motor control panels, HVAC rooftop unit disconnects, pump panels, and other 3-phase equipment requiring a manual disconnect point.

Key Features

• 60 amp continuous rating at 600 volts AC
• 3-pole, 3-wire configuration for 3-phase systems
• Non-fused design for use with separately fused branch circuits
• NEMA 1, 12, 3R, 4, and 4X rated enclosure compatibility
• Includes operating mechanism and mounting hardware
• Meets UL File E62922 DIHS2 and CSA LR44199 standards

Compatibility

Designed as an OEM-style replacement cam disconnect switch for 3-phase commercial and industrial electrical systems requiring a 60 amp, 600 volt AC non-fused open disconnect.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the upstream circuit before beginning installation or service. Verify that all load and line connections are secure and that the disconnect is properly mounted before restoring power. Do not exceed the rated amperage or voltage of the device.
